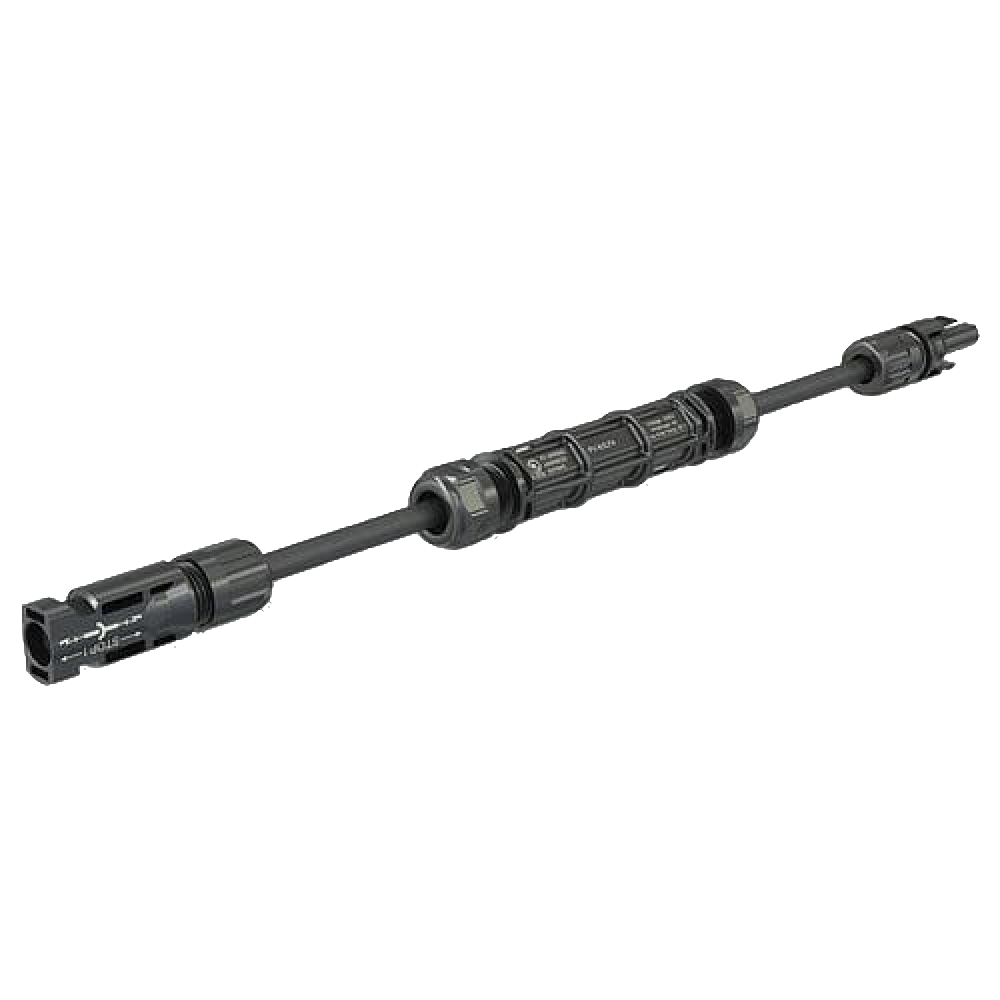

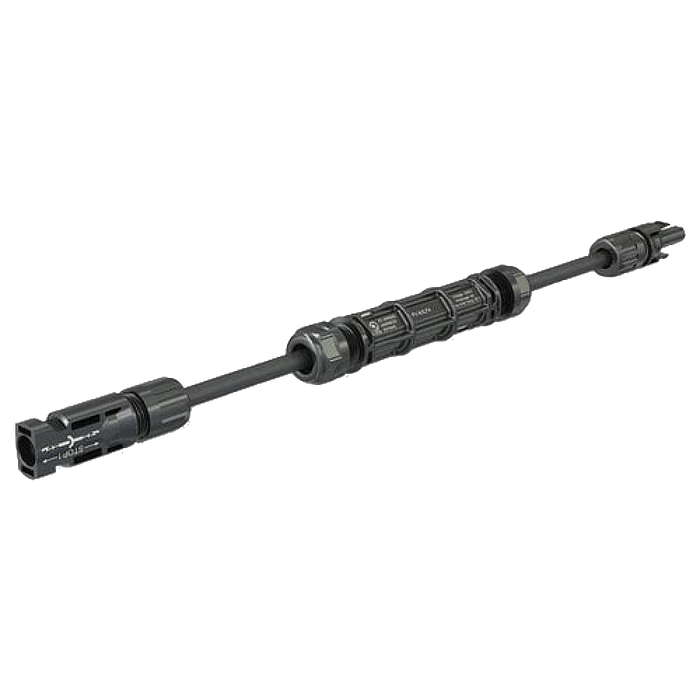

25A Inline Fuse
- Description
- Key Features
- Technical Specifications
The FUSE-25A (INF1500-25A) is a high-performance DC fuse designed to provide reliable overcurrent protection in high-voltage solar PV systems. Rated for 1500 VDC, it is suitable for protecting PV strings and associated equipment in modern commercial and utility-scale installations. With robust construction, IP68 protection, and MC4-Evo2 connectivity, this fuse delivers dependable performance in demanding outdoor environments.
-
25 A DC fuse for solar PV applications
-
1500 VDC rated for high-voltage PV systems
-
High breaking capacity (20 kA) for enhanced protection
-
IP68-rated for outdoor and harsh environment use
-
UV-resistant materials for long-term durability
-
MC4-Evo2 DC connectors for secure, plug-and-play installation
-
Certified to IEC and TÜV standards for safety and compliance
| Specification | Value |
|---|---|
| Product Type | DC Fuse |
| Model | INF1500-25A |
| Rated Current | 25 A |
| Rated Voltage | 1500 VDC |
| Fuse Type | DC |
| Rated Impulse Voltage | 16 kV |
| Breaking Capacity | 20 kA |
| Contact Resistance | < 0.3 mΩ |
| Insulation Material | PPE / PA |
| Flame Class | UL94-V0 |
| Operating Temperature Range | −40 °C to +85 °C |
| Max. Operating Altitude | 2000 m |
| Degree of Protection | IP68 (1 m, 1 h) |
| DC Connection Type | MC4-Evo2 (max. 4 mm²) |
| Cable Length | 500 ± 30 mm |
| Installation | Outdoor, UV resistant (F1) |
| Compliance | TÜV / CE, IEC 62852, IEC 60269-1/6, IEC 62930 |
