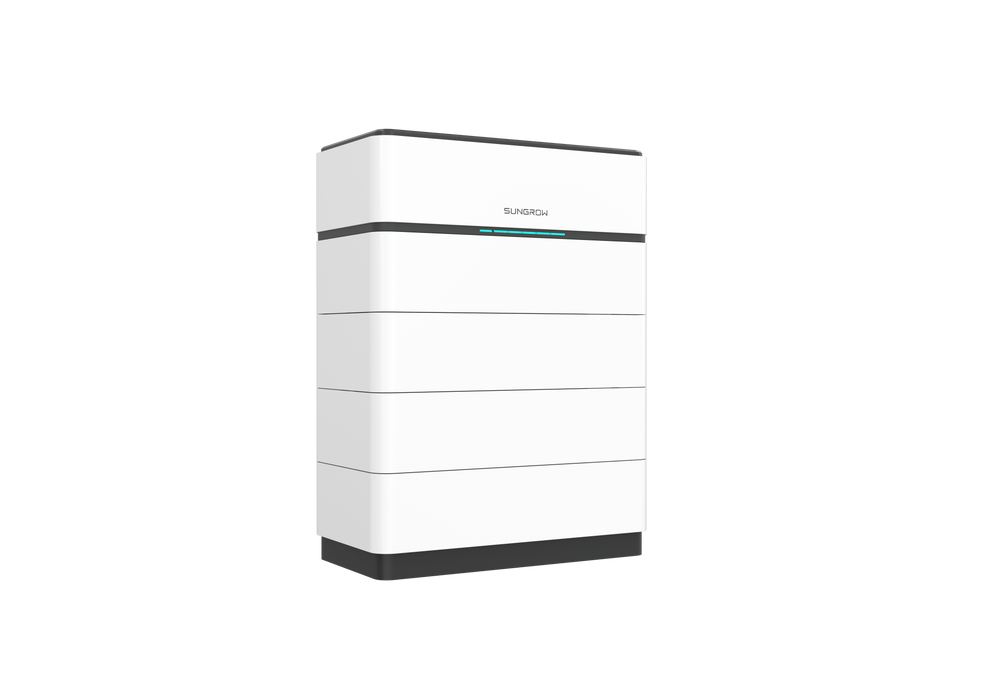

SUNGROW - 5.0KWH RECHARGEABLE LI-ION BATTERY MODULE
- Description
- Key Features
- Technical Specifications
The Sungrow SBH050 is a 5.0 kWh lithium iron phosphate (LFP) battery module designed for use within the modular SBH high-voltage energy storage system. Built for flexibility and long-term reliability, the SBH050 allows systems to be easily scaled by stacking additional modules as energy needs grow. Its plug-and-play design simplifies installation, while advanced battery management ensures safe, efficient performance in residential and light commercial applications.
-
5.0 kWh usable capacity per battery module
-
Stackable modular design for scalable energy storage
-
Lithium Iron Phosphate (LFP) chemistry for enhanced safety and longevity
-
Plug-and-play installation with no inter-module cabling required
-
Designed for high-voltage SBH battery systems
-
Refined battery management for reliable charge and discharge control
-
Suitable for indoor or outdoor installation when installed as part of an SBH system
| Specification | Value |
|---|---|
| Product Type | High-voltage Battery Module |
| Model | SBH050 |
| Battery Chemistry | Lithium Iron Phosphate (LFP) |
| Usable Energy | 5.0 kWh |
| Nominal Voltage | 70.4 V |
| Operating Voltage Range | 59.4 – 80.3 V |
| Nominal Power | 3.52 kW |
| Max. Charge / Discharge Current | 50 A |
| Depth of Discharge | Up to 100% (settable) |
| Weight | 45 kg |
| Installation Method | Stackable (SBH system) |
| Application | Energy storage module (SBH battery system) |
