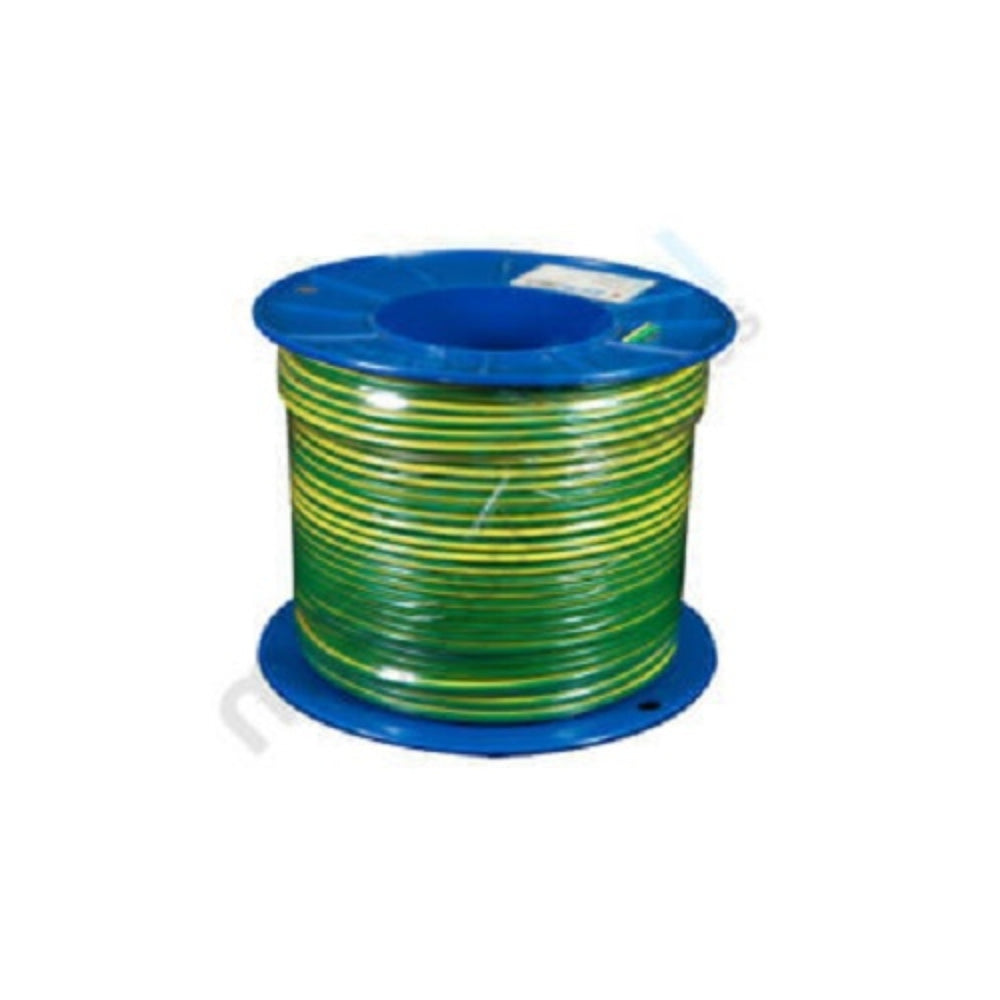

4mm Earthing Cable Yellow/Green (100m Rolls)
SKU EARTHCABLE4MM
In stock: 100
- Description
- Key Features
- Technical Specifications
This 1×4 mm² Earthing Cable is a high-quality, PVC-insulated earth cable designed for reliable earthing and bonding in electrical installations. Made from stranded tinned copper with yellow/green insulation, it complies with AS/NZS 5000.2 standards and RoHS EU directives, making it a safe, durable, and compliant choice for residential, commercial, and industrial projects.
- 4 mm² tinned copper conductor for dependable earthing performance
- PVC insulation — durable and easy to strip during installation
- Yellow/green sheath for clear earth identification
- Rated 450/750 V, 70 °C continuous operation
- RoHS compliant for safer, environmentally responsible wiring
- Supplied in 100 m rolls for convenience on site
- Complies with AS/NZS 5000.2 standard for earthing cables
| Specification | Value |
|---|---|
| SKU / Model | EARTHCABLE4MM |
| Conductor Size | 4.0 mm² |
| Conductor Construction | 52/0.30 mm stranded tinned copper |
| Conductor O.D. | 2.50 mm |
| Insulation Material | PVC |
| Nominal O.D. | 4.30 ±0.20 mm |
| Insulation Thickness (Nom/Min) | 0.80 mm / 0.62 mm |
| Rated Temperature | 70 °C |
| Voltage Rating | 450/750 V |
| Spark Test | 6000 V |
| Dielectric Withstand Test | 2500 VAC / 5 min |
| Conductor Resistance @ 20 °C | ≤ 5.09 Ω/km |
| Tensile Strength (Unaged) | ≥ 12.5 MPa |
| Elongation (Unaged) | ≥ 125% |
| Colour | Yellow/Green |
| Roll Length | 100 m |
