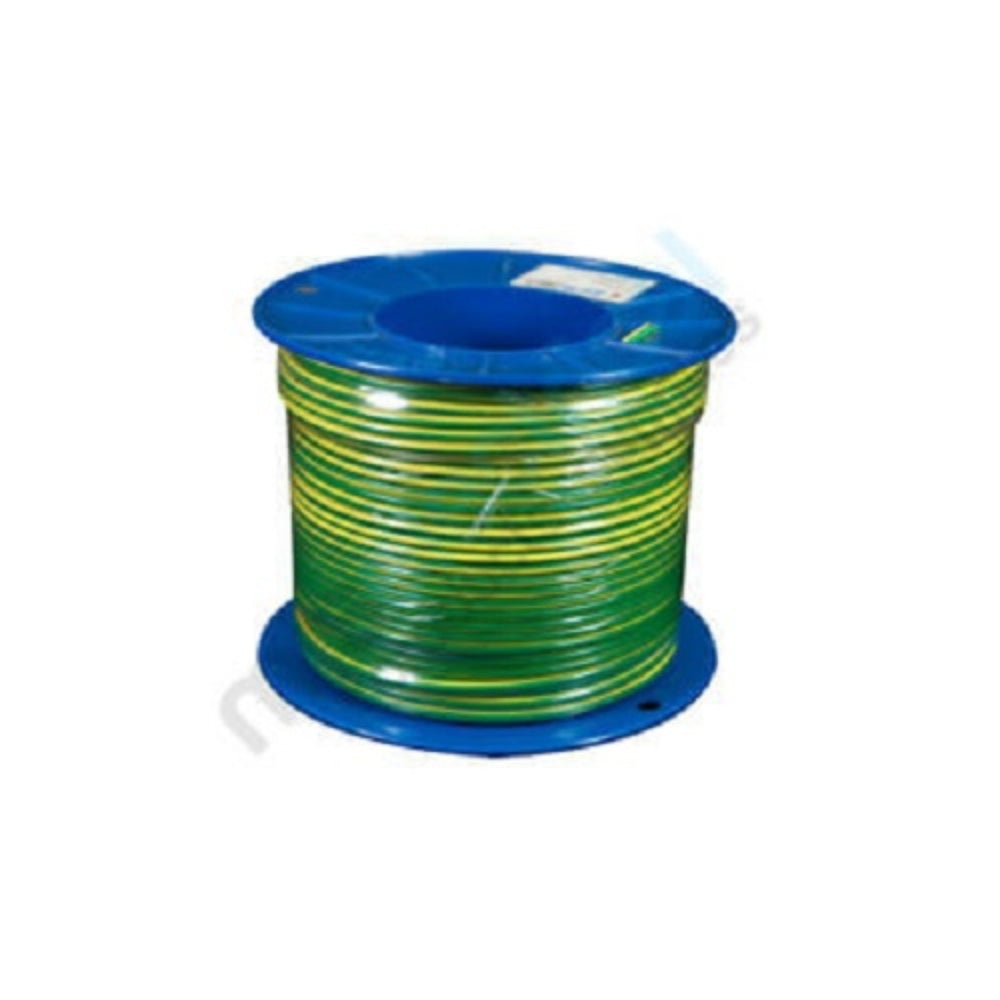

6mm Earthing Cable Yellow/Green (100m Rolls)
SKU EARTHCABLE6MM
Call for availability
- Description
- Key Features
- Technical Specifications
This1×6 mm² Earthing Cable is a high-quality yellow/green PVC-insulated cable designed for earthing and bonding applications in electrical installations. Constructed from stranded tinned copper, it offers excellent conductivity, mechanical strength, and compliance with AS/NZS 5000.2 standards. Supplied in 100 m rolls, it is ideal for residential, commercial, and industrial wiring projects
- 6 mm² conductor size for reliable earthing and bonding
- Tinned copper conductor improves corrosion resistance and durability
- PVC insulation with robust dielectric properties
- Yellow/green colour coding for easy identification as an earth cable
- Rated 450/750 V and 70 °C continuous operation
- Complies with AS/NZS 5000.2 and RoHS EU Directive 2011/65/EU
- Supplied in 100 m rolls for installer convenience
| Specification | Value |
|---|---|
| SKU / Model | EARTHCABLE6MM |
| Standard | AS/NZS 5000.2; RoHS EU Directive 2011/65/EU |
| Style | 02 (RV) |
| Conductor Size | 6.0 mm² |
| Conductor Construction | 78/0.30 mm stranded tinned copper |
| Stranded O.D. | 3.06 mm |
| Insulation Material | PVC |
| Nominal O.D. | 4.80 ± 0.20 mm |
| Insulation Thickness (Nom/Min) | 0.80 mm / 0.62 mm |
| Rated Temperature | 70 °C |
| Voltage Rating | 450/750 V |
| Spark Test | 6000 V |
| Dielectric Withstand Test | 2500 VAC / 5 min |
| Conductor Resistance @ 20 °C | ≤ 3.39 Ω/km |
| Tensile Strength (Unaged) | ≥ 12.5 MPa |
| Elongation (Unaged) | ≥ 125% |
| Colour | Yellow/Green |
| Roll Length | 100 m |
