Power Division Control System
SKU SOLSHARE 2
Call for availability
- Description
- Key Features
- Technical Specifications

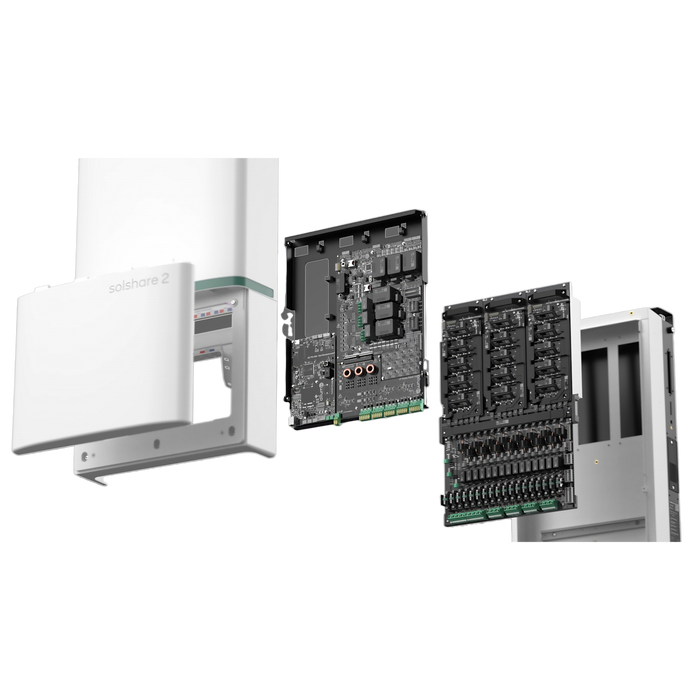

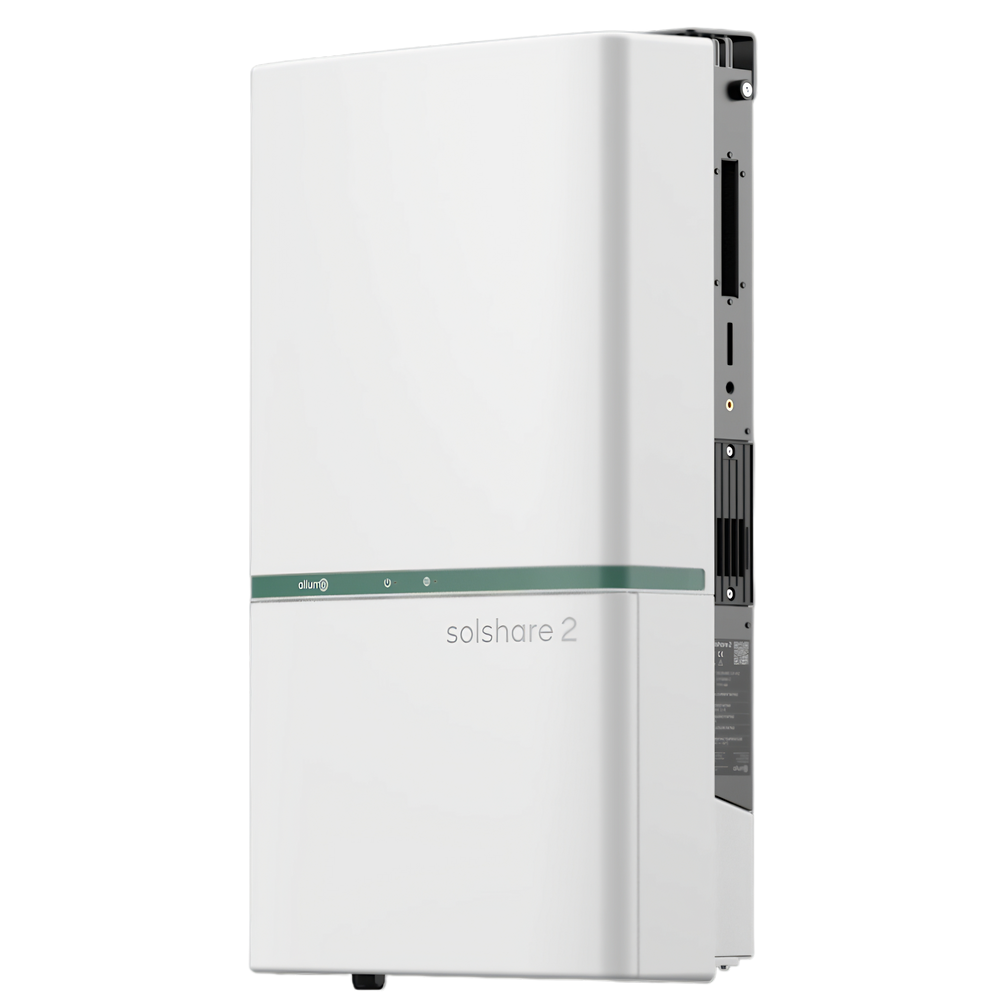

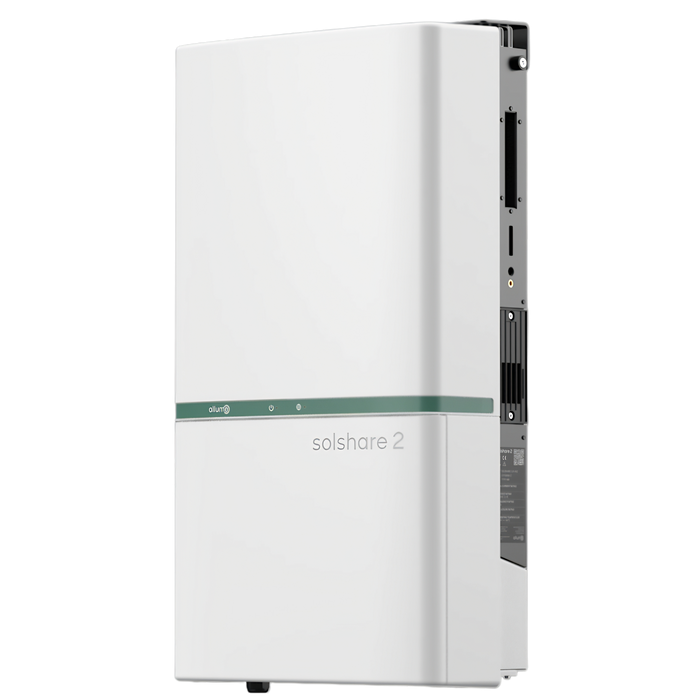

The SolShare 2 is a smart solar sharing device designed to unlock rooftop solar for apartments and multi-tenancy buildings. Sitting behind the meter between the inverter and main switchboard, it dynamically allocates solar energy from a single rooftop PV system across multiple tenancies. With support for up to 15 tenancies per unit, plug-and-play Ethernet connectivity, resident-level monitoring and battery integration options, SolShare 2 provides a practical pathway to shared solar in apartment buildings.
- Smart and dynamic solar sharing for apartments and multi-tenancy sites
- Shares one rooftop solar system across up to 15 tenancies
- Modular design allows multiple SolShare units for buildings with more than 15 apartments
- Suitable for use with any three-phase inverter up to 30kVA
- Behind-the-meter installation with no change to smart meter infrastructure
- Ethernet plug-and-play connectivity with Wi-Fi communication option
- Monitoring capabilities for every resident
- Battery integration options for flexible system design
- IP65-rated enclosure suitable for indoor and outdoor installation
- Made in Australia
| Specification | Value |
|---|---|
| Product Type | Inverter Power Sharing Device (IPSD) |
| Model | SOLSHARE-2.0-ANZ |
| Application | Shared solar for apartments and multi-tenancy buildings |
| Maximum Tenancies per Unit | Up to 15 tenancies |
| Inverter Compatibility | Any three-phase inverter up to 30kVA |
| Input Type | Three-phase AC |
| Rated Max. Input Power | 30kVA (10kVA per phase) |
| Output Type | 15 × single phase or 5 × three-phase, or combination |
| Rated Total Output Power | 30kVA (10kVA per phase) |
| Rated Voltage | 230VAC line to neutral |
| Voltage Range | 216 – 253VAC line to neutral |
| Frequency Range | 47 – 53Hz |
| Max. Current per Phase | 50.9A |
| Rated Current per Phase | 43.5A at 230V |
| Voltage Drop | 2.3V at nominal current, 25°C |
| Internet Communication | Ethernet, Wi-Fi 2.4GHz |
| Protection Rating | IP65 |
| Installation Location | Indoor or outdoor |
| Operating Temperature Range | -40°C to +50°C |
| Relative Humidity Range | 4 – 100% |
| Maximum Altitude | 2000m |
| Dimensions (H × W × D) | 880 × 480 × 235 mm |
| Weight | 41 kg |
| Included Accessories | 15 × current transformers with 10m cable lengths |
| Warranty | 10 year manufacturer’s warranty |
| Compliance | RCM AS/NZS 3820:2020, CE certified, EMC EN 61000 / EN 55032 / EN 301 489 |
