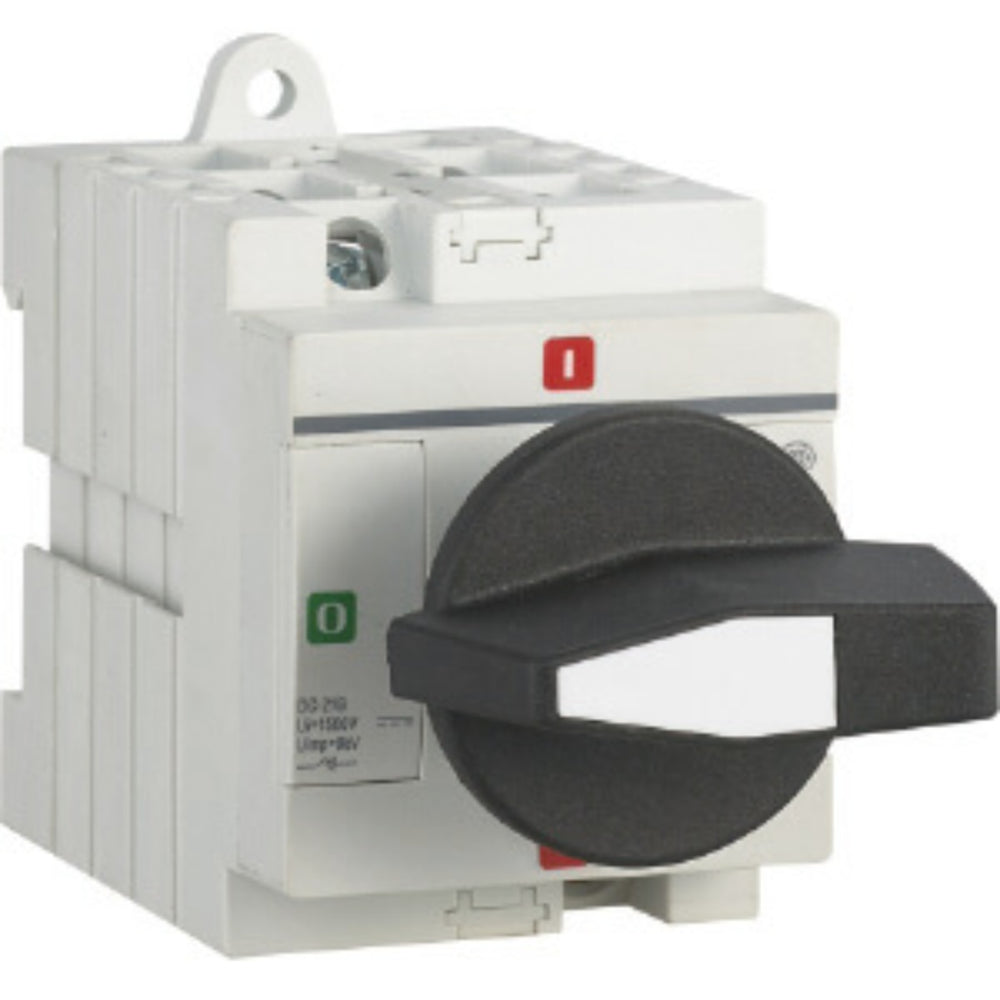

PGK 1500V DC Isolator 4P 35A (DIN Rail Mount)
SKU DCI1500V4PDIN
In stock: 2
- Description
- Key Features
- Technical Specifications
The DCI1500V4PDIN 1500 V DC Isolator (4-Pole, 35 A, DIN Rail Mount) is a high-voltage DC disconnect switch designed for solar PV systems up to 200 kW. With a rugged DIN-rail mounting format, it provides safe and reliable isolation of PV strings during installation, maintenance, or emergency shutdown. Built to AS 60947.3 standards and TÜV certified, it ensures compliance, safety, and long service life in demanding solar environments.
- 1500 V DC rated — ideal for modern high-voltage PV arrays
- 4-Pole configuration (35 A) — isolates multiple strings simultaneously
- DIN-rail mount for simple, compact integration into inverter cabinets or enclosures
- High endurance — 300–1000 cycles under load, 10,000+ cycles off-load
- Compliant with AS 60947.3 and TÜV-025979-EA certified
- Wide operating temperature from -40 °C to +85 °C
- afety protections with IP20 terminal protection and robust screw terminals
| Specification | Value |
|---|---|
| Model / SKU | DCI1500V4PDIN |
| Rated Operational Voltage (Ue) | Up to 1500 V DC |
| Rated Operational Current (Ie) | 35 A (4-pole) |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Short-Time Withstand Current (Icw) | 1.5 kA |
| Short-Circuit Making Capacity (Icm) | 2.0 kA |
| Utilisation Category | DC-PV2 |
| Poles Available | 2 / 4 / 6 / 8 (this SKU = 4P) |
| Terminal Type | Screw terminal, 4–16 mm² rigid / 4–10 mm² flexible |
| Number of Conductors per Terminal | 1 |
| Torque (Terminal Screws) | 1.2–1.8 Nm |
| Endurance (with current) | 300–1000 operations |
| Endurance (without current) | 10,000 operations |
| Ambient Operating Temperature | -40 °C to +85 °C |
| Storage Temperature | -40 °C to +85 °C |
| Relative Humidity | 90% |
| Pollution Degree | 2 |
| IP Rating (Terminals) | IP20 |
| Mounting Style | DIN Rail |
| Standards Compliance | AS 60947.3, TÜV Certified |
