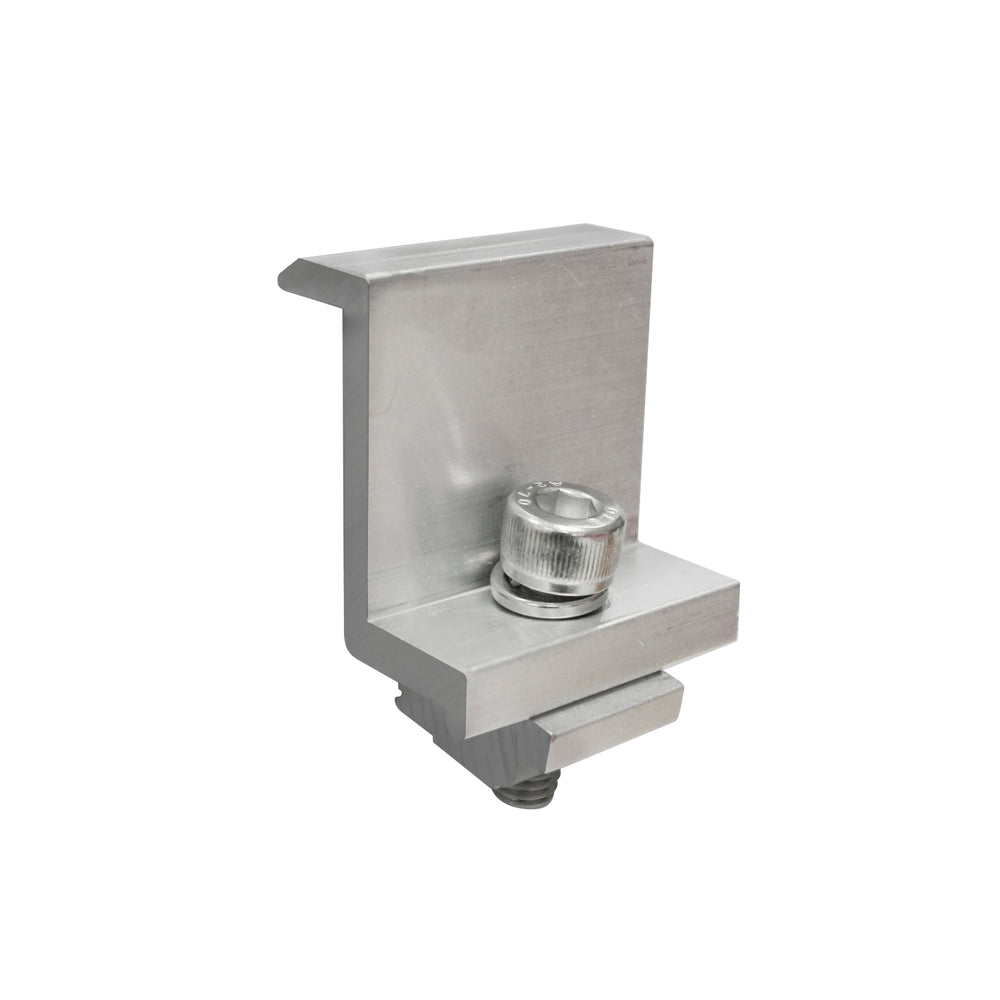

PV-ezRack End Clamp, Standard 30mm
- Description
- Key Features
- Technical Specifications
The ER-EC-ST30 End Clamp is a sleek, durable clamp designed to fix the edge of framed PV modules to Clenergy’s ECO or T-rail systems. Made from anodised aluminium with stainless steel bolts, it locks your modules in place while maintaining structural integrity and compatibility across the PV-ezRack system. This 30 mm version is tailored for modules with 30 mm frame heights.
-
Made for framed PV modules with 30 mm frame height.
-
Requires 20 mm clearance on each side of the rail for correct installation.
-
Lightweight: approx 0.052 kg per clamp.
-
Made from AL6005-T5 aluminium with SUS 304 fasteners for strength and corrosion resistance.
-
Recommended torque: 16–20 N·m to ensure secure clamping without damage.
-
Packaged in 100 units per pack, 4 packs per carton (400 units total).
-
Designed to the AS/NZS 1170.2-2011 standard.
| Specification | Value / Notes |
|---|---|
| SKU / Model | ER-EC-ST30 |
| Product Type | End Clamp (Standard) |
| Compatible Module Frame Height | 30 mm |
| Required Rail Side Clearance | 20 mm each side |
| Weight | ~ 0.052 kg |
| Material – Body | AL6005-T5 Aluminium |
| Fasteners | SUS 304 stainless steel |
| Recommended Torque | 16–20 N·m |
| Packaging | 100 per pack, 4 packs per carton (400 total) |
| Standard / Compliance | AS/NZS 1170.2-2011 |
| Application | Clamping the edge (end) of framed PV modules in the PV-ezRack / ECO rail system |
