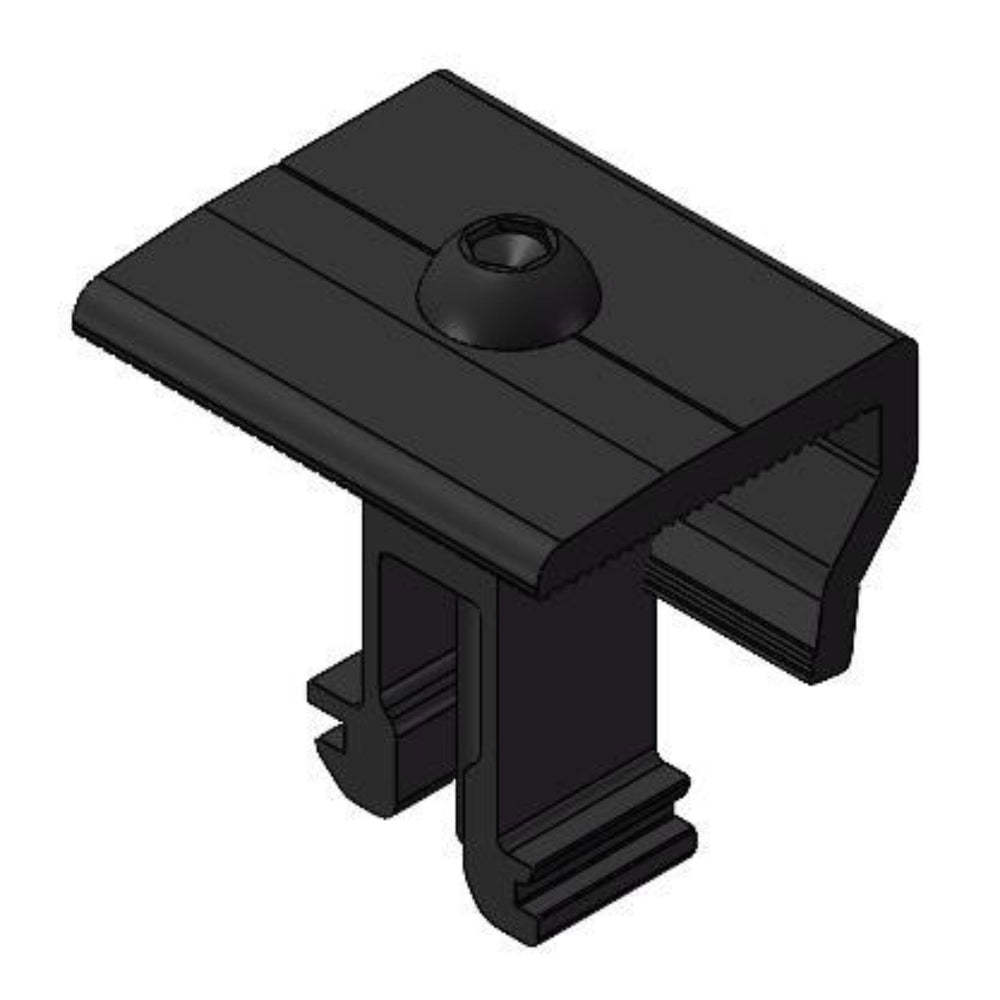

PVezRack, Zano End Clamp for Frame Height 28-42mm, 50 mm Length, Black Anodized
- Description
- Key Features
- Technical Specifications
The ER-EC-28/42/L50/BA is a high-precision Zano end clamp engineered to secure the outer edge of framed PV modules (28–42 mm thickness) to the rail system. Its 50 mm length ensures a robust grip, while the black anodised finish (BA) offers both corrosion protection and visual uniformity with black-frame modules. This clamp is part of Clenergy’s Zano clamp family and is suitable for both residential and commercial solar installations.
-
Designed for framed PV module thicknesses from 28 to 42 mm
-
Requires 20 mm spacing between adjacent modules for proper installation clearance
-
Recommended tightening torque: 13–16 N·m, providing reliable clamping force without damage
-
Weight: approx. 0.076 kg per clamp
-
Material: main body made from AL6005-T5 aluminium, with SUS304 stainless steel fasteners
-
Packaging / Quantity: 27 units per pack, 4 packs per carton (108 units total)
| Specification | Value / Notes |
|---|---|
| SKU / Model | ER-EC-28/42/L50/BA |
| Product Type | Zano End Clamp (Black Anodised) |
| Compatible Module Thickness | 28 – 42 mm |
| Clamp Length | 50 mm |
| Required Module Gap | 20 mm spacing |
| Recommended Torque | 13–16 N·m |
| Weight | ~ 0.076 kg |
| Body Material / Finish | AL6005-T5 aluminium, black anodised (BA) |
| Fasteners | SUS 304 stainless steel |
| Pack / Carton Quantity | 27 units / pack; 4 packs per carton (108 units) |
| Application | Used as end clamp on module edges in Clenergy Zano clamp system |
