Thermostat safety limiter 238°C cut-out fixed temperature
Thermostat safety limiter 238°C cut-out fixed temperature

Thermostat safety limiter 238°C cut-out fixed temperature

SKU RC32
In stock: 54
  • Description
  • Key Features
  • Model Info

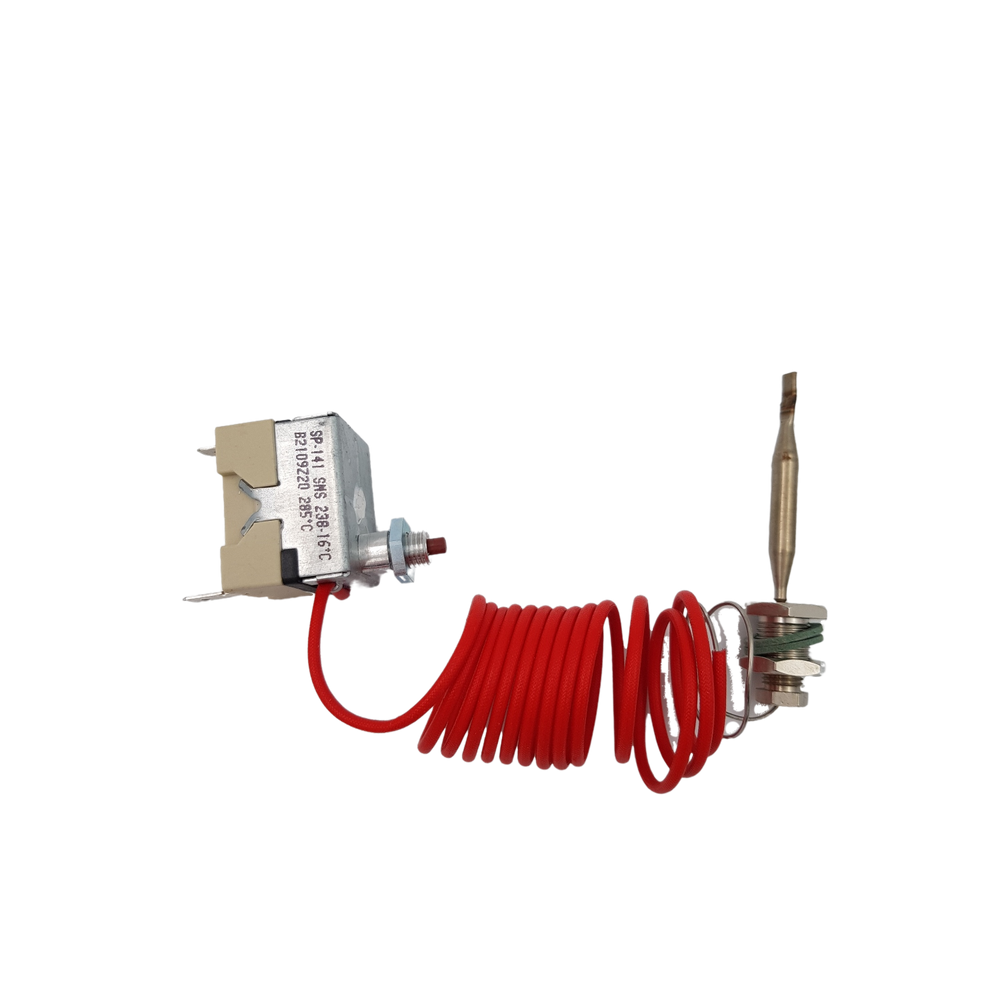

The RC32 is a manual reset over-temperature safety thermostat, designed to cut power when temperature exceeds 238 °C. It corresponds to EGO 55.13544.010, and is used in commercial fryers, ovens, and heating appliances. Also cross-referenced under Moffat 020188 / TC0003 and Hayman 40511

  • Trip (cut-out) temperature: 238 °C

  • Manual reset (must be reset after trip)

  • Contact configuration: SPST (single pole)

  • Capillary length: ~1,470 mm

  • Bulb / probe: Ø 6 mm × 77 mm

  • Connection / gland: M9 + M12 thread

  • Electrical rating: 16 A, 230 V AC

Moffat, Hayman and other deep fryers
