Tin Interface with Curved Base for Corrugated Roof (Z Module+ Bolt+Universal Screw), black anodized
- Description
- Key Features
- Technical Specifications

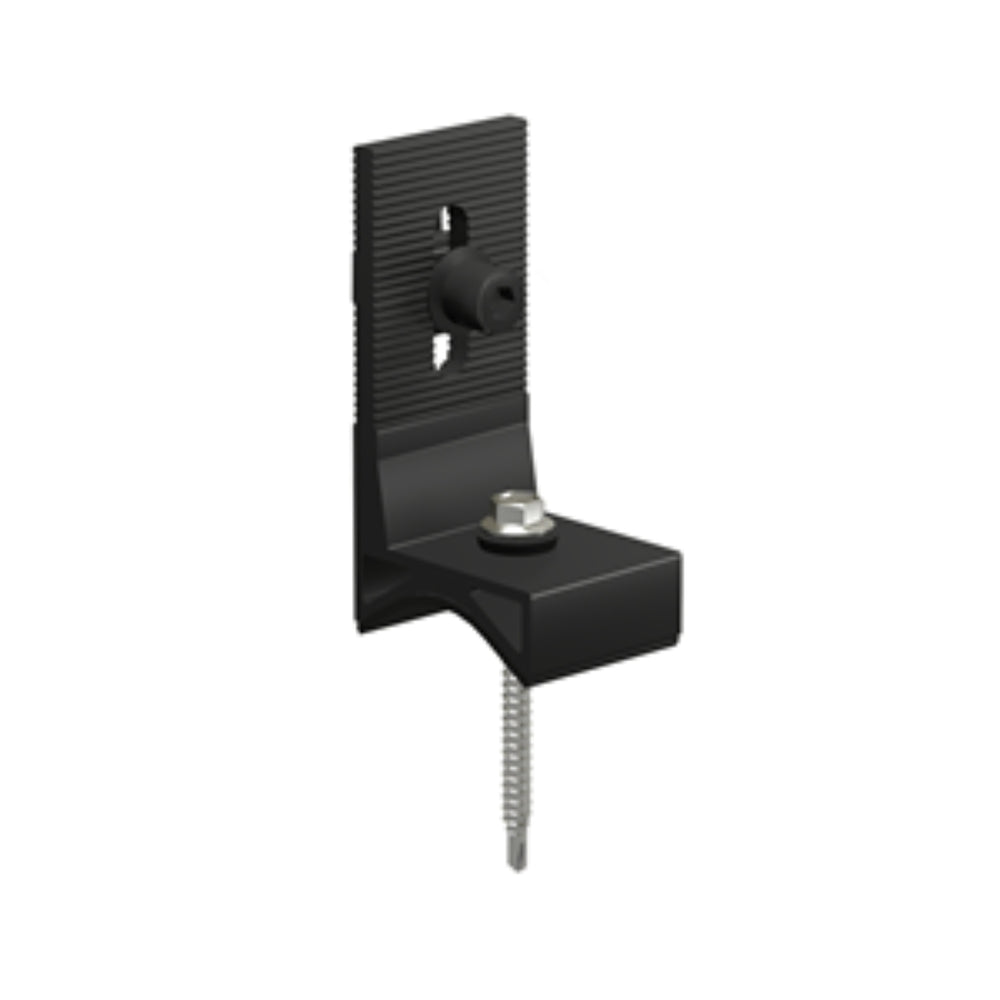

The ER-I-25 / BA is a tin-roof mounting interface (Z-Module + bolt + universal screw) designed for corrugated metal roofs in Clenergy’s PV-ezRack SolarRoof system. It features a curved base to match roof profiles, a built-in EPDM seal, and full black anodised finish for both aesthetics and durability. This interface allows secure and watertight fixation of rails to corrugated roofs, with proper roof clearance and structural performance.
-
Curved base fits corrugated tin roof profiles, offering better contact and alignment.
-
Black anodised finish for corrosion resistance and sleek visual integration.
-
EPDM rubber pad (~2 mm) pre-fitted for sealing between interface and roof.
-
Made of AL6005-T5 aluminium (body) and SUS 304 stainless steel fasteners.
-
Dimensions: L 40 mm × W 50 mm × H 95.8 mm.
-
Required clearance: 89–104 mm between interface points for proper installation.
-
Load rating & structural standard conformity: built to comply with AS/NZS 1170.2-2011.
| Specification | Value / Notes |
|---|---|
| SKU / Model | ER-I-25 / BA |
| Product Type | Tin interface for corrugated roof mounting |
| Roof Type | Corrugated metal / tin roofs |
| Material – Body | AL6005-T5 aluminium |
| Fasteners / Hardware | SUS 304 stainless steel |
| Seal / Gasket | EPDM rubber pad (~2 mm) |
| Finish | Black anodised (≥ 10 μm) |
| Dimensions (L × W × H) | 40 × 50 × 95.8 mm |
| Weight | ~ 0.139 kg |
| Clearance (Roof Profile) | 89–104 mm gap clearance range |
| Packaging | 40 units per pack; 4 packs per carton (160 units) |
| Standard / Compliance | AS/NZS 1170.2-2011 |
| Application | Fixing rails to corrugated tin roofs, ensuring watertight and secure mounting |
