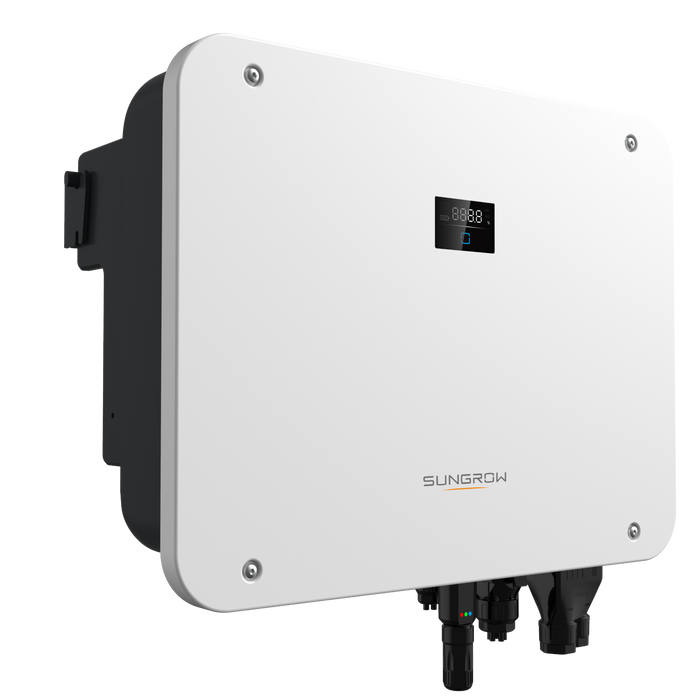

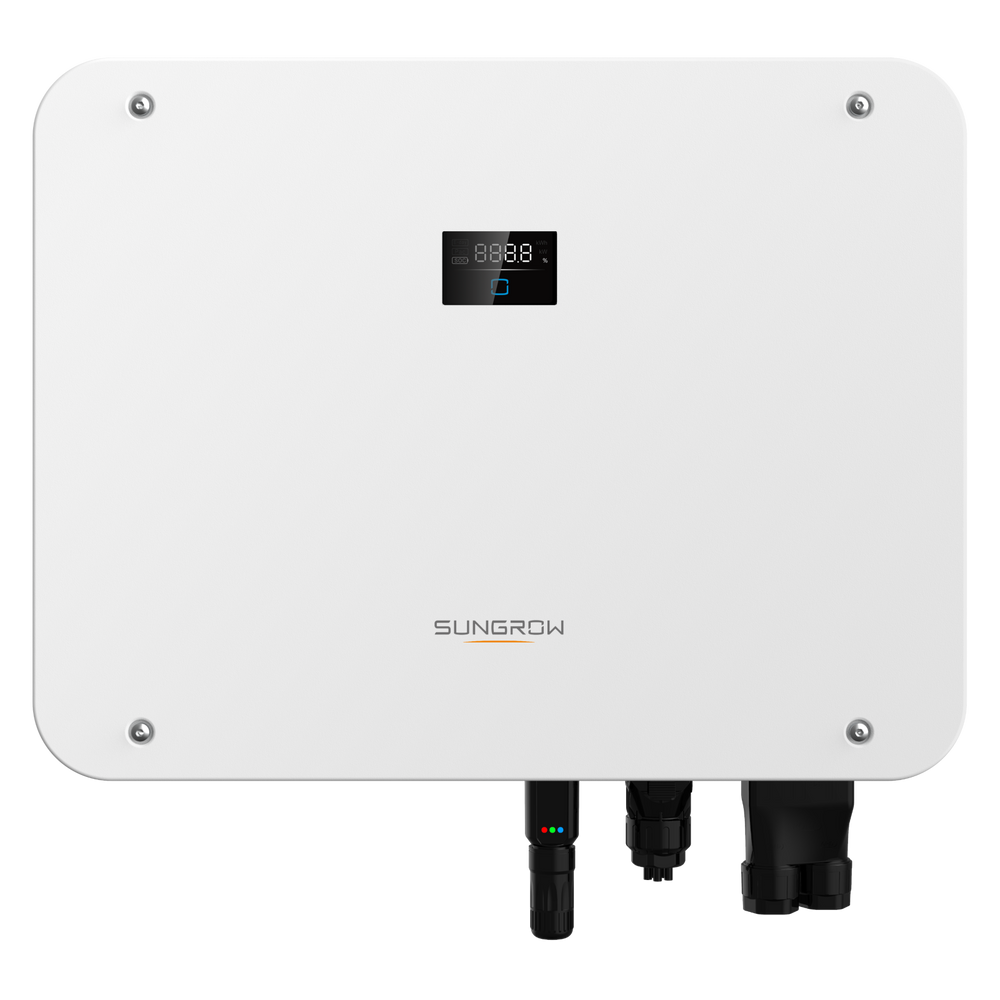

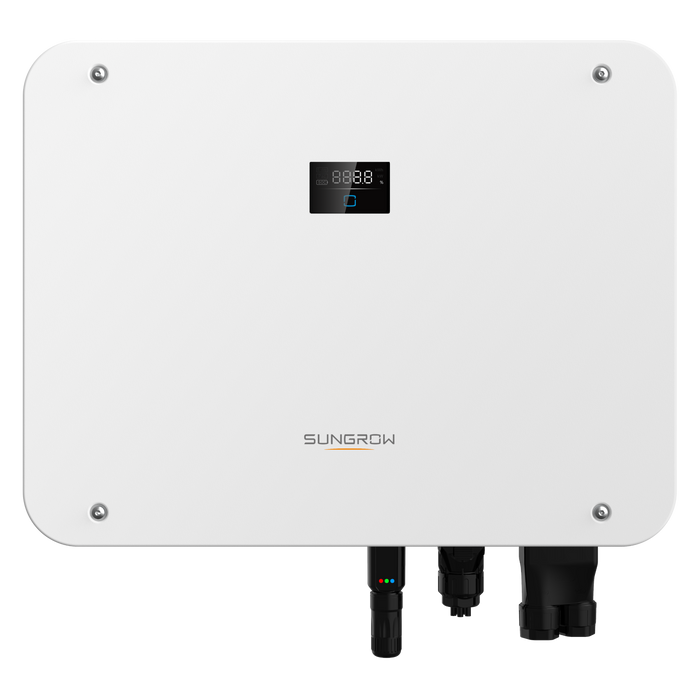

SUNGROW - THREE-PHASE HV HYBRID INVERTER - 5KW
- Description
- Key Features
- Technical Specifications
The Sungrow SH5T is a three-phase hybrid inverter designed to combine solar generation, battery storage, and full backup capability in a single compact unit. Built for residential and light commercial applications, it enables seamless transition to backup power during outages while supporting high charge and discharge performance. With plug-and-play installation, quiet operation, and robust safety features, the SH5T delivers reliable energy independence with simplified system design.
-
5 kW three-phase hybrid inverter with battery integration
-
Built-in bypass for whole-home backup functionality
-
Seamless switch to backup mode (<10 ms) during grid outages
-
Supports 100% unbalanced output in both on-grid and backup modes
-
Fast charge and discharge capability to maximise self-consumption
-
Plug-and-play installation for faster commissioning
-
Quiet operation suitable for indoor or outdoor installation
-
Integrated safety protection with IP65 and C5 corrosion rating
| Specification | Value |
|---|---|
| Model | SH5T |
| Rated AC Output Power | 5,000 W |
| Rated AC Output Apparent Power | 5,000 VA |
| Phase Configuration | Three-phase |
| Max. PV Input Voltage | 1,000 V |
| MPPT Operating Voltage Range | 150 – 950 V DC |
| Number of MPPTs | 2 |
| Max. PV Input Current | 30 A |
| Battery Type | Li-ion |
| Battery Voltage Range | 100 – 700 V |
| Max. Charge / Discharge Current | 50 A / 50 A |
| Backup Switch Time | < 10 ms |
| Max. Backup Output Power | 5,000 W |
| Communication | RS485 / WLAN / Ethernet / CAN |
| Protection Rating | IP65 |
| Cooling Method | Natural convection |
| Operating Temperature Range | −25 °C to +60 °C |
| Dimensions (W × H × D) | 620 × 480 × 195 mm |
| Weight | 32 kg |
| Mounting Method | Wall-mounting bracket |
| Compliance | IEC / EN 62109 |
