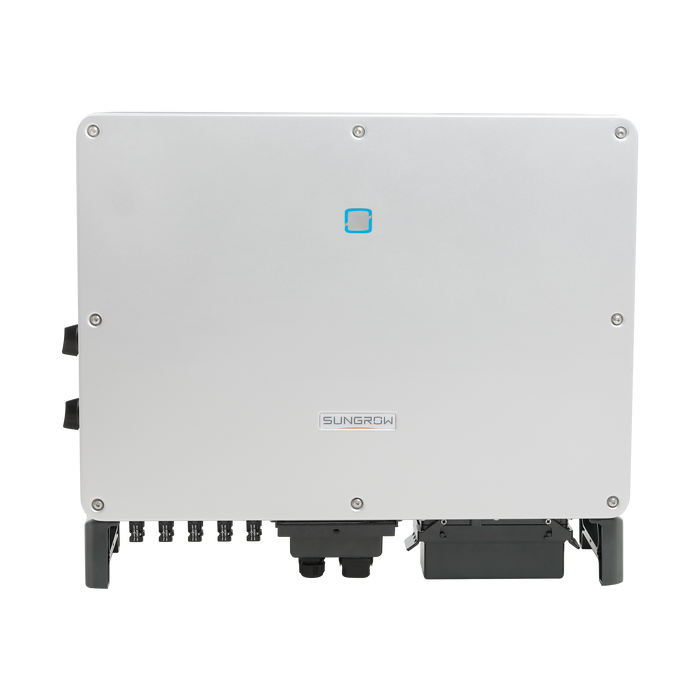

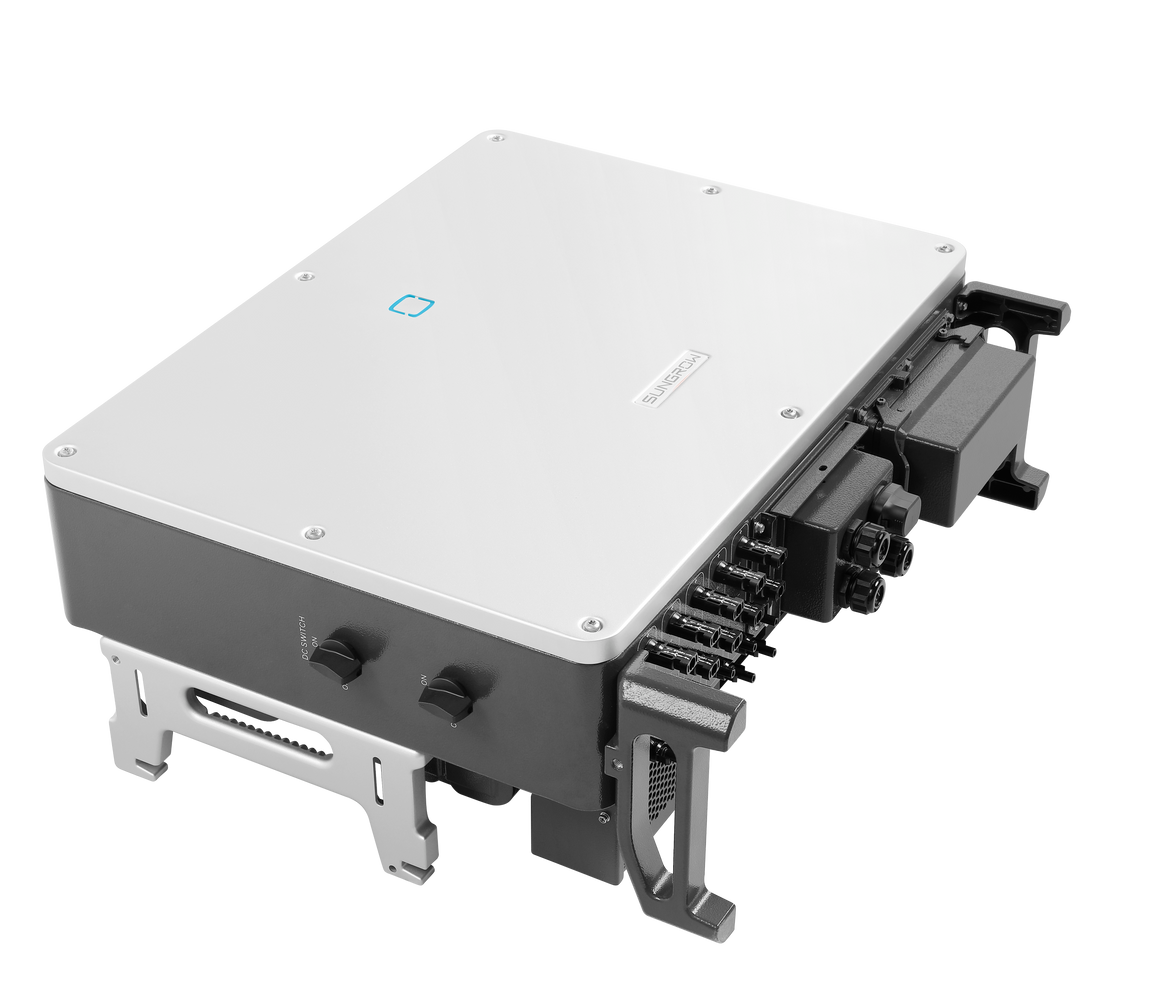

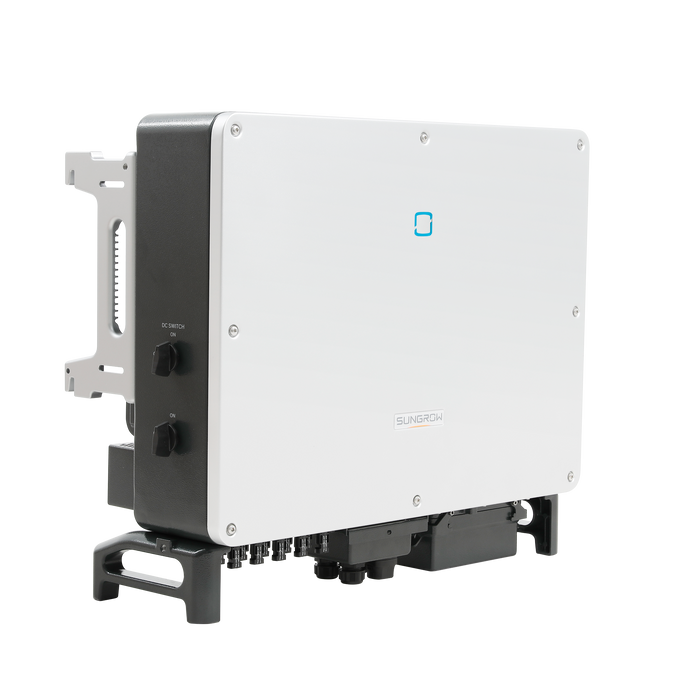

SUNGROW - THREE PHASE PV INVERTER - 29.9KW
- Description
- Key Features
- Technical Specifications
The Sungrow SG30CX-P2 is a high-performance three-phase string inverter engineered for commercial PV installations demanding efficiency, flexibility, and long-term reliability. Featuring multiple MPPTs and high DC input capacity, it maximises energy yield across complex array designs. With advanced safety protection, smart monitoring, and a robust, installer-friendly design, the SG30CX-P2 delivers dependable performance while simplifying installation and ongoing maintenance.
-
30 kW three-phase output for commercial solar applications
-
Multiple MPPT design for flexible system layouts and higher energy yield
-
High efficiency with maximum efficiency up to 98.7%
-
Integrated AFCI for enhanced fire safety protection
-
Built-in Type II DC & AC surge protection
-
Smart IV curve scanning and 24/7 live monitoring via iSolarCloud
-
Plug-and-play DC connectors for faster installation
-
IP66 enclosure with C5 anti-corrosion protection for harsh outdoor environments
| Specification | Value |
|---|---|
| Model | SG30CX-P2 |
| Rated AC Output Power | 30,000 W |
| Max. AC Output Apparent Power | 33,000 VA |
| Phase Configuration | Three-phase |
| Max. DC Input Voltage | 1,100 V |
| MPPT Operating Voltage Range | 200 – 1,000 V DC |
| Number of MPPTs | 3 |
| Max. PV Input Current | 48 A per MPPT |
| Max. DC Short-Circuit Current | 60 A per MPPT |
| Maximum Efficiency | 98.7% |
| Communication | WLAN / Ethernet / RS485 / DI / DO |
| Protection Rating | IP66 |
| Corrosion Protection | C5 |
| Cooling Method | Smart forced air cooling |
| Operating Temperature Range | −25 °C to +60 °C |
| Dimensions (W × H × D) | As per Sungrow specification |
| Weight | As per Sungrow specification |
| Mounting Method | Wall-mounting bracket |
| Warranty | As per Sungrow inverter warranty documentation |
| Compliance | IEC / EN 62109-1/2 |
