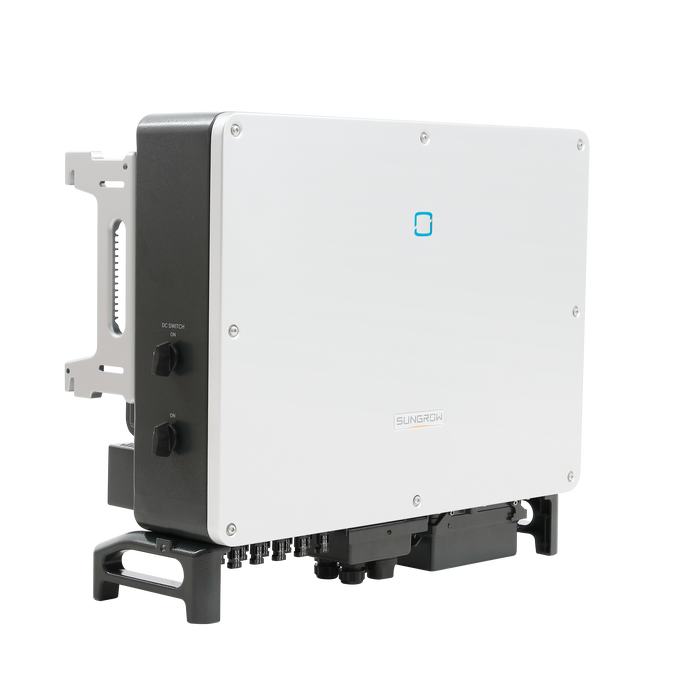

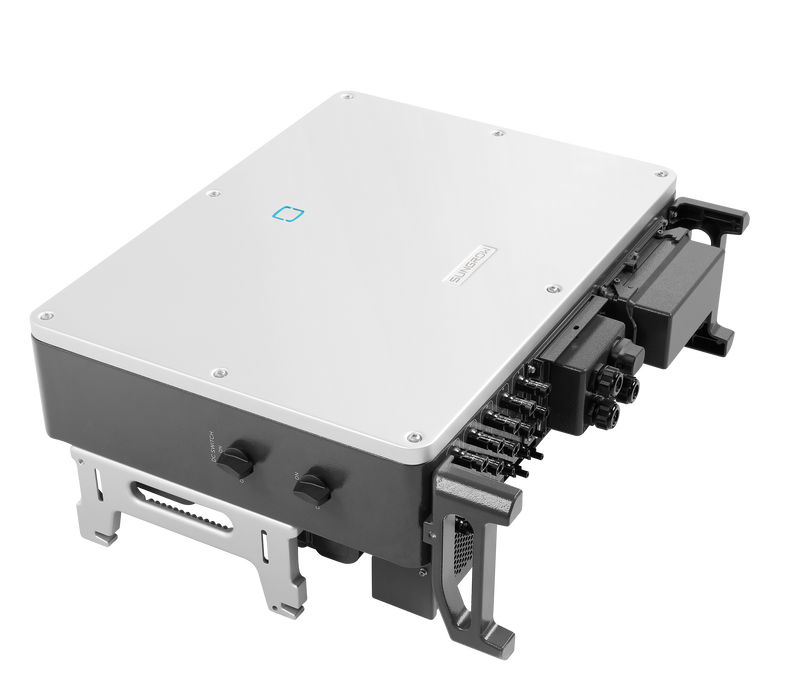

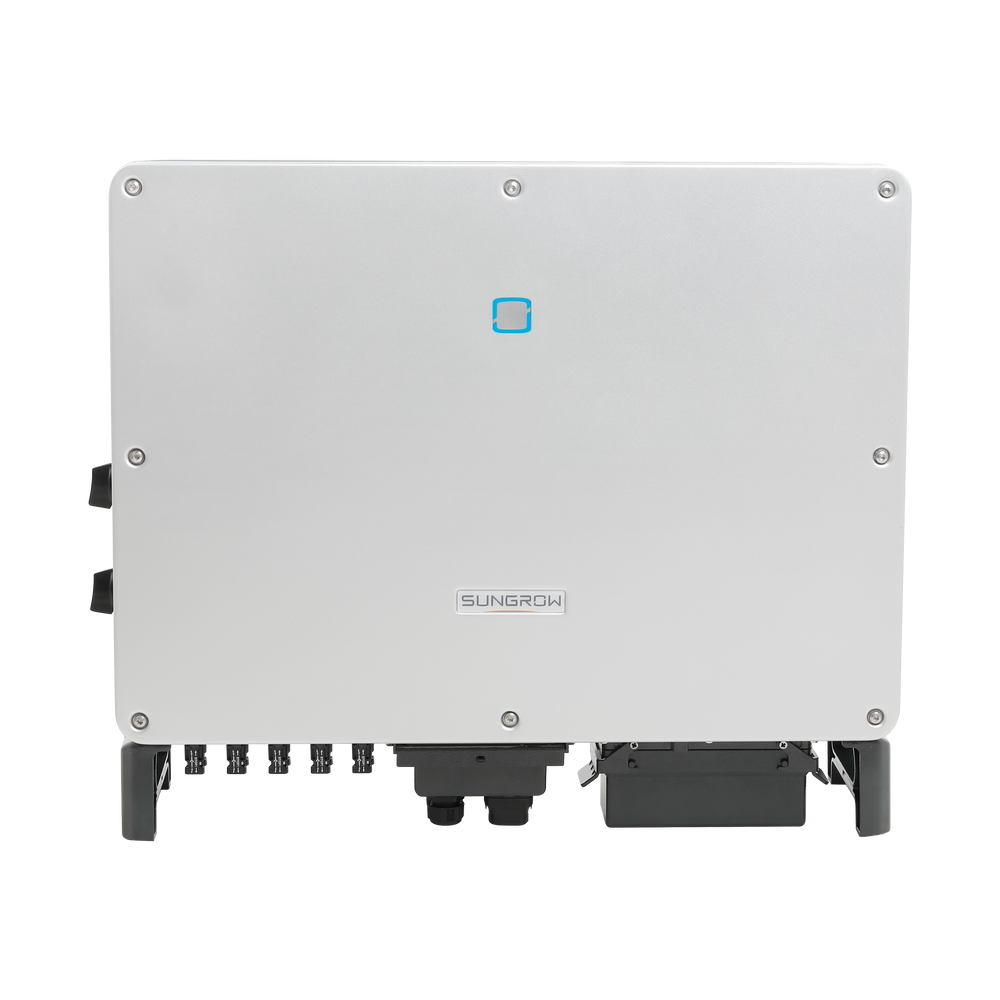

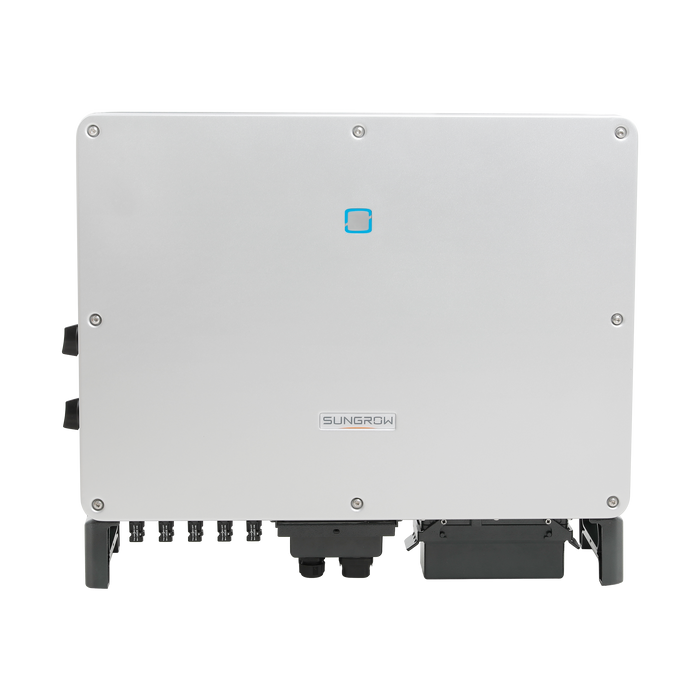

SUNGROW - THREE PHASE PV INVERTER - 50KW
- Description
- Key Features
- Technical Specifications
The Sungrow SG50CX-P2 is a high-capacity three-phase string inverter designed for demanding commercial and industrial PV installations. With a multi-MPPT architecture and high DC input capability, it maximises energy yield across complex array designs while maintaining excellent efficiency. Advanced safety features, smart monitoring, and a robust IP66 enclosure make the SG50CX-P2 a reliable, installer-friendly solution for long-term commercial solar performance.
-
50 kW three-phase output for commercial and industrial solar systems
-
Multiple MPPT design to optimise performance across varied string layouts
-
High efficiency with maximum efficiency up to 98.7%
-
Integrated AFCI for enhanced fire safety protection
-
Built-in Type II DC & AC surge protection
-
Smart IV curve scanning with 24/7 live monitoring via iSolarCloud
-
Plug-and-play DC connectors for faster, cleaner installation
-
IP66 enclosure with C5 anti-corrosion protection for harsh outdoor environments
| Specification | Value |
|---|---|
| Model | SG50CX-P2 |
| Rated AC Output Power | 50,000 W |
| Max. AC Output Apparent Power | 55,000 VA |
| Phase Configuration | Three-phase |
| Max. DC Input Voltage | 1,100 V |
| MPPT Operating Voltage Range | 200 – 1,000 V DC |
| Number of MPPTs | 5 |
| Max. PV Input Current | 48 A per MPPT |
| Max. DC Short-Circuit Current | 60 A per MPPT |
| Maximum Efficiency | 98.7% |
| Communication | WLAN / Ethernet / RS485 / DI / DO |
| Protection Rating | IP66 |
| Corrosion Protection | C5 |
| Cooling Method | Smart forced air cooling |
| Operating Temperature Range | −25 °C to +60 °C |
| Dimensions (W × H × D) | As per Sungrow specification |
| Weight | As per Sungrow specification |
| Mounting Method | Wall-mounting bracket |
| Warranty | As per Sungrow inverter warranty documentation |
| Compliance | IEC / EN 62109-1/2 |
