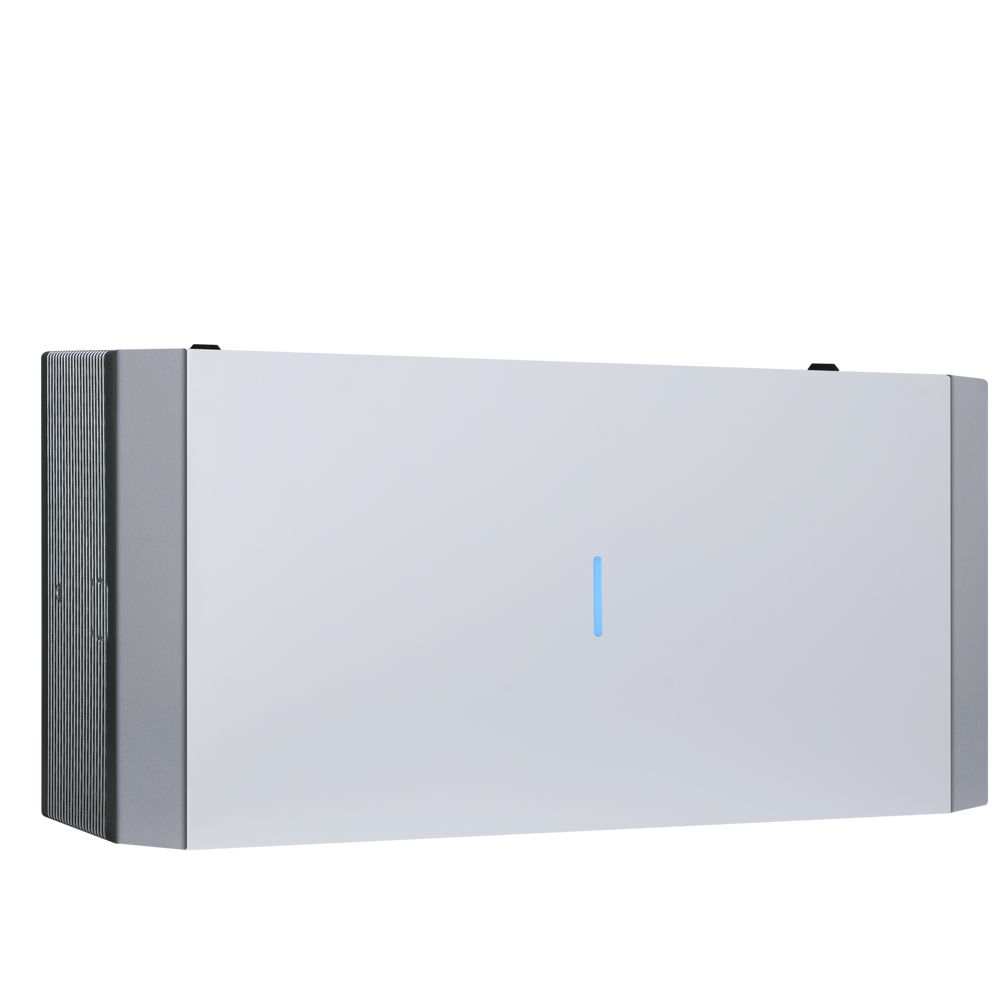

5kW Battery Module
SKU Chelion 5kW Battery HD
Call for availability
- Description
- Key Features
- Technical Specifications
The Chelion 5 kWh High-Voltage Lithium Battery is designed for residential solar and energy storage applications. With a modular 5 kWh capacity, it can be installed as a single unit or stacked for larger systems. Featuring long cycle life, high efficiency, and built-in safety protections, it integrates seamlessly with Chelion hybrid inverters for reliable solar storage
- 5 kWh usable capacity — ideal for daily residential solar storage
- High-voltage design — supports series connection for larger capacity banks
- Modular & scalable — easily expand from 5 kWh to larger storage systems
- Long cycle life — advanced lithium technology ensures durability and reliability
- High round-trip efficiency — maximises usable solar energy
- Comprehensive protections — over-voltage, over-current, short-circuit, and temperature
- Compact design — slim form factor, wall-mountable, easy installation
- Compatible with Chelion Hybrid Inverters for plug-and-play solar + storage
| Specification | Value |
|---|---|
| Nominal Capacity | 5 kWh |
| Usable Capacity | ~4.8 kWh |
| Nominal Voltage | ~100–120 V (high-voltage module) |
| Voltage Range | ~90–150 V DC |
| Rated Charge/Discharge Power | 5 kW |
| Max Charge/Discharge Current | ~50 A |
| Round-Trip Efficiency | >90% |
| Cycle Life | >6,000 cycles @ 80% DoD |
| Communication Interfaces | CAN / RS485 |
| Enclosure Rating | IP65 |
| Operating Temperature Range | –10 °C to +50 °C |
| Storage Temperature Range | –20 °C to +60 °C |
| Dimensions (W × H × D) | ~500 × 700 × 200 mm |
| Weight | ~50 kg |
| Mounting | Wall-mounted or floor-standing |
| Safety / Standards Compliance | IEC 62619, UN38.3, AS/NZS certified |
