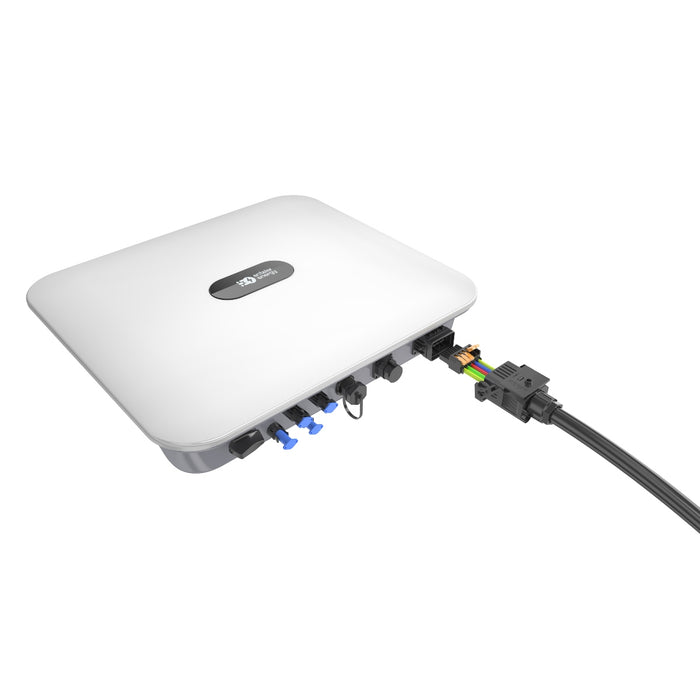

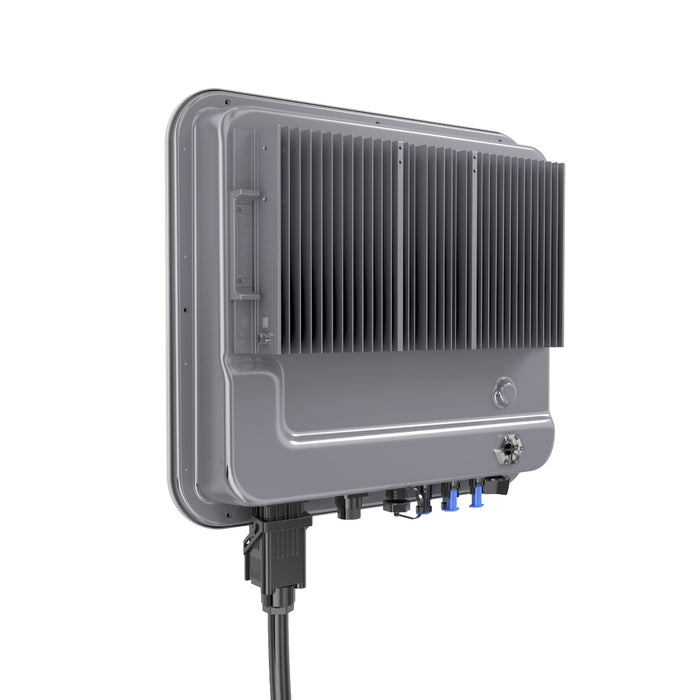

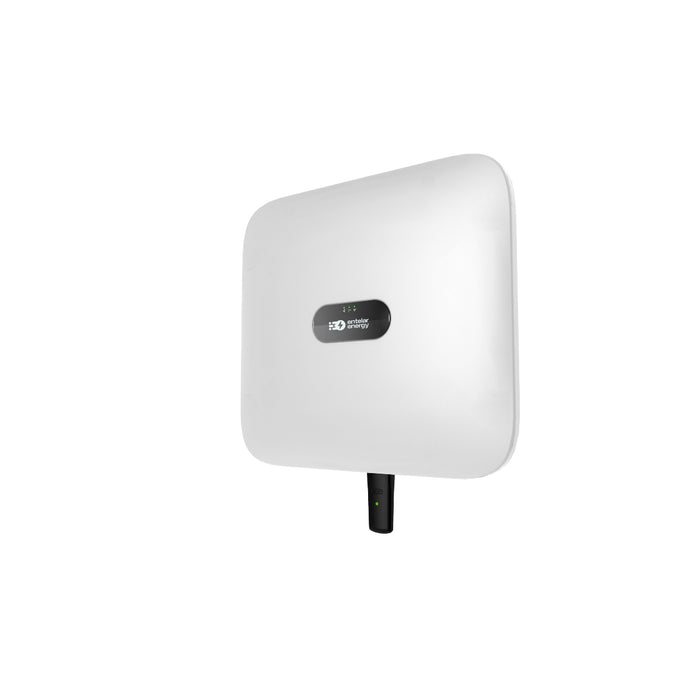

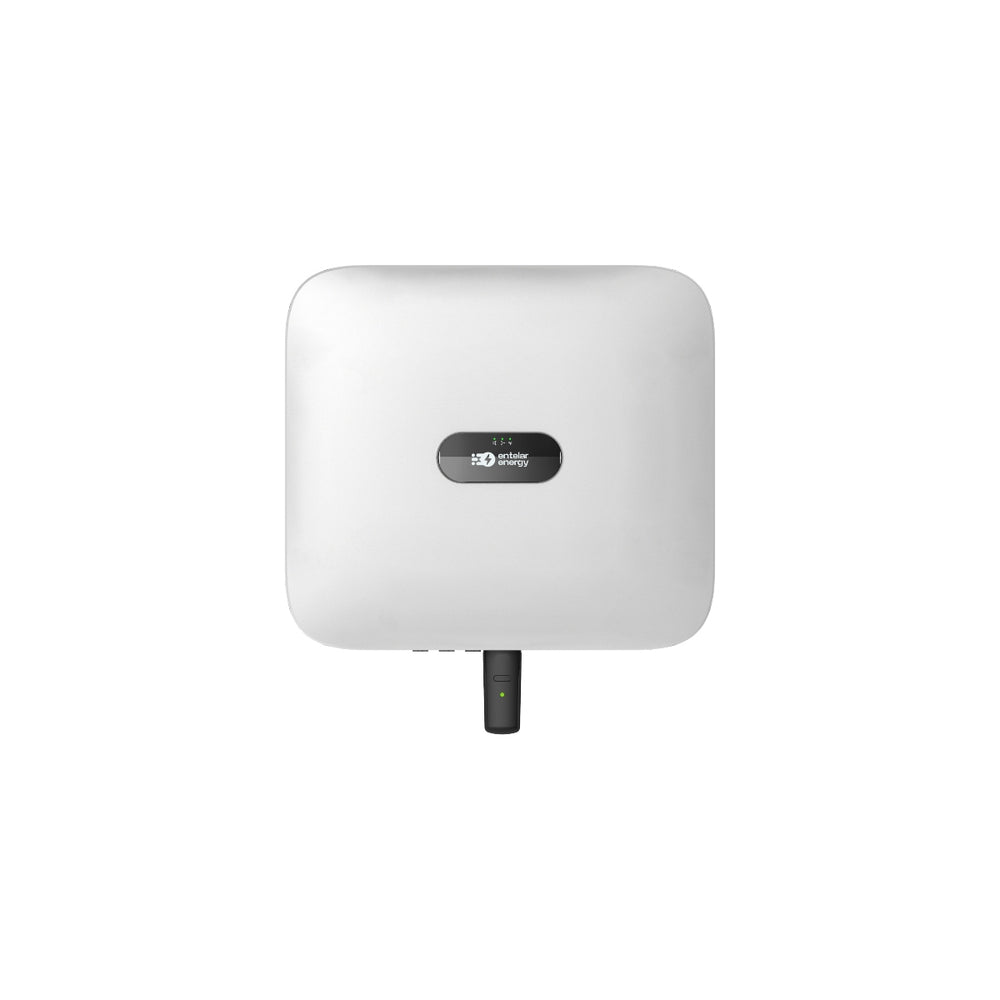

Entelar Energy Inverter, Smart Energy Controller, Three Phase, Max output 10,000w
- Description
- Key Features
- Technical Specifications
The Entelar EESOLAR-10KTL-M1 is a robust three-phase smart energy controller / hybrid inverter, offering 10 kW AC output capacity. Built for residential or light commercial installations, it incorporates dual MPPTs for optimal panel string performance, strong protection features, and built-in communications. With high efficiency, wide voltage input range, and rugged protection, it's a dependable solution to maximise solar yield.
-
10 000 W AC output — substantial power for bigger PV systems.
-
2 MPPTs, allowing effective optimisation across two string inputs.
-
Wide MPPT operating voltage range: 140-980 V DC.
-
Max input current per MPPT: 13.5 A.
-
Max DC input voltage up to 1100 V.
-
European rated efficiency ~ 97.8%, ensuring minimal losses.
-
Built-in WLAN (wireless LAN) connectivity standard.
-
IP65 rating for weather resistance.
-
10-year manufacturer warranty.
| Specification | Value |
|---|---|
| Rated AC Output Power | 10,000 W |
| Number of MPPTs | 2 |
| MPPT Operating Voltage Range | 140 - 980 V DC |
| Maximum Input Voltage | 1100 V DC |
| Max Input Current per MPPT | 13.5 A |
| Efficiency (European weighted) | ~ 97.8 % |
| Phase | Three-phase |
| Communication & Monitoring | WLAN (built-in) |
| Protection Rating | IP65 |
| Warranty | 10 years |
