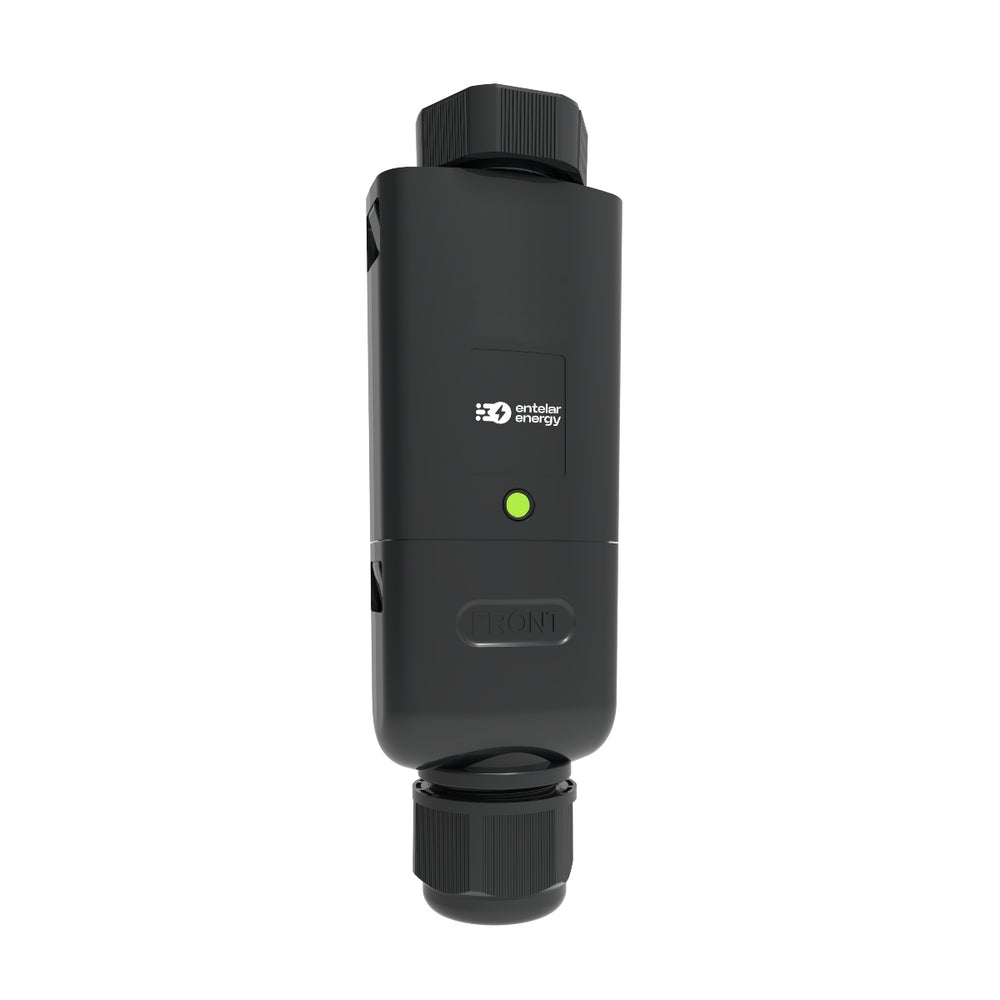

Entelar Energy Inverter external WLAN-FE Dongle (Supporting the communication for 10 devices, supporting WLAN hotspot)
- Description
- Key Features
- Technical Specifications
The Entelar EEDongleA-05 is a Smart Dongle accessory that enables WLAN (Wi-Fi) and Fast Ethernet communication for compatible Entelar inverters. It allows you to connect up to 10 devices (inverters and/or other RS-485-connected equipment) over a cascaded network, centralising monitoring and control. The dongle is plug-and-play, rugged (IP65 rated), and supports auto-reconnection to ensure continuous communication even in adverse conditions.
-
Provides both Wi-Fi (802.11b/g/n, 2.4 GHz band) and 10/100 M Ethernet (FE) connectivity.
-
Plug-and-play installation via inverter’s USB port; supports cascading up to 10 devices.
-
Reliable operation: IP65 enclosure for protection, auto-reconnect, LED indicators for status.
-
Low typical power consumption (~2.5 W) to minimise extra load.
-
Wide environmental tolerance: operates from –30 °C up to +65 °C; storage from –40 °C to +70 °C.
| Specification | Value |
|---|---|
| Connectivity Interfaces | WLAN (2.4 GHz, 802.11b/g/n), 10/100 M Fast Ethernet, USB for inverter connection |
| Maximum Devices Supported (Cascade) | 10 devices (inverters + non-inverter RS-485 devices) |
| Dimensions (W × H × D) | 146 × 48 × 33 mm |
| Net Weight | ~ 90 grams |
| Ingress Protection | IP65 |
| Typical Power Consumption | ~ 2.5 W |
| Operating Temperature Range | –30 °C to +65 °C |
| Storage Temperature Range | –40 °C to +70 °C |
| Relative Humidity (Operating) | 5% to 95% RH (non-condensing) |
| Maximum Altitude | ~ 4,000 m |
| LED Indicators | Status LEDs showing installation & network connection states |
