Sungrow 30kW DC Charger
- Description
- Key Features
- Technical Specifications

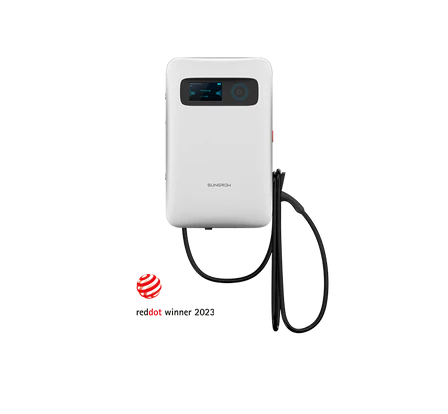

The Sungrow IDC30E is a compact 30 kW DC fast charger designed for reliable and efficient electric vehicle charging in residential and commercial environments. Featuring a wide output voltage range and dynamic load management, it is compatible with modern EV platforms while optimising available grid capacity. With a robust IP65 enclosure, low noise operation, and intelligent connectivity, the IDC30E delivers dependable performance with minimal maintenance requirements.
-
30 kW DC fast charger for residential and commercial EV charging
-
Wide DC output voltage range (200–1000 V) compatible with new-generation EVs
-
High efficiency up to 96.5% for reduced energy loss
-
Dynamic load management to optimise charging performance
-
CCS2 connector with 5 m charging cable
-
7-inch colour touchscreen for intuitive user interaction
-
Multiple authentication options including RFID and Plug & Play
-
Low noise operation (<50 dB) suitable for indoor and outdoor locations
-
IP65 enclosure with C5 anti-corrosion protection for long service life
| Specification | Value |
|---|---|
| Product Type | DC Fast EV Charger |
| Model | IDC30E |
| DC Output Power | 30 kW |
| DC Output Voltage Range | 200 – 1000 Vdc |
| Max. DC Output Current | 80 A |
| Connector Type | CCS2 |
| Cable Length | 5 m |
| Number of EVs Served | 1 |
| AC Grid Voltage | 3 / N / PE, 400 Vac (±10%) |
| Nominal Grid Frequency | 50 Hz |
| Grid Frequency Range | 45 – 55 Hz |
| Rated Input Current | 46 A |
| Max. Input Current | 52 A |
| Power Factor | ≥ 0.99 |
| Max. Efficiency | 96.5% |
| Standby Self-Consumption | ≤ 32 W |
| Display | 7-inch colour touchscreen |
| Authentication | RFID card, Plug & Play, Auto-charge |
| Communication Interface | 4G, Ethernet, WLAN |
| Communication Protocol | OCPP 1.6J (ready for 2.0.1) |
| Energy Metering | DC metering (CE compliant) |
| Protection Rating | IP65 |
| Anti-Corrosion Rating | C5 |
| Operating Temperature Range | −35 °C to +55 °C |
| Relative Humidity | 5 – 95% (non-condensing) |
| Cooling Method | Smart forced air cooling |
| Noise Level | ≤ 50 dB(A) |
| Dimensions (W × H × D) | 500 × 800 × 242 mm |
| Weight | 53 kg |
| Installation Method | Wall-mount (standard), stand or trolley (optional) |
| Compliance | EN IEC 61851-1, EN 61851-24, IEC 61851-1 / 23 / 24 |
| Warranty | 3 years (standard) |
