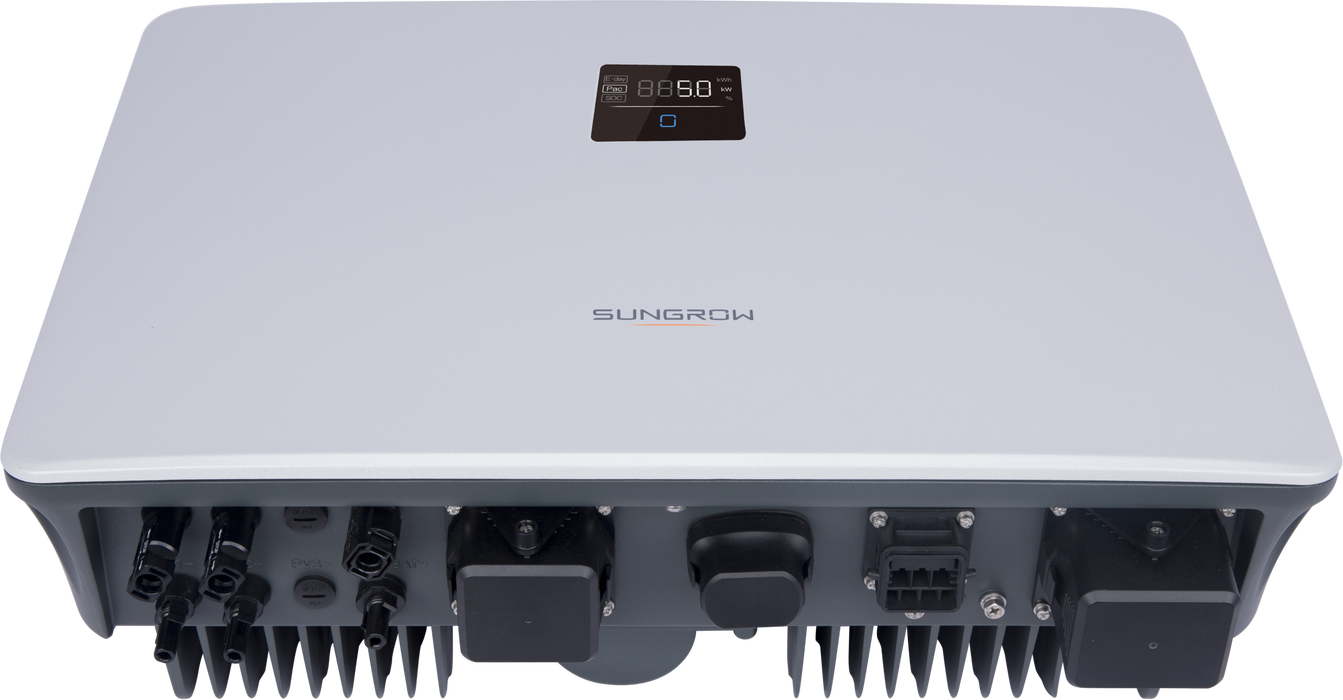

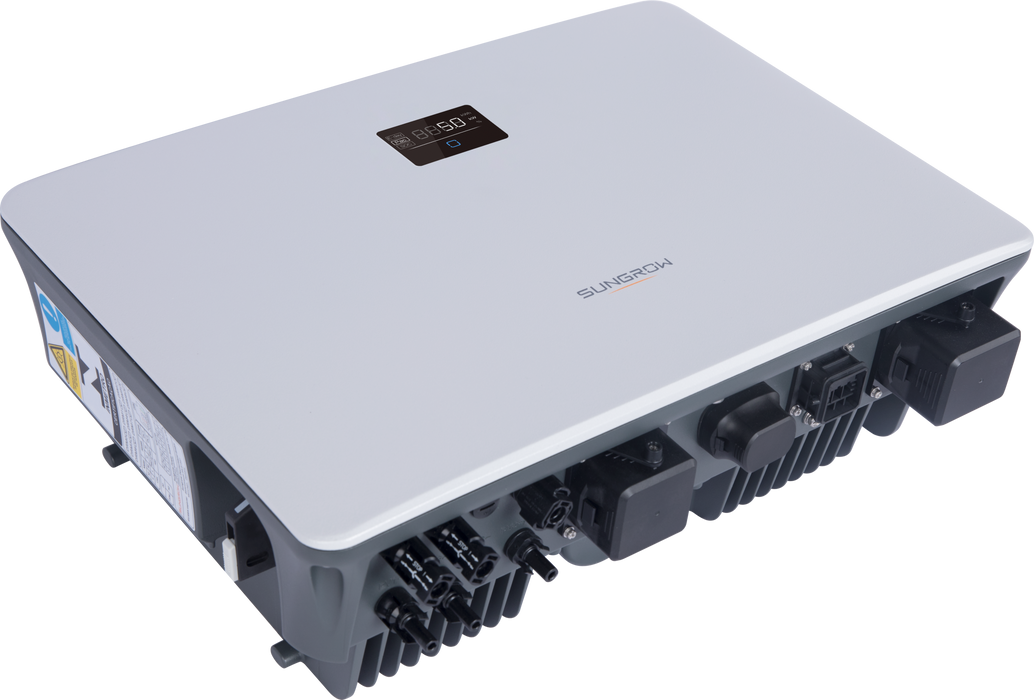

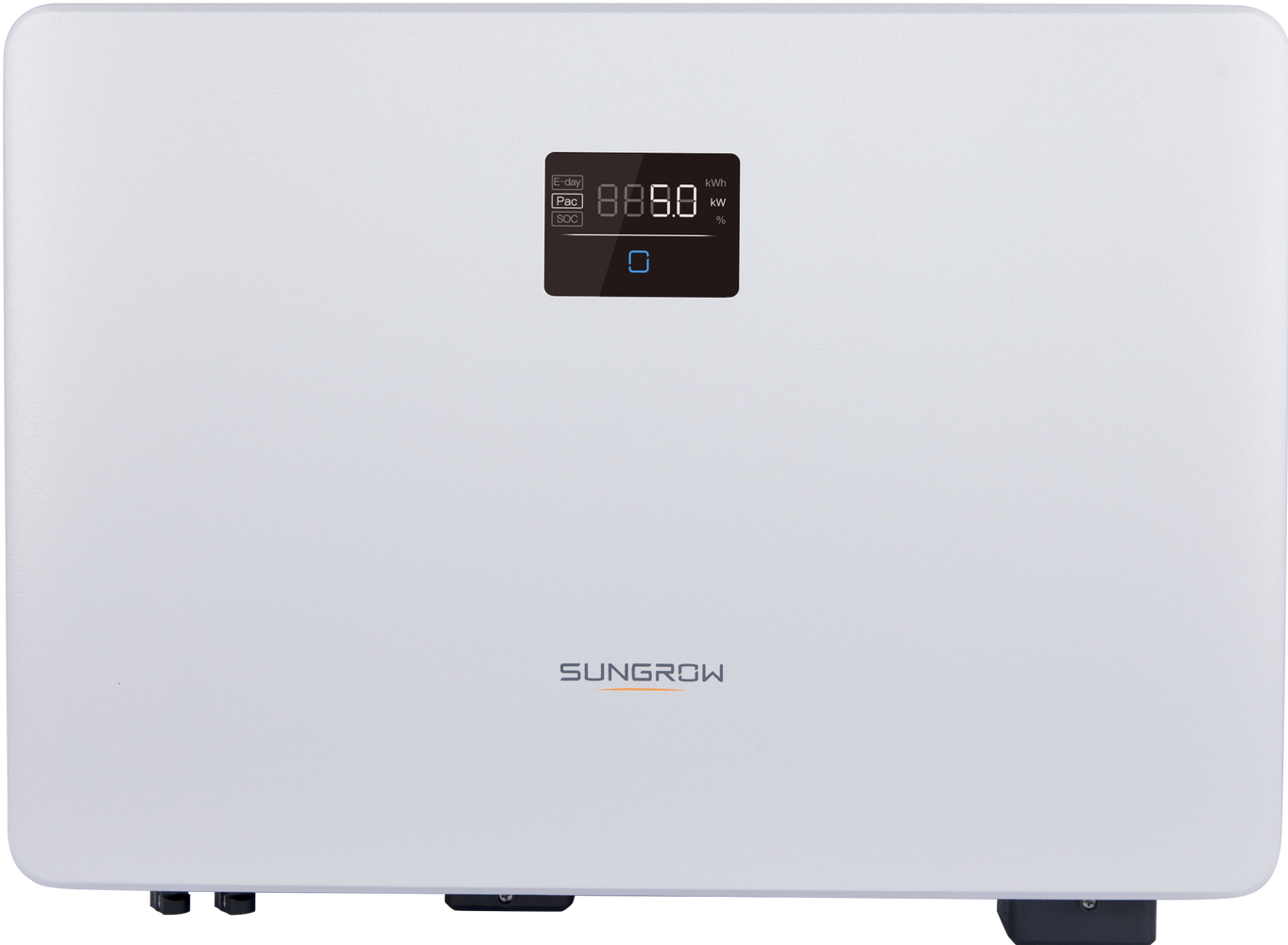

SUNGROW - SINGLE-PHASE HV HYBRID INVERTER - 5KW
- Description
- Key Features
- Technical Specifications
The Sungrow SH5.0RS-ADA is a compact single-phase hybrid inverter designed to integrate solar generation, battery storage, and backup power in one streamlined solution. Ideal for both new installations and retrofit applications, it supports fast charging and discharging while enabling seamless backup operation during outages. With intelligent energy management, robust safety protection, and an installer-friendly design, the SH5.0RS-ADA delivers reliable performance and increased household energy independence.
Included in box: Plastic plate + DTSU666-20 (With CT) + WiNet-S
-
5.0 kW single-phase hybrid inverter with battery integration
-
Seamless transition to backup mode for power outage protection
-
Wide battery voltage range (80–460 V) for flexible storage compatibility
-
Fast charge and discharge capability to maximise self-consumption
-
Built-in energy management system (EMS) for optimised energy control
-
Integrated Type II DC & AC surge protection
-
Plug-and-play installation with compact, lightweight design
-
Real-time monitoring via iSolarCloud on app and web
| Specification | Value |
|---|---|
| Model | SH5.0RS-ADA |
| Rated AC Output Power | 5,000 W |
| Max. AC Output Apparent Power | 5,000 VA |
| Phase Configuration | Single-phase |
| Max. DC Input Voltage | 600 V |
| MPPT Operating Voltage Range | 40 – 560 V DC |
| Number of MPPTs | 2 |
| Max. PV Input Current | 32 A (16 A / 16 A) |
| Max. DC Short-Circuit Current | 40 A (20 A / 20 A) |
| Battery Type | Li-ion |
| Battery Voltage Range | 80 – 460 V |
| Max. Charge / Discharge Current | 30 A / 30 A |
| Communication | Ethernet / WLAN / RS485 / DI / DO |
| Protection Rating | IP65 |
| Cooling Method | Natural cooling |
| Operating Temperature Range | −25 °C to +60 °C |
| Mounting Method | Wall-mounting bracket |
| Warranty | As per Sungrow inverter warranty documentation |
| Compliance | IEC / EN 62109-1/2 |
