SUNGROW - THREE-PHASE HV HYBRID INVERTER - 20KW
- Description
- Key Features
- Technical Specifications

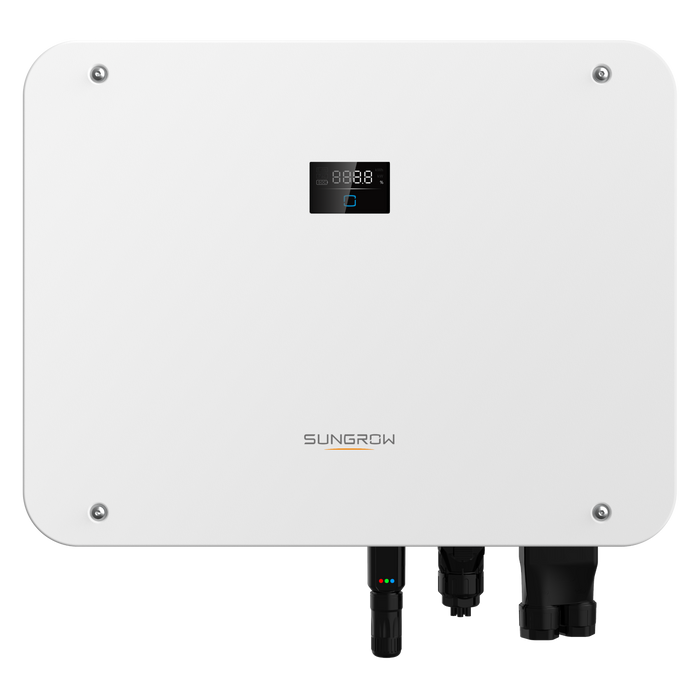

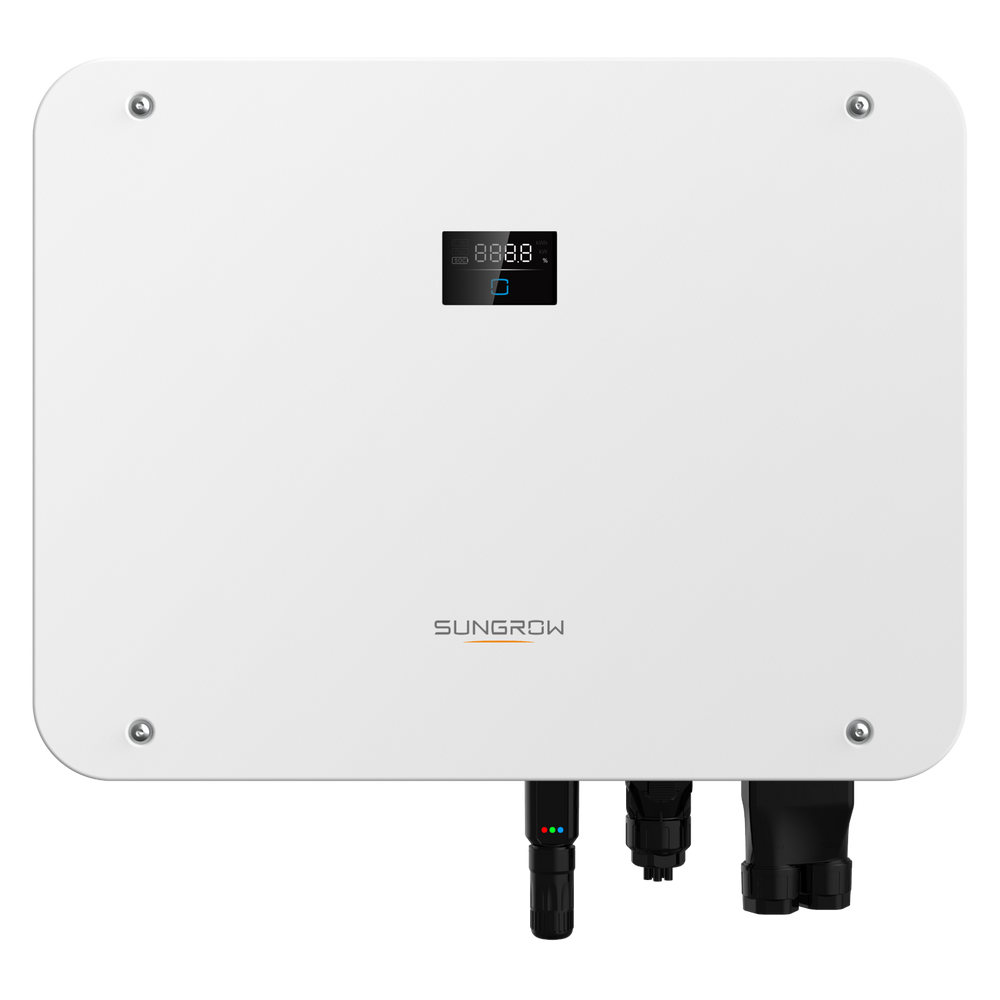

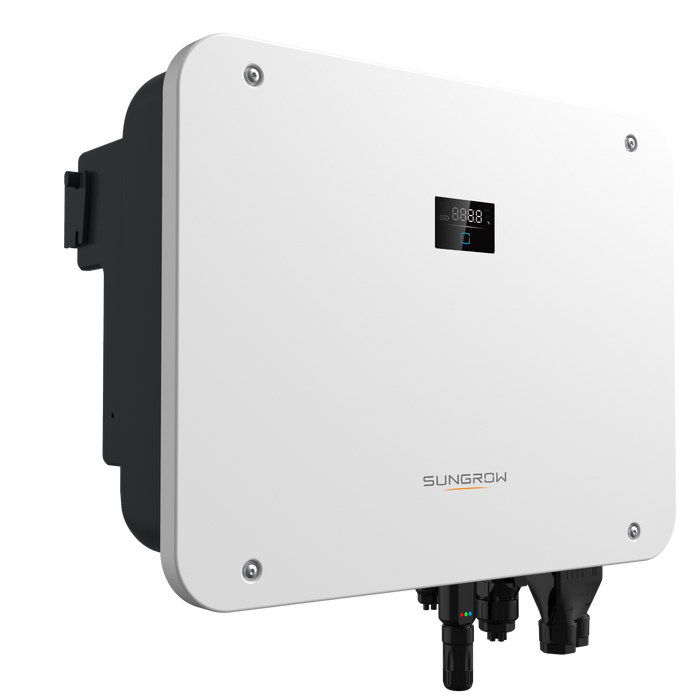

The Sungrow SH20T is a powerful three-phase hybrid inverter designed for large residential and light commercial energy storage systems. Integrating solar generation, battery storage, and full backup functionality, it ensures reliable power supply during grid outages while maximising self-consumption. With high charge and discharge capability, flexible system design, and installer-friendly features, the SH20T delivers dependable performance for demanding hybrid applications.
-
20 kW three-phase hybrid inverter with battery integration
-
Built-in bypass for whole-home backup capability
-
Seamless transition to backup mode (<10 ms) during power outages
-
Supports 100% unbalanced output in both on-grid and backup modes
-
High charge and discharge current capability for larger loads
-
Plug-and-play installation for fast commissioning
-
Quiet operation suitable for indoor or outdoor installation
-
Advanced safety protection with IP65 and C5 corrosion rating
| Specification | Value |
|---|---|
| Model | SH20T |
| Rated AC Output Power | 20,000 W |
| Rated AC Output Apparent Power | 20,000 VA |
| Phase Configuration | Three-phase |
| Max. PV Input Voltage | 1,000 V |
| MPPT Operating Voltage Range | 150 – 950 V DC |
| Number of MPPTs | 3 |
| Max. PV Input Current | 30 A |
| Battery Type | Li-ion |
| Battery Voltage Range | 100 – 700 V |
| Max. Charge / Discharge Current | 50 A / 50 A |
| Backup Switch Time | < 10 ms |
| Rated Backup Output Power | 20,000 W |
| Peak Backup Output Power | Up to 32,000 VA (10 s) |
| Communication | RS485 / WLAN / Ethernet / CAN |
| Protection Rating | IP65 |
| Cooling Method | Natural convection |
| Operating Temperature Range | −25 °C to +60 °C |
| Dimensions (W × H × D) | 620 × 480 × 245 mm |
| Weight | As per Sungrow specification |
| Mounting Method | Wall-mounting bracket |
| Compliance | IEC / EN 62109 |
