SUNGROW - THREE PHASE PV INVERTER - 10KW
- Description
- Key Features
- Technical Specifications

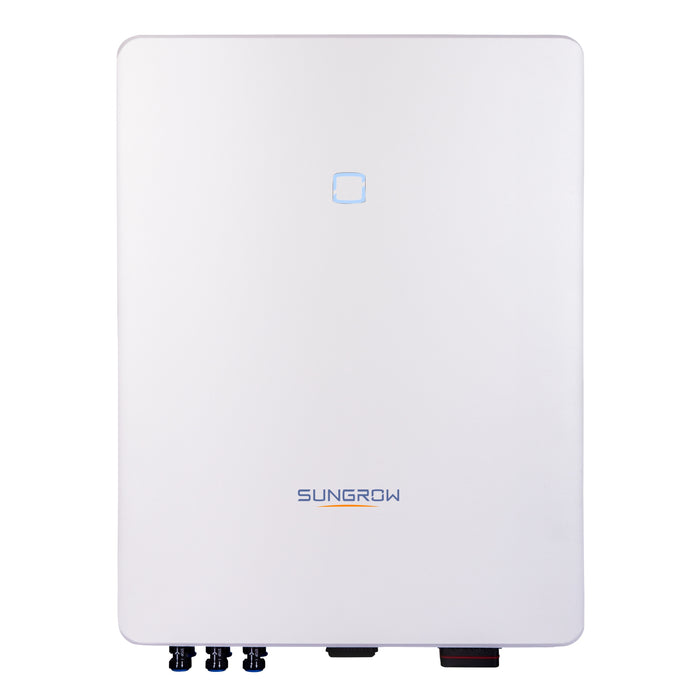

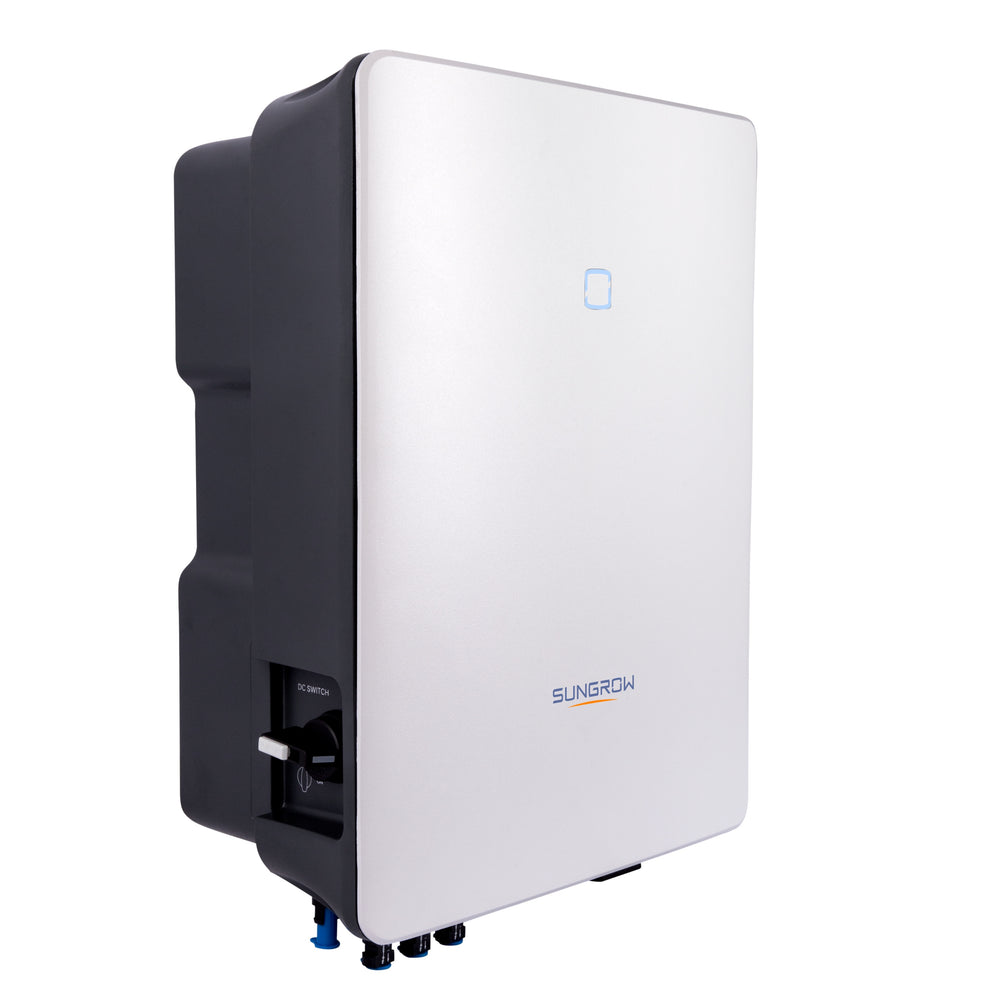

The Sungrow SG10RT is a compact three-phase string inverter engineered for high efficiency, fast installation, and long-term reliability. Designed to maximise PV yield across a wide voltage range, it supports modern high-power and bifacial modules while offering advanced monitoring and protection features. With smart commissioning, robust safety design, and durable outdoor construction, the SG10RT is a dependable solution for residential and small commercial solar installations.
Included in box: Metal Cover on DC part only + WiNet-S
-
10 kW three-phase output for residential and small commercial PV systems
-
Wide MPPT voltage range for improved energy harvest
-
High efficiency with European efficiency up to 98.1%
-
Integrated AFCI for enhanced fire protection
-
Built-in Type II DC & AC surge protection
-
Smart IV curve scanning and 24/7 live monitoring
-

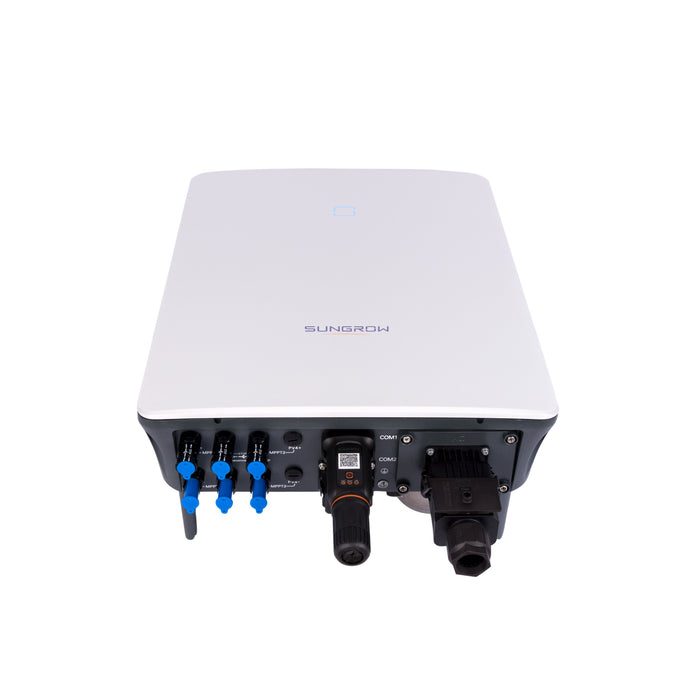

Plug-and-play connectors for fast, installer-friendly commissioning
-
IP65 enclosure with C5 anti-corrosion protection for outdoor durability
| Specification | Value |
|---|---|
| Model | SG10RT |
| Rated AC Output Power | 10,000 W |
| Max. AC Output Apparent Power | 10,000 VA |
| Phase Configuration | Three-phase |
| Max. DC Input Voltage | 1,100 V |
| MPPT Operating Voltage Range | 160 – 1,000 V DC |
| Number of MPPTs | 2 |
| Max. PV Input Current | 48 A (32 A / 16 A) |
| Max. DC Short-Circuit Current | 60 A (40 A / 20 A) |
| European Efficiency | 98.1% |
| Communication | WLAN / Ethernet / RS485 / DI / DO |
| Protection Rating | IP65 |
| Corrosion Protection | C5 |
| Cooling Method | Natural cooling |
| Operating Temperature Range | −25 °C to +60 °C |
| Dimensions (W × H × D) | 370 × 480 × 195 mm |
| Weight | 18 kg |
| Mounting Method | Wall-mounting bracket |
| Warranty | As per Sungrow inverter warranty documentation |
| Compliance | IEC 62109-1/2 |
