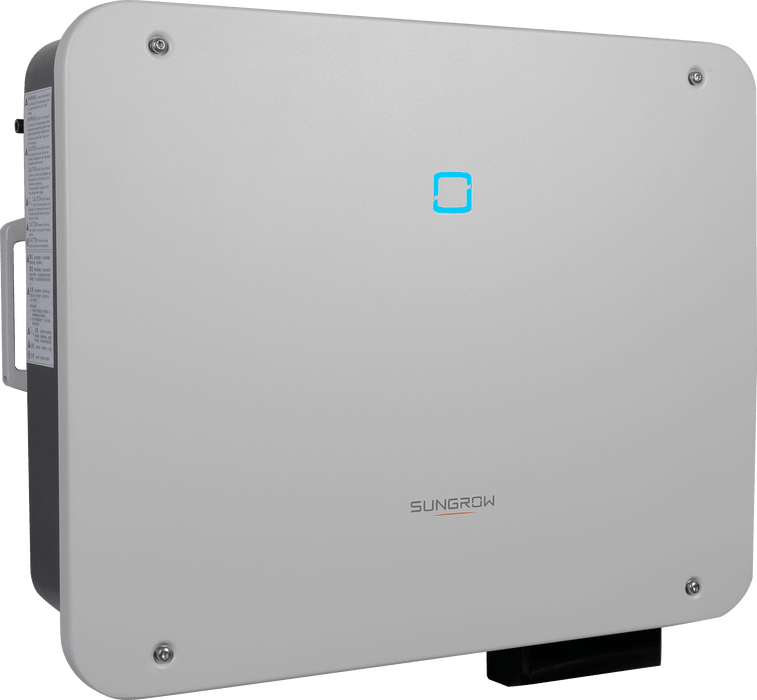

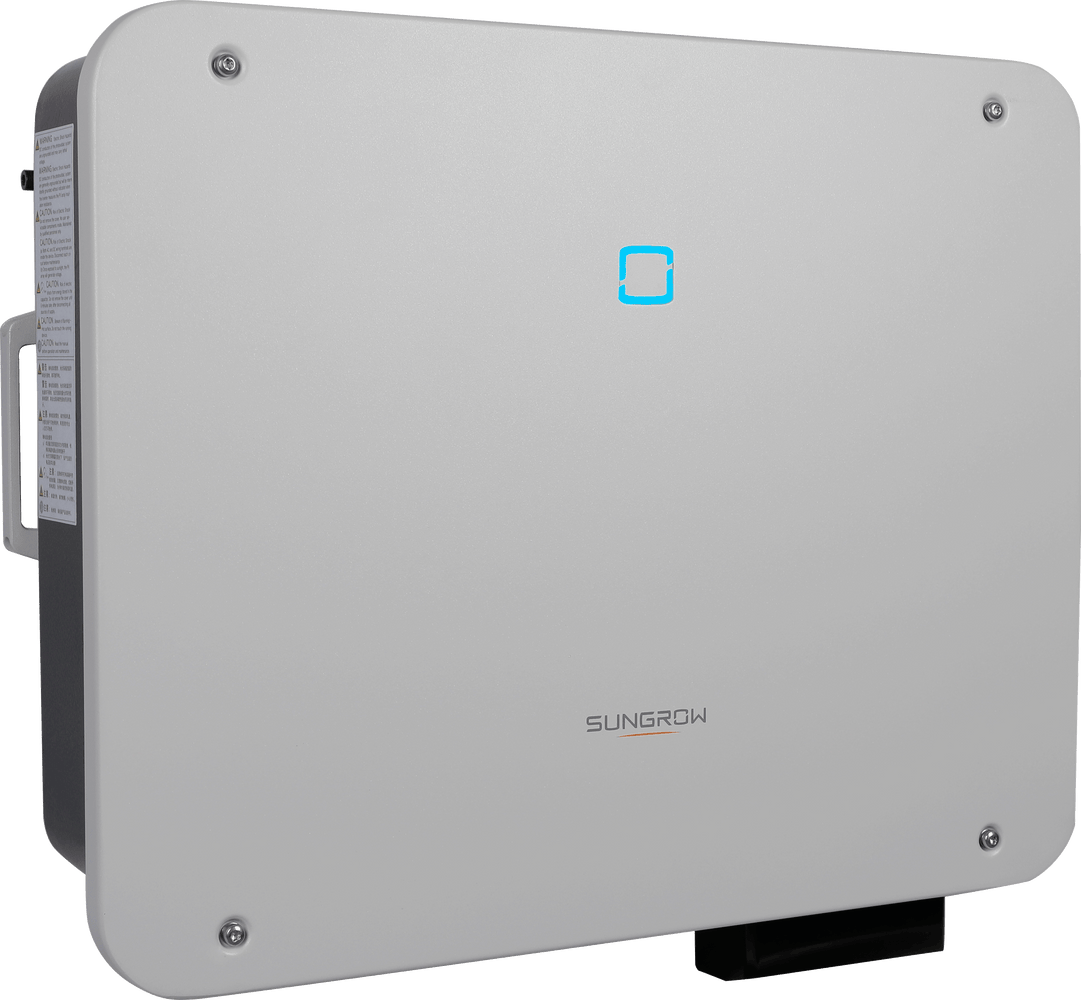

SUNGROW - THREE PHASE PV INVERTER - 29.9KW
SUNGROW - THREE PHASE PV INVERTER - 29.9KW

SUNGROW - THREE PHASE PV INVERTER - 29.9KW

SKU SG30CX P2
Call for availability
  • Description
  • Key Features
  • Technical Specifications

The Sungrow SG30CX-P2 is a powerful 30kW three-phase string inverter engineered for commercial solar installations. Designed with advanced multi-MPPT technology and dynamic shading optimisation, it ensures maximum energy harvest across complex roof layouts. With up to 98.5% efficiency, robust IP66 protection and intelligent diagnostic capabilities, the SG30CX-P2 delivers reliable performance, simplified installation and long-term system confidence.

Included in box: Metal Cover + EYEM4 Wifi Version

SG30/50CX P2 Data Sheet

  • 30kW three-phase output – ideal for commercial rooftop PV systems

  • Multi-MPPT design (1000Vdc system) – optimised generation across varied string configurations

  • Up to 98.5% maximum efficiency – maximise system yield and ROI

  • DC 15A current input – compatible with 500W+ high-power PV modules

  • Dynamic shading optimisation mode – improved performance in partially shaded conditions

  • Smart IV Curve Diagnosis – advanced remote fault detection and troubleshooting

  • Grid fault record function – simplified O&M and system monitoring

  • IP66 protection & C5 anti-corrosion rating – durable outdoor performance

  • DC Type I+II SPD & AC Type II SPD – enhanced surge protection

  • Support for AFCI 2.0 – improved arc fault detection for increased safety

  • Plug & play installation with reduced weight – faster commissioning and handling

Specification Value
Rated AC Output Power 30 kW
Rated AC Output Apparent Power 30 kVA
Maximum AC Output Current 43.3 A
Rated AC Voltage 3 / N / PE, 230 V / 400 V
AC Voltage Range 312 V – 480 V
Rated Grid Frequency 50 Hz
Grid Frequency Range 45 Hz – 55 Hz
Maximum Efficiency 98.5%
European Efficiency 98.3%
Maximum PV Input Voltage 1100 V
Startup Voltage 200 V
Rated PV Input Voltage 600 V
MPPT Voltage Range 160 V – 1000 V
Number of MPPTs 3
Max. PV Input Current 30 A
Max. DC Short-Circuit Current 40 A
Protection Rating IP66
Surge Protection DC Type I+II / AC Type II
Cooling Method Smart forced air cooling
Operating Temperature Range -30°C to 60°C
Max. Operating Altitude 4000 m
Communication RS485 / Optional: WLAN, Ethernet
DC Connection Type Evo2 (Max. 6 mm²)
Dimensions (W × H × D) 645 × 575 × 245 mm
Compliance IEC 62109, IEC 61727, IEC 62116, IEC 60068, IEC 61683
