SUNGROW - THREE PHASE PV INVERTER - 50KW
SKU SG50CX P2
Call for availability
- Description
- Key Features
- Technical Specifications

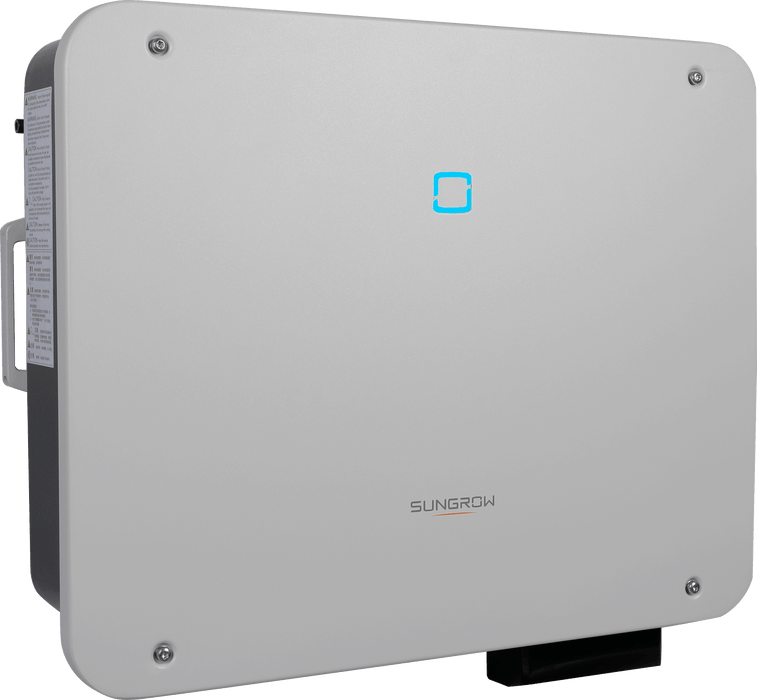

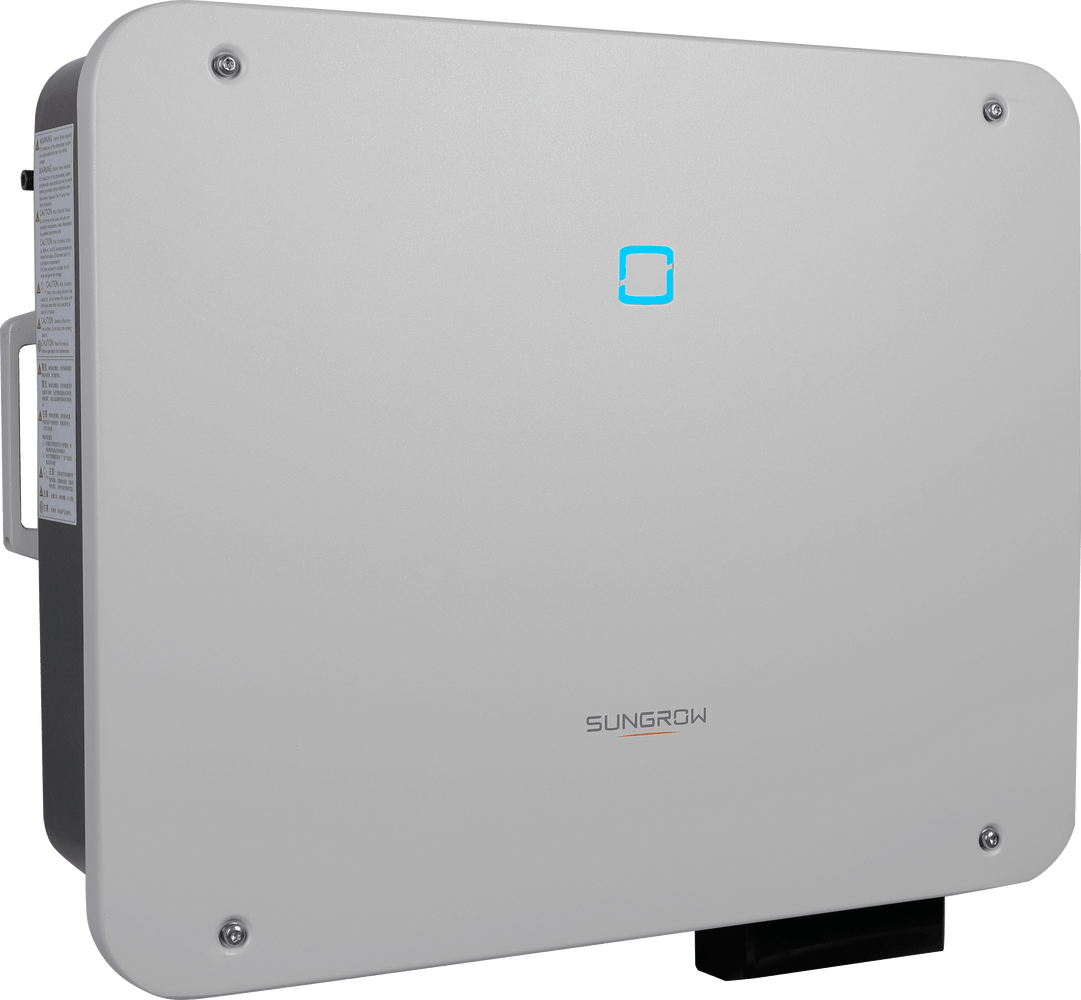

The Sungrow SG50CX-P2 is a high-performance 50kW three-phase string inverter designed for commercial and industrial PV systems. With advanced multi-MPPT architecture, dynamic shading optimisation and up to 98.5% efficiency, it maximises energy harvest even in complex installations. Engineered for durability and simplified installation, the SG50CX-P2 delivers intelligent diagnostics, enhanced safety protection and long-term reliability in demanding environments
Included in box: Metal Cover + EYEM4 Wifi Version
- 50kW three-phase output – ideal for commercial rooftop and ground-mount systems
- Multi-MPPT design (1000Vdc system) – optimised performance across varied string layouts
- Up to 98.5% maximum efficiency – maximise return on investment
- DC 15A current input – compatible with 500W+ high-power PV modules
- Dynamic shading optimisation mode – improved yield in partially shaded conditions
- Smart IV Curve Diagnosis & grid fault record – faster remote fault detection and O&M
- IP66 protection & C5 anti-corrosion rating – built for harsh outdoor environments
- DC Type I+II SPD & AC Type II SPD – enhanced surge protection
- AFCI 2.0 support – advanced arc fault detection for improved system safety
- Plug & play installation with reduced weight – faster handling and commissioning
| Specification | Value |
|---|---|
| Rated AC Output Power | 50 kW |
| Rated AC Output Apparent Power | 50 kVA |
| Maximum AC Output Current | 72.5 A |
| Rated AC Voltage | 3 / N / PE, 230 V / 400 V |
| AC Voltage Range | 312 V – 480 V |
| Rated Grid Frequency | 50 Hz |
| Grid Frequency Range | 45 Hz – 55 Hz |
| Maximum Efficiency | 98.5% |
| European Efficiency | 98.3% |
| Maximum PV Input Voltage | 1100 V |
| Startup Voltage | 200 V |
| Rated PV Input Voltage | 600 V |
| MPPT Voltage Range | 160 V – 1000 V |
| Number of MPPTs | 4 |
| Max. PV Input Current | 30 A |
| Max. DC Short-Circuit Current | 40 A |
| Protection Rating | IP66 |
| Surge Protection | DC Type I+II / AC Type II |
| Cooling Method | Smart forced air cooling |
| Operating Temperature Range | -30°C to 60°C |
| Max. Operating Altitude | 4000 m |
| Communication | RS485 / Optional: WLAN, Ethernet |
| DC Connection Type | Evo2 (Max. 6 mm²) |
| Dimensions (W × H × D) | 645 × 575 × 245 mm |
| Compliance | IEC 62109, IEC 61727, IEC 62116, IEC 60068, IEC 61683 |
