SUNGROW - SINGLE-PHASE HV HYBRID INVERTER - 10KW
- Description
- Key Features
- Technical Specifications

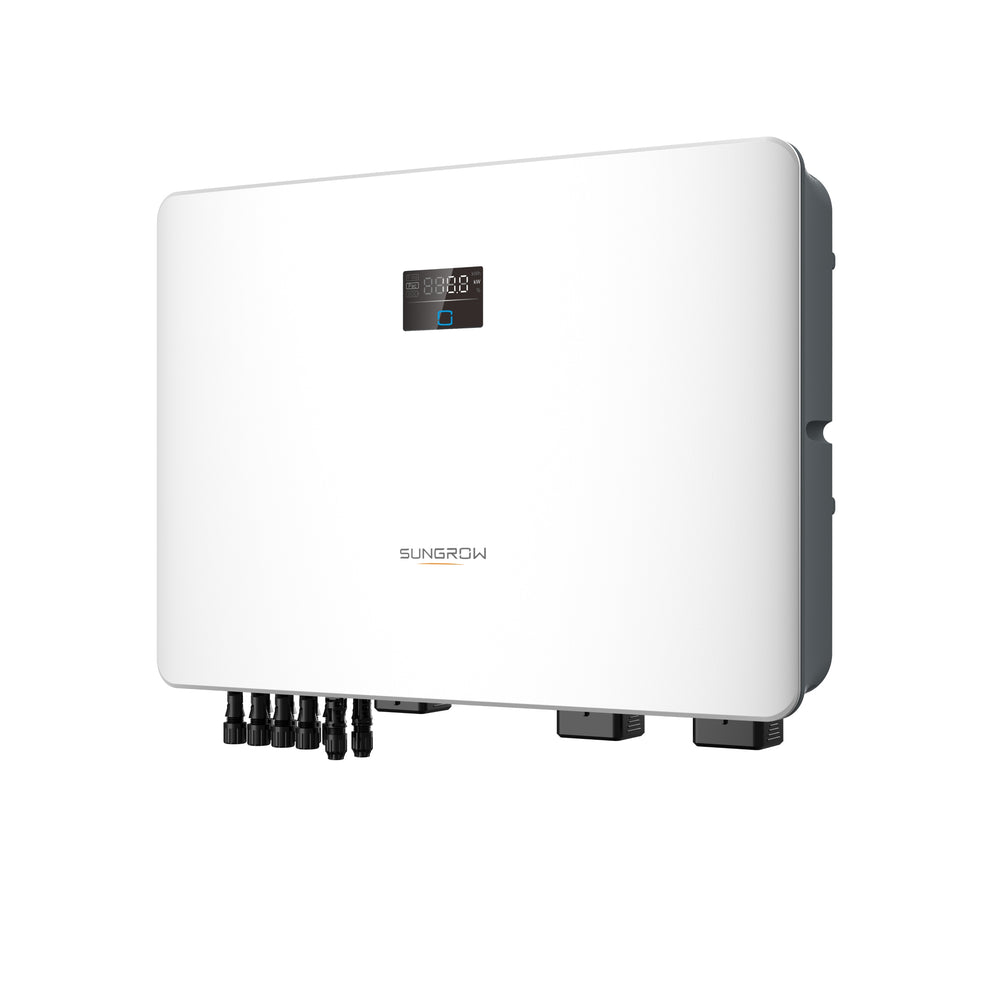

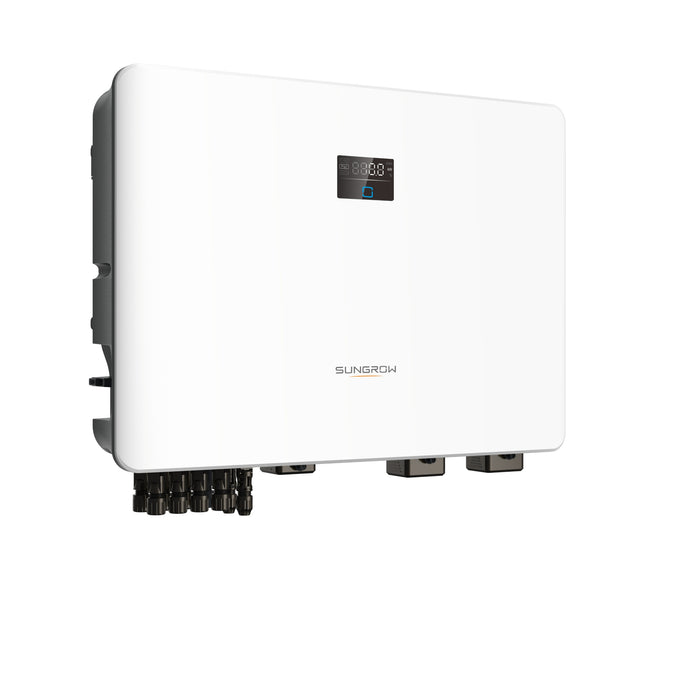

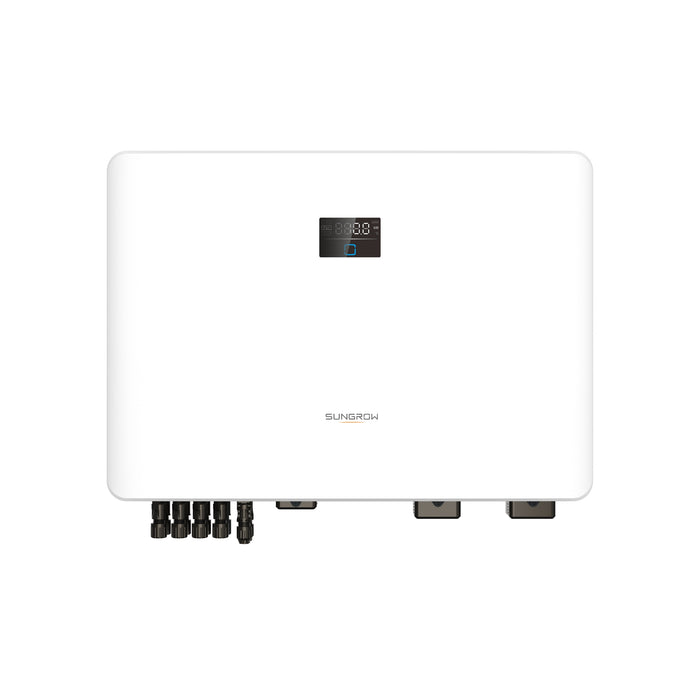

The Sungrow SH10.0RS is a high-capacity single-phase hybrid inverter designed to integrate solar generation, battery storage, and backup power in one streamlined solution. Ideal for larger residential systems and retrofit applications, it delivers fast charging and discharging, seamless backup transition, and intelligent energy management. With robust safety protection and a compact, installer-friendly design, the SH10.0RS supports greater energy independence and long-term system reliability.
-
10.0 kW single-phase hybrid inverter with battery integration
-
Seamless transition to backup mode for protection during power outages
-
Supports fast charging and discharging for higher self-consumption
-
Wide battery voltage range for flexible storage compatibility
-
Built-in energy management system (EMS) with advanced customisation
-
Integrated Type II DC & AC surge protection
-
Plug-and-play installation for faster commissioning
-
Real-time monitoring via iSolarCloud on app and web
| Specification | Value |
|---|---|
| Model | SH10.0RS |
| Rated AC Output Power | 10,000 W |
| Max. AC Output Apparent Power | 10,000 VA |
| Phase Configuration | Single-phase |
| Max. DC Input Voltage | 600 V |
| MPPT Operating Voltage Range | 40 – 560 V DC |
| Number of MPPTs | 4 |
| Max. PV Input Current | 64 A (16 A × 4) |
| Max. DC Short-Circuit Current | 80 A (20 A × 4) |
| Battery Type | Li-ion |
| Battery Voltage Range | 80 – 460 V |
| Max. Charge / Discharge Current | 50 A / 50 A |
| Backup Switch Time | < 10 ms |
| Communication | RS485 / WLAN / Ethernet / CAN / DI / DO |
| Protection Rating | IP65 |
| Cooling Method | Natural cooling |
| Operating Temperature Range | −25 °C to +60 °C |
| Dimensions (W × H × D) | 605 × 435 × 181 mm |
| Weight | 29 kg |
| Mounting Method | Wall-mounting bracket |
| Warranty | As per Sungrow inverter warranty documentation |
| Compliance | IEC / EN 62109 |
