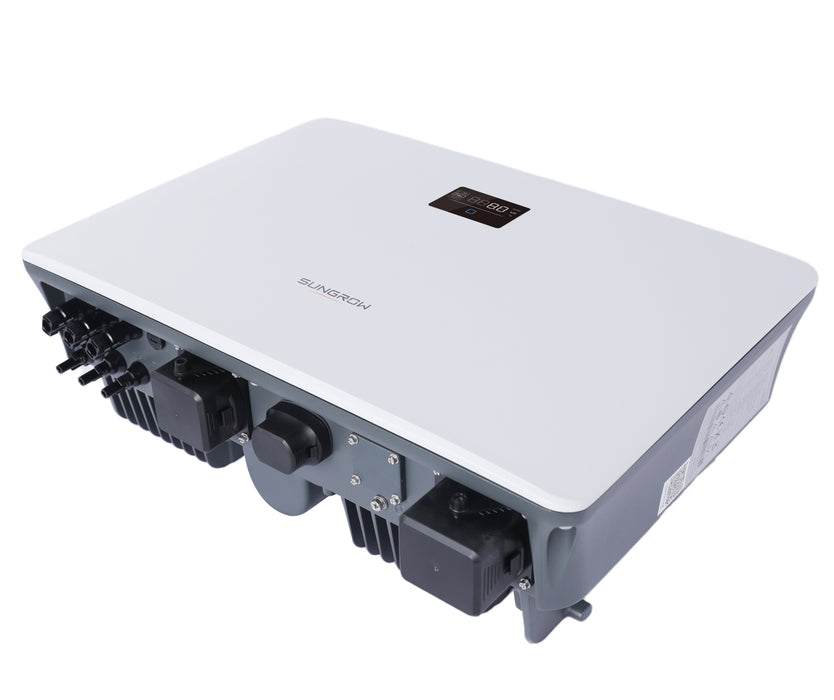

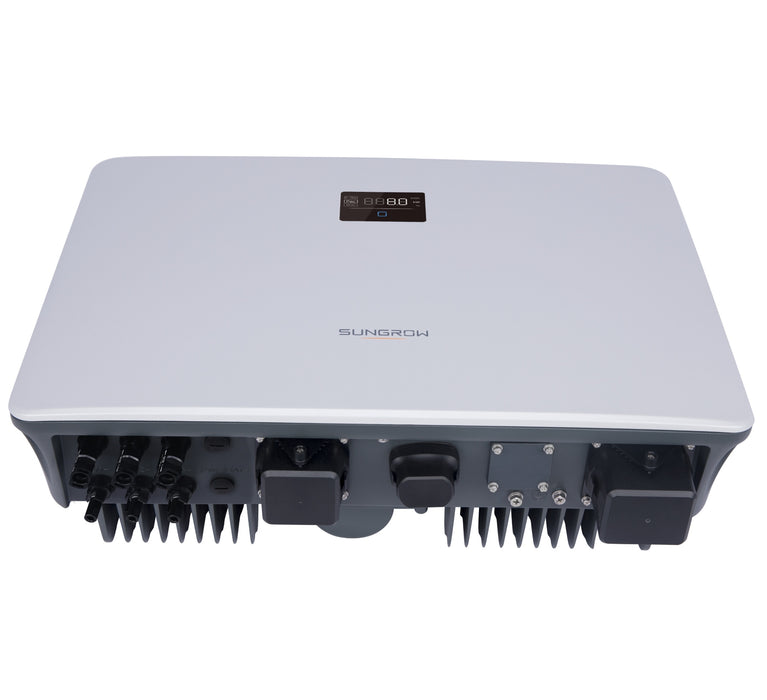

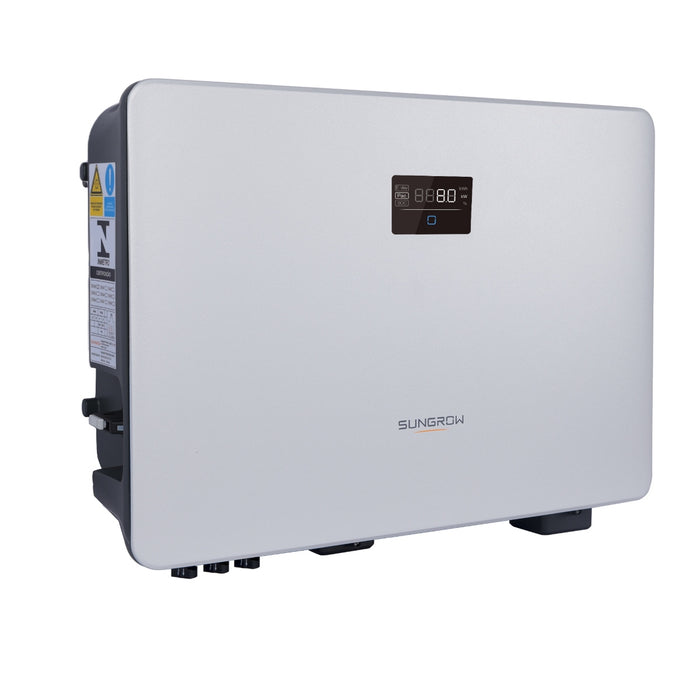

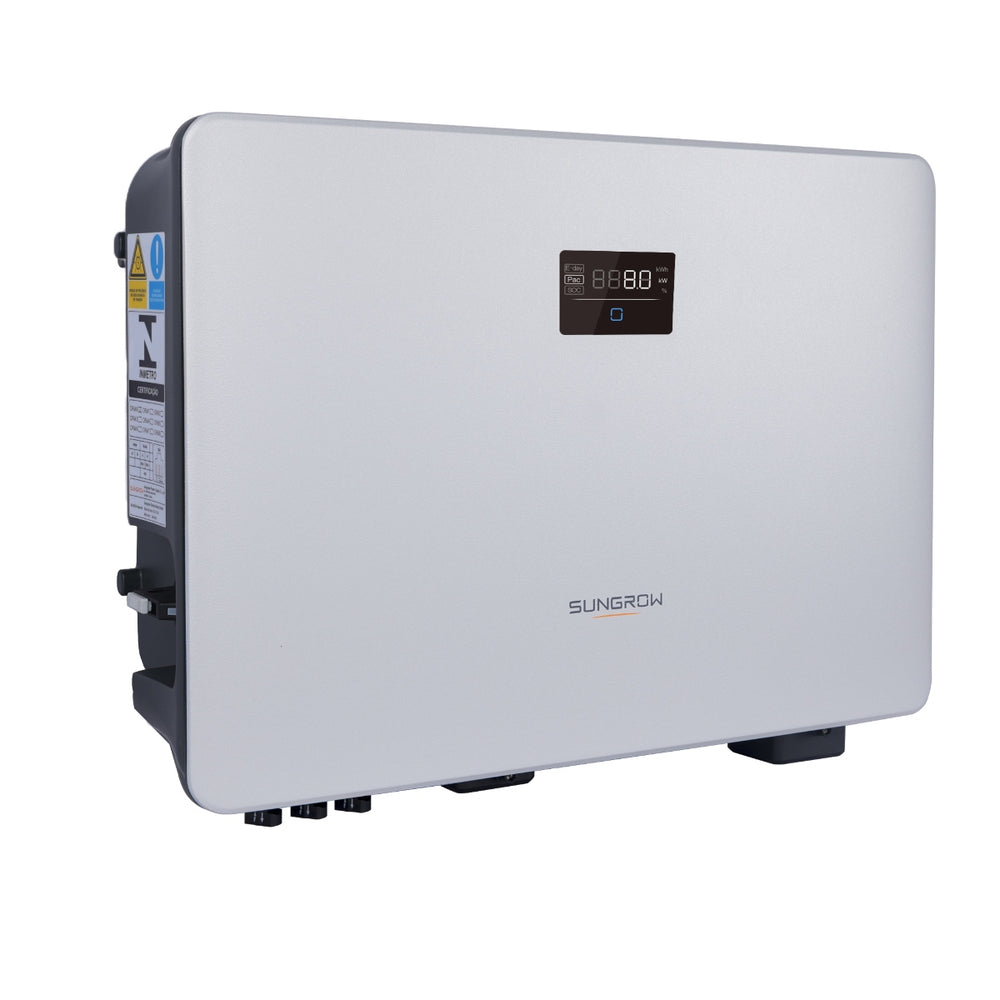

The Sungrow SH6.0RS-ADA is a single-phase hybrid inverter designed to deliver reliable solar generation, battery storage integration, and backup power in one compact solution. Suitable for both new installations and retrofit projects, it supports fast charging and discharging to maximise self-consumption while enabling seamless backup operation. With plug-and-play installation, intelligent energy management, and robust safety protection, the SH6.0RS-ADA offers dependable performance and simplified commissioning.
-
6.0 kW single-phase hybrid inverter with battery integration
-
Seamless transition to backup mode for power outage protection
-
Wide battery voltage range (80–460 V) for flexible storage compatibility
-
Fast charge and discharge capability to increase self-consumption
-
Built-in energy management system (EMS) with advanced control options
-
Integrated Type II DC & AC surge protection
-
Plug-and-play installation with compact, lightweight design
-
Real-time monitoring via iSolarCloud on app and web
| Specification | Value |
|---|---|
| Model | SH6.0RS-ADA |
| Rated AC Output Power | 6,000 W |
| Max. AC Output Apparent Power | 6,000 VA |
| Phase Configuration | Single-phase |
| Max. DC Input Voltage | 600 V |
| MPPT Operating Voltage Range | 40 – 560 V DC |
| Number of MPPTs | 2 |
| Max. PV Input Current | 32 A (16 A / 16 A) |
| Max. DC Short-Circuit Current | 40 A (20 A / 20 A) |
| Battery Type | Li-ion |
| Battery Voltage Range | 80 – 460 V |
| Max. Charge / Discharge Current | 30 A / 30 A |
| Communication | Ethernet / WLAN / RS485 / DI / DO |
| Protection Rating | IP65 |
| Cooling Method | Natural cooling |
| Operating Temperature Range | −25 °C to +60 °C |
| Mounting Method | Wall-mounting bracket |
| Warranty | As per Sungrow inverter warranty documentation |
| Compliance | IEC / EN 62109-1/2 |
