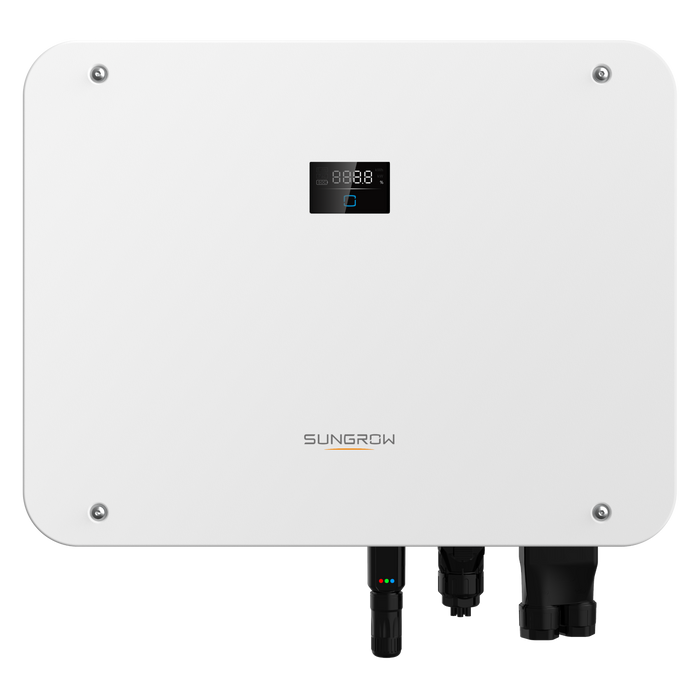

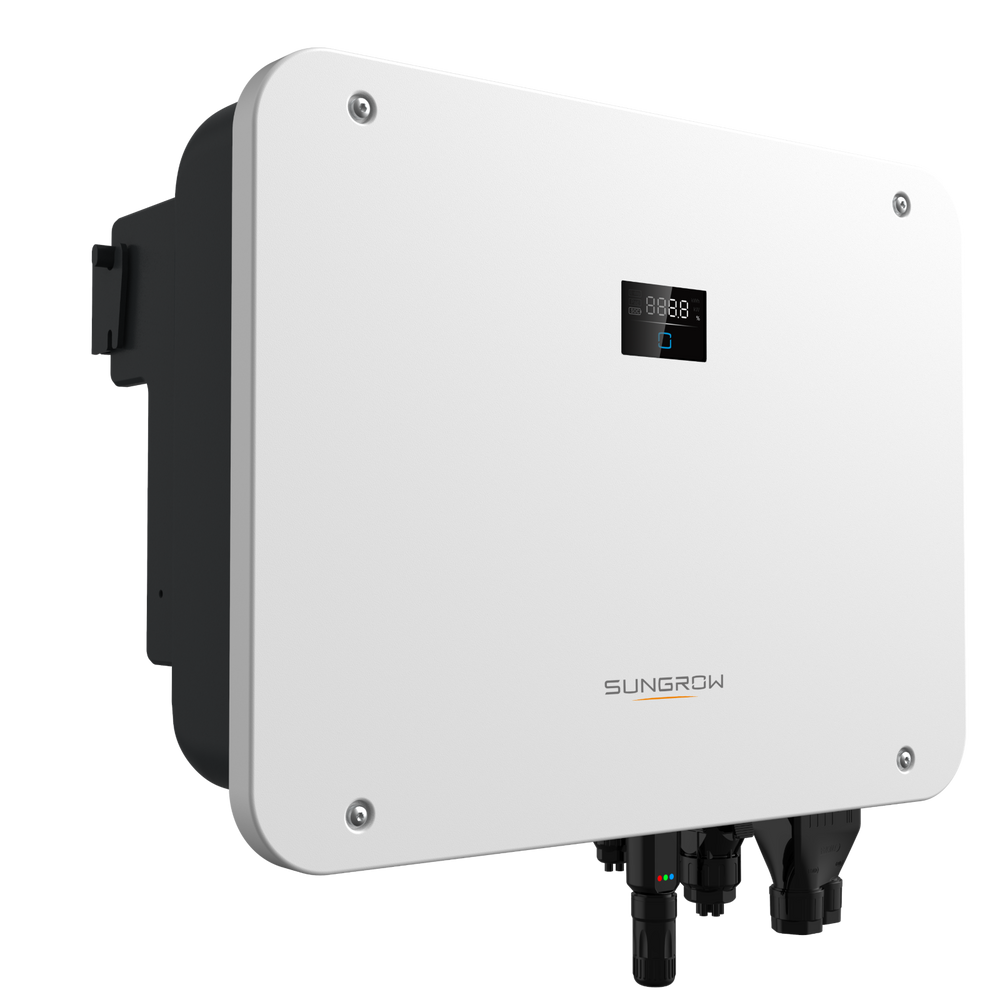

SUNGROW - THREE-PHASE HV HYBRID INVERTER - 10KW
- Description
- Key Features
- Technical Specifications
The Sungrow SH10T is a powerful three-phase hybrid inverter designed to integrate solar generation, battery storage, and full backup power in one compact solution. Engineered for residential and light commercial systems, it delivers seamless backup during grid outages while supporting high charge and discharge performance. With plug-and-play installation, quiet operation, and advanced safety protection, the SH10T enables greater energy independence and simplified system design.
-
10 kW three-phase hybrid inverter with battery integration
-
Built-in bypass for whole-home backup capability
-
Seamless transition to backup mode (<10 ms) during power outages
-
Supports 100% unbalanced output in both on-grid and backup modes
-
Fast charge and discharge performance for higher self-consumption
-
Plug-and-play installation for quick commissioning
-
Quiet operation suitable for indoor or outdoor installation
-
Integrated safety protection with IP65 and C5 corrosion rating
| Specification | Value |
|---|---|
| Model | SH10T |
| Rated AC Output Power | 10,000 W |
| Rated AC Output Apparent Power | 10,000 VA |
| Phase Configuration | Three-phase |
| Max. PV Input Voltage | 1,000 V |
| MPPT Operating Voltage Range | 150 – 950 V DC |
| Number of MPPTs | 2 |
| Max. PV Input Current | 30 A |
| Battery Type | Li-ion |
| Battery Voltage Range | 100 – 700 V |
| Max. Charge / Discharge Current | 50 A / 50 A |
| Backup Switch Time | < 10 ms |
| Rated Backup Output Power | 10,000 W |
| Peak Backup Output Power | Up to 15,000 VA (10 s) |
| Communication | RS485 / WLAN / Ethernet / CAN |
| Protection Rating | IP65 |
| Cooling Method | Natural convection |
| Operating Temperature Range | −25 °C to +60 °C |
| Dimensions (W × H × D) | 620 × 480 × 195 mm |
| Weight | 32 kg |
| Mounting Method | Wall-mounting bracket |
| Warranty | As per Sungrow inverter warranty documentation |
| Compliance | IEC / EN 62109 |
