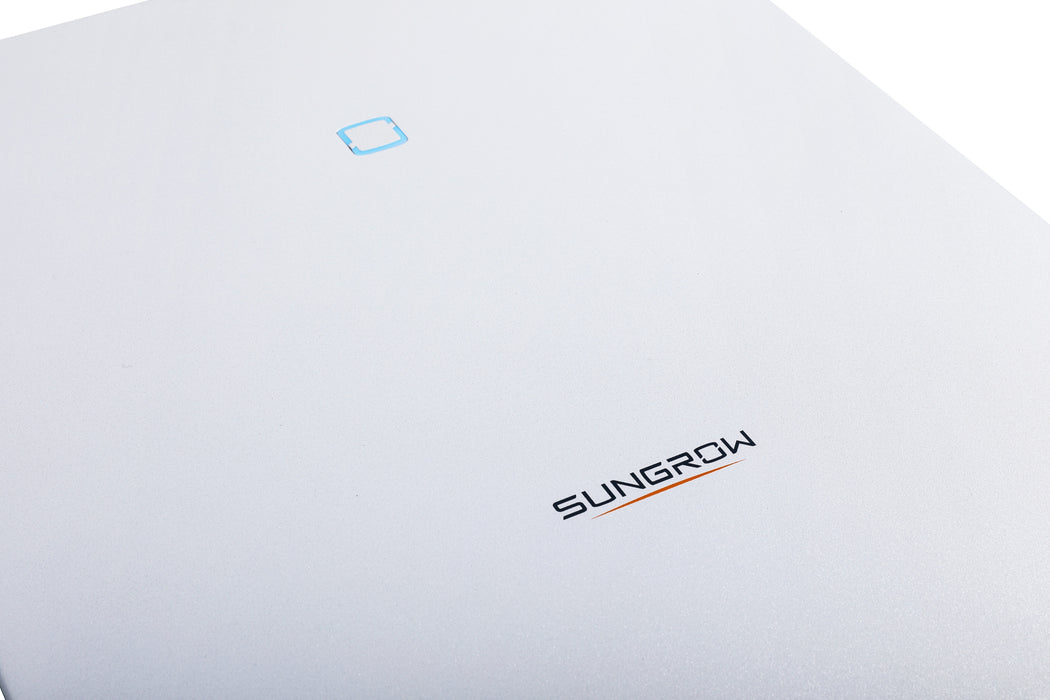

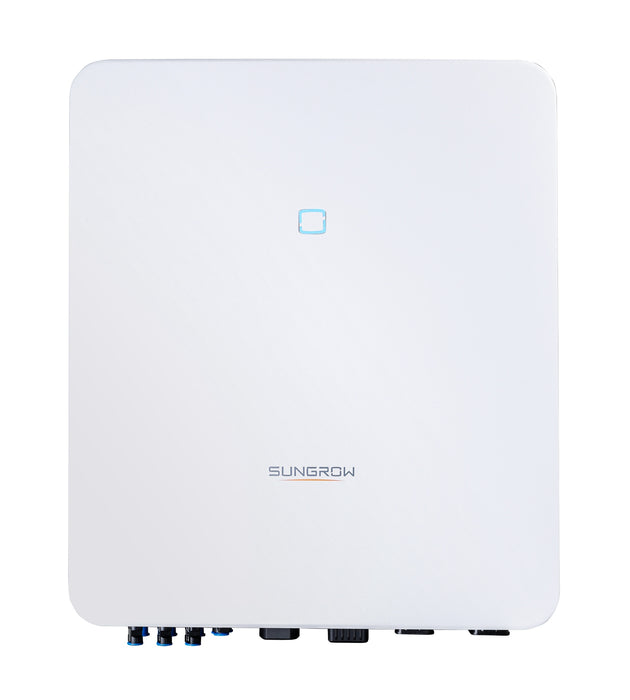

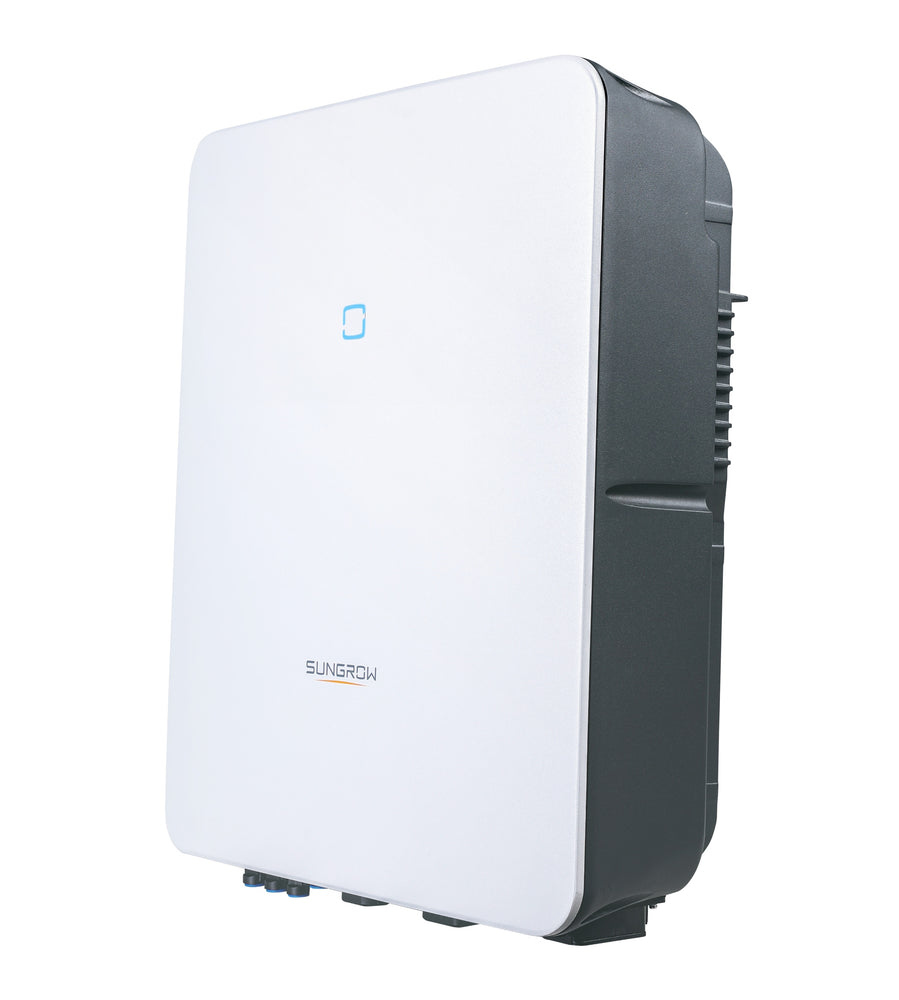

SUNGROW - THREE-PHASE HV HYBRID INVERTER - 10KW
- Description
- Key Features
- Technical Specifications
The Sungrow SH10RT (ADA) is a three-phase hybrid inverter designed to integrate solar generation, battery storage, and backup power in a single, compact solution. Built for residential and light commercial hybrid systems, it enables seamless transition to backup mode during grid outages while supporting fast charging and discharging. With intelligent energy management, robust safety protection, and installer-friendly design, the SH10RT (ADA) delivers reliable performance and increased energy independence.
-
10 kW three-phase hybrid inverter with battery integration
-
Seamless transition to backup mode for outage protection
-
Supports 100% unbalanced loads in backup operation
-
Wide battery voltage range (150–600 V) for flexible storage options
-
Fast charge and discharge capability to maximise self-consumption
-
Built-in energy management system (EMS) for optimised control
-
Integrated Type II DC & AC surge protection
-
Plug-and-play connectors for fast, efficient installation
| Specification | Value |
|---|---|
| Model | SH10RT (ADA) |
| Rated AC Output Power | 10,000 W |
| Max. AC Output Apparent Power | 10,000 VA |
| Phase Configuration | Three-phase |
| Max. DC Input Voltage | 1,000 V |
| MPPT Operating Voltage Range | 150 – 950 V DC |
| Number of MPPTs | 2 |
| Max. PV Input Current | 30 A |
| Battery Type | Li-ion |
| Battery Voltage Range | 150 – 600 V |
| Max. Charge / Discharge Current | 30 A / 30 A |
| Backup Switch Time | < 20 ms |
| Communication | RS485 / WLAN / Ethernet / CAN / DI / DO |
| Protection Rating | IP65 |
| Cooling Method | Natural convection |
| Operating Temperature Range | −25 °C to +60 °C |
| Dimensions (W × H × D) | 460 × 540 × 170 mm |
| Weight | 27 kg |
| Mounting Method | Wall-mounting bracket |
| Warranty | As per Sungrow inverter warranty documentation |
| Compliance | IEC 62109-1/2, AS/NZS 4777.2:2020 |
