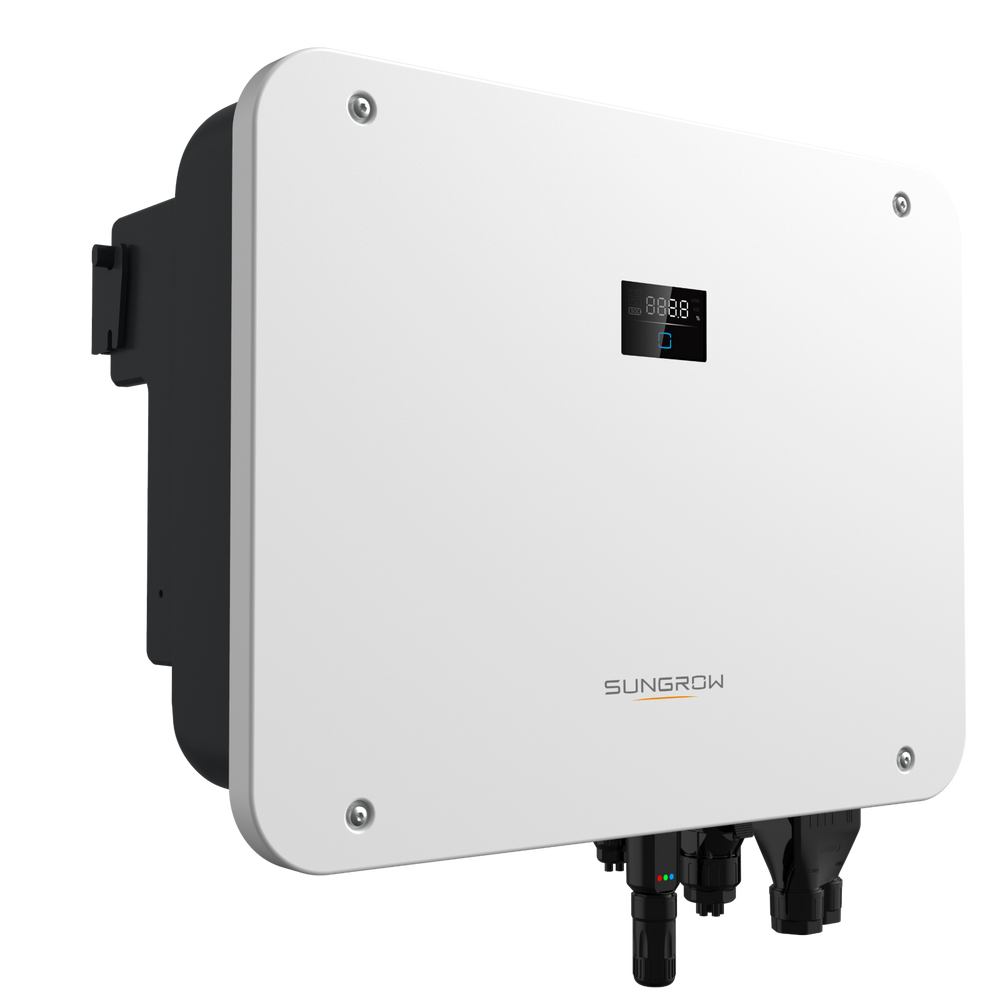

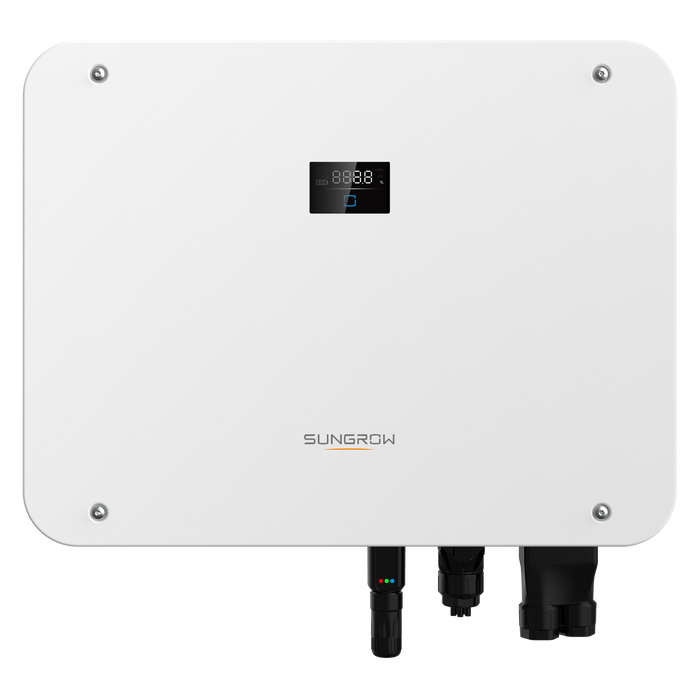

SUNGROW - THREE-PHASE HV HYBRID INVERTER - 25KW
- Description
- Key Features
- Technical Specifications
The Sungrow SH25T is a high-capacity three-phase hybrid inverter designed for large residential and light commercial energy storage systems. Combining solar generation, battery storage, and full backup functionality, it delivers reliable power continuity during grid outages while supporting high-demand loads. With fast charge and discharge performance, flexible system design, and installer-friendly features, the SH25T provides dependable energy independence for larger hybrid installations.
-
25 kW three-phase hybrid inverter with battery integration
-
Built-in bypass for whole-home backup functionality
-
Seamless transition to backup mode (<10 ms) during grid outages
-
Supports 100% unbalanced output in both on-grid and backup modes
-
High charge and discharge current capability for large energy demands
-
Plug-and-play installation for faster commissioning
-
Quiet operation suitable for indoor or outdoor installation
-
Advanced safety protection with IP65 and C5 corrosion rating
| Specification | Value |
|---|---|
| Model | SH25T |
| Rated AC Output Power | 25,000 W |
| Rated AC Output Apparent Power | 25,000 VA |
| Phase Configuration | Three-phase |
| Max. PV Input Voltage | 1,000 V |
| MPPT Operating Voltage Range | 150 – 950 V DC |
| Number of MPPTs | 3 |
| Max. PV Input Current | 30 A |
| Battery Type | Li-ion |
| Battery Voltage Range | 100 – 700 V |
| Max. Charge / Discharge Current | 50 A / 50 A |
| Backup Switch Time | < 10 ms |
| Rated Backup Output Power | 25,000 W |
| Peak Backup Output Power | Up to 36,500 VA (10 s) |
| Communication | RS485 / WLAN / Ethernet / CAN |
| Protection Rating | IP65 |
| Cooling Method | Natural convection |
| Operating Temperature Range | −25 °C to +60 °C |
| Dimensions (W × H × D) | 620 × 480 × 245 mm |
| Weight | As per Sungrow specification |
| Mounting Method | Wall-mounting bracket |
| Compliance | IEC / EN 62109 |
