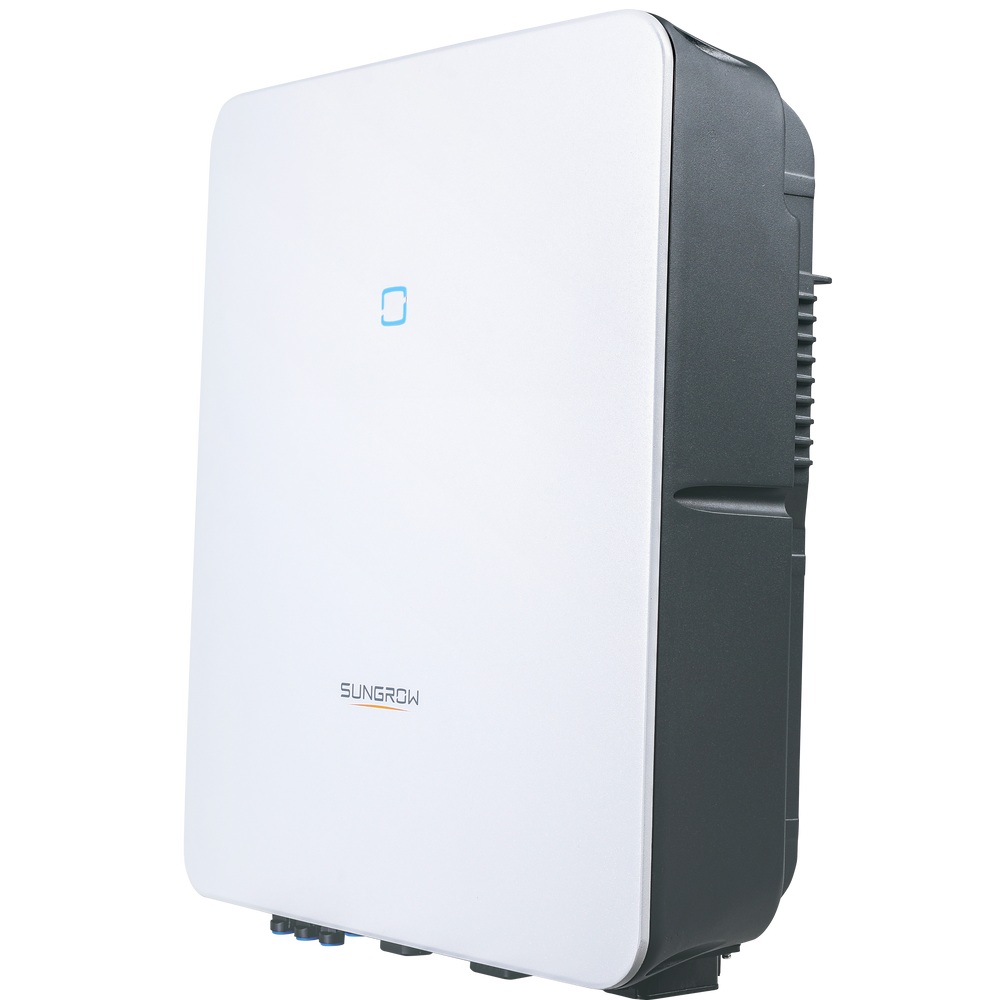

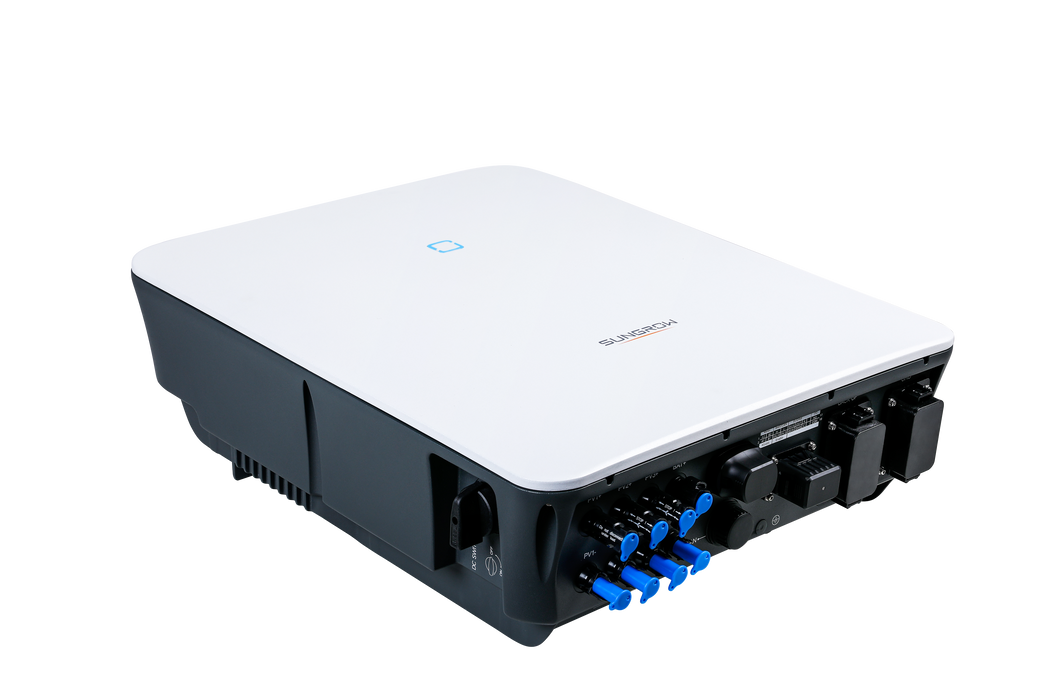

SUNGROW - THREE-PHASE HV HYBRID INVERTER - 5KW
- Description
- Key Features
- Technical Specifications
The Sungrow SH5.0RT is a three-phase hybrid inverter designed to combine solar generation, battery storage, and backup power in a single compact solution. With support for wide battery voltage ranges and seamless transition to backup mode, it delivers reliable energy supply during outages while maximising self-consumption. Installer-friendly features, smart energy management, and robust safety protection make the SH5.0RT a dependable choice for residential hybrid systems.
-
5.0 kW three-phase hybrid inverter with battery integration
-
Seamless transition to backup mode for power outage protection
-
Supports 100% unbalanced loads in backup mode
-
Wide battery voltage range (150–600 V) for flexible storage options
-
Fast charging and discharging to support high household demand
-
Built-in energy management system (EMS) for optimised self-consumption
-
Integrated Type II DC & AC surge protection
-
Plug-and-play connectors for fast and efficient installation
| Specification | Value |
|---|---|
| Model | SH5.0RT |
| Rated AC Output Power | 5,000 W |
| Max. AC Output Apparent Power | 5,000 VA |
| Phase Configuration | Three-phase |
| Max. DC Input Voltage | 1,000 V |
| MPPT Operating Voltage Range | 150 – 950 V DC |
| Number of MPPTs | 2 |
| Max. PV Input Current | 30 A |
| Battery Type | Li-ion |
| Battery Voltage Range | 150 – 600 V |
| Max. Charge / Discharge Current | 30 A / 30 A |
| Backup Switch Time | < 20 ms |
| Communication | RS485 / WLAN / Ethernet / CAN / DI / DO |
| Protection Rating | IP65 |
| Cooling Method | Natural convection |
| Operating Temperature Range | −25 °C to +60 °C |
| Dimensions (W × H × D) | 460 × 540 × 170 mm |
| Weight | 27 kg |
| Mounting Method | Wall-mounting bracket |
| Warranty | As per Sungrow inverter warranty documentation |
| Compliance | IEC 62109-1/2, AS/NZS 4777.2:2020 |
