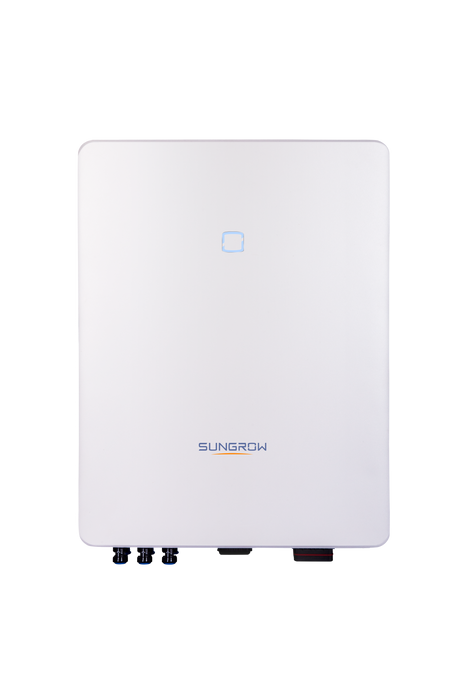

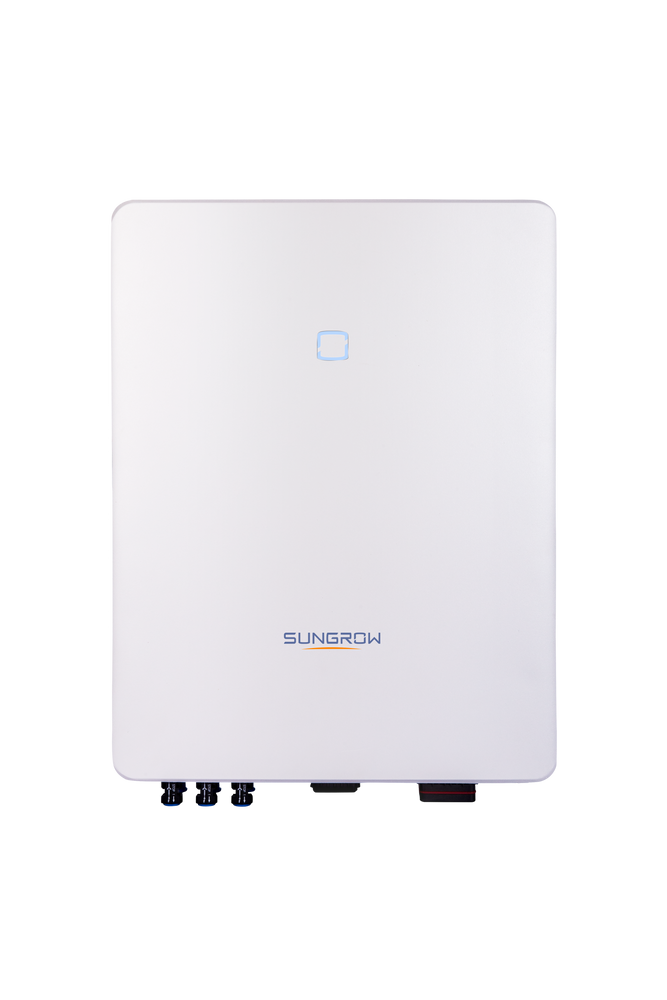

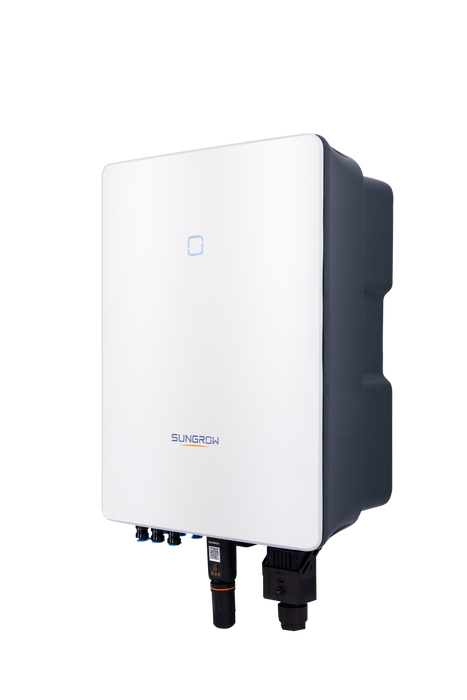

SUNGROW - THREE PHASE PV INVERTER - 15KW
- Description
- Key Features
- Technical Specifications
The Sungrow SG15RT is a high-efficiency three-phase string inverter designed for residential and small commercial PV installations. Built to support modern high-power and bifacial modules, it delivers reliable performance across a wide MPPT voltage range. With advanced safety protection, smart monitoring, and a compact, installer-friendly design, the SG15RT provides dependable energy production with fast commissioning and long-term operational stability.
-
15 kW three-phase output for residential and small commercial solar systems
-
Dual MPPT design for flexible array layouts and improved energy yield
-
High efficiency with European efficiency up to 98.1%
-
Integrated AFCI for enhanced fire safety protection
-
Built-in Type II DC & AC surge protection
-
Smart IV curve scanning with 24/7 live monitoring
-
Plug-and-play connectors for fast, efficient installation
-
IP65 enclosure with C5 corrosion protection for outdoor durability
| Specification | Value |
|---|---|
| Model | SG15RT |
| Rated AC Output Power | 15,000 W |
| Max. AC Output Apparent Power | 15,000 VA |
| Phase Configuration | Three-phase |
| Max. DC Input Voltage | 1,100 V |
| MPPT Operating Voltage Range | 160 – 1,000 V DC |
| Number of MPPTs | 2 |
| Max. PV Input Current | 64 A (32 A / 32 A) |
| Max. DC Short-Circuit Current | 80 A (40 A / 40 A) |
| European Efficiency | 98.1% |
| Communication | WLAN / Ethernet / RS485 / DI / DO |
| Protection Rating | IP65 |
| Corrosion Protection | C5 |
| Cooling Method | Smart forced air cooling |
| Operating Temperature Range | −25 °C to +60 °C |
| Dimensions (W × H × D) | 370 × 480 × 195 mm |
| Weight | 21 kg |
| Mounting Method | Wall-mounting bracket |
| Compliance | IEC / EN 62109-1/2 |
