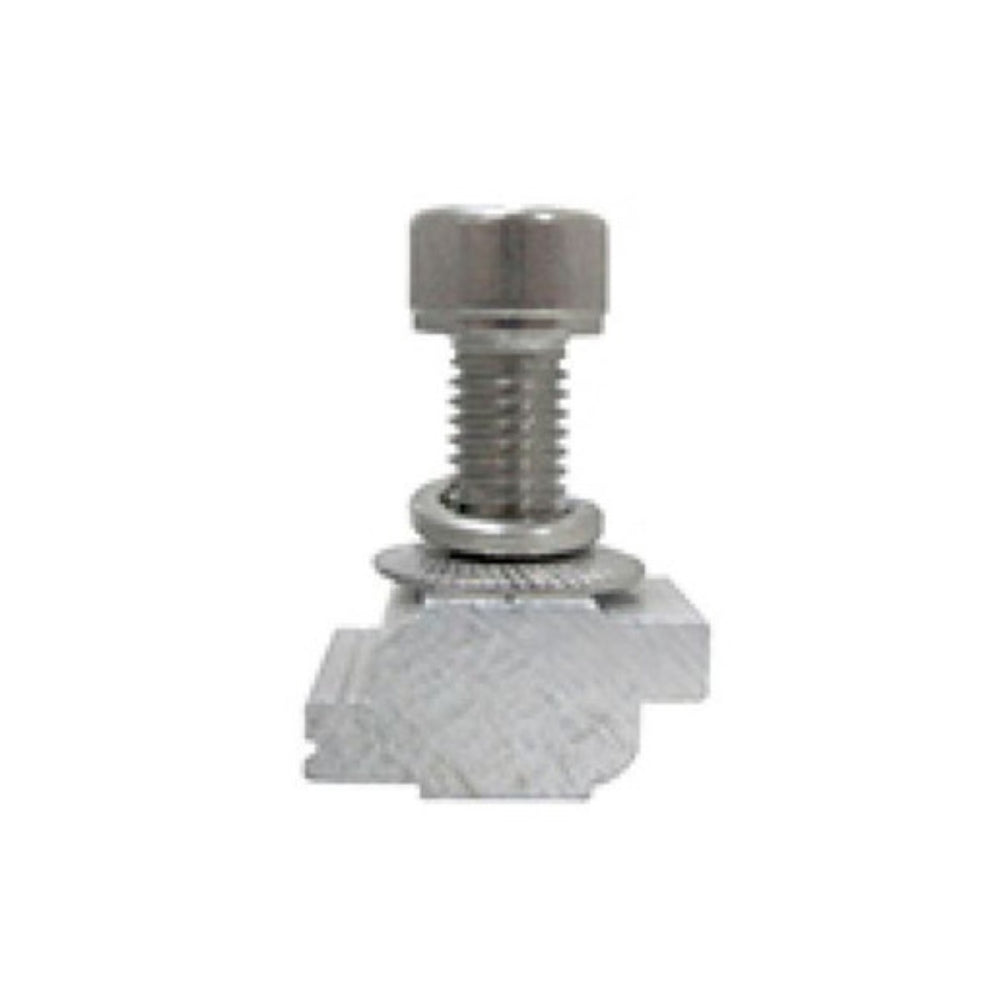

PV-ezRack, Z-module Assembly with Bolt and Large Washer
PV-ezRack, Z-module Assembly with Bolt and Large Washer

PV-ezRack, Z-module Assembly with Bolt and Large Washer

SKU EZ-Z-STBW
Call for availability
  • Description
  • Key Features
  • Technical Specifications

A sturdy Z-module assembly crafted for Clenergy’s ECO and T-rail systems, the EZ-Z-STBW includes a precision-machined bolt and large washer for reliable module clamping and grounding. Built from high-grade AL6005-T5 aluminium with SUS304 hardware, this silver half-anodised piece ensures strength, corrosion resistance, and reliable performance across solar installations.

Pack 400
Carton 800

  • Includes M8 × 25mm hex socket head cap bolt and matching large washer and lock washer for secure fixing.

  • Z-module is manufactured from AL6005-T5 aluminium; bolt & washer are SUS304 stainless steel for long-term durability.

  • Silver colour, with a half-anodised finish of not less than 10 µm to protect against corrosion.

  • Designed to fix inter-clamps, end-clamps, or grounding lugs onto Clenergy’s ECO or T rails.

Specification Details
Material – Module Body AL6005-T5 aluminium
Hardware SUS304 bolt & washers
Bolt Size M8 × 25 mm (hex socket head)
Finish / Colour Silver (half-anodised, ≥10 µm)
Dimensions (W × H) Approx. 24 mm × 33 mm
Weight ~ 0.028 kg per unit
Pack Quantity 400 units per pack; 2 packs (800 units) per carton
