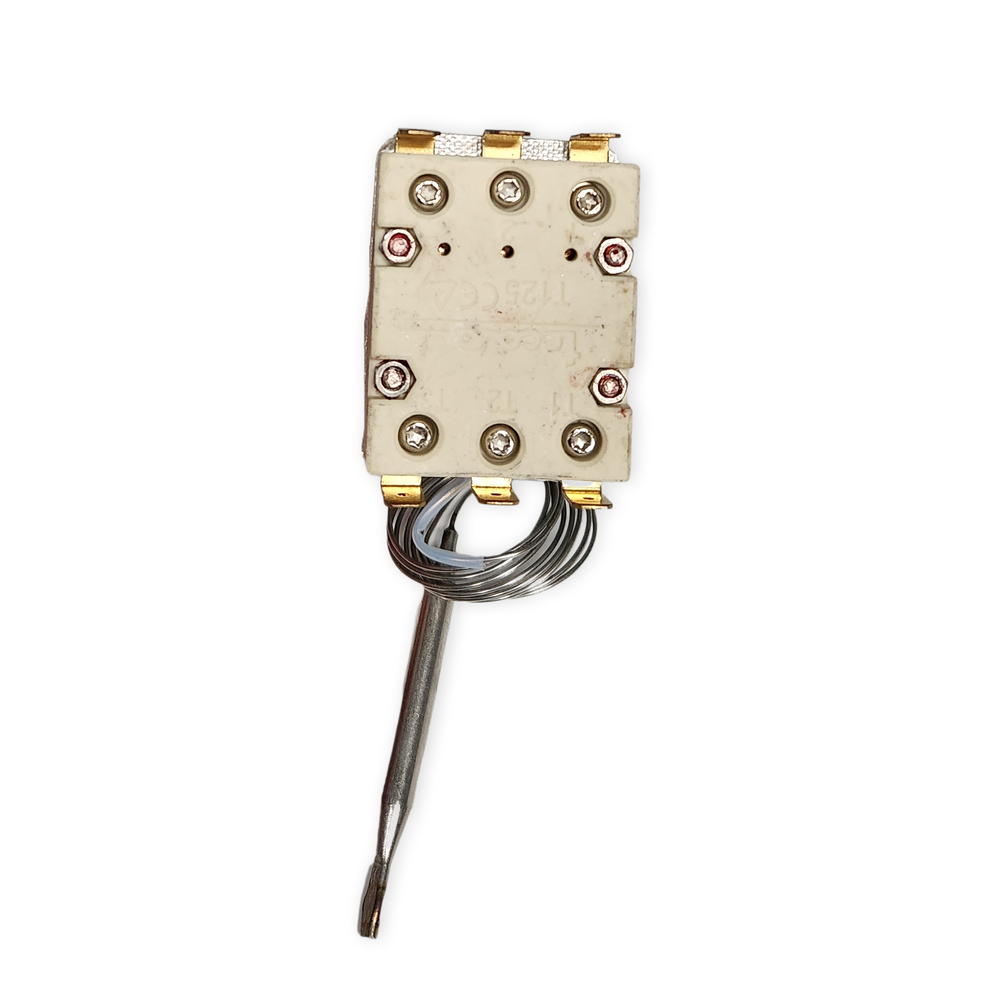

TPST Thermostat 65°c-200°c
TPST Thermostat 65°c-200°c

TPST Thermostat 65°c-200°c

SKU RC5
In stock: 6
  • Description
  • Key Features
  • Technical Specifications

The RC5 is an adjustable capillary thermostat with a temperature range of 65°C to 200°C. Featuring TPST three-pole switching and a 16A at 250V switching capacity, it provides temperature-controlled switching across three circuits.

The thermostat uses a stainless steel capillary and sensing phial, with PTFE sleeving at the thermostat connection. It is rated for more than 100,000 operating cycles.

  • Adjustable temperature range from 65°C to 200°C
  • TPST three-pole switching
  • 16A at 250V switching capacity
  • Stainless steel capillary and sensing phial
  • Maximum thermostat body temperature of 125°C
  • Maximum sensing phial temperature of 240°C
  • Switching differential of 16 ± 8°C
  • Product life greater than 100,000 cycles
Specification Details
SKU RC5
Product Type Adjustable capillary thermostat
Temperature Range 65°C to 200°C
High Disconnection Temperature 200 ± 5°C
Low Disconnection Temperature 65 ± 6°C
Switching Differential 16 ± 8°C
Switching Configuration TPST
Switching Capacity 16A / 250V
Maximum Body Temperature 125°C
Maximum Phial Temperature 240°C
Capillary Material Stainless steel
Capillary Diameter Ø1 mm
Capillary Length 850 mm +50 mm
