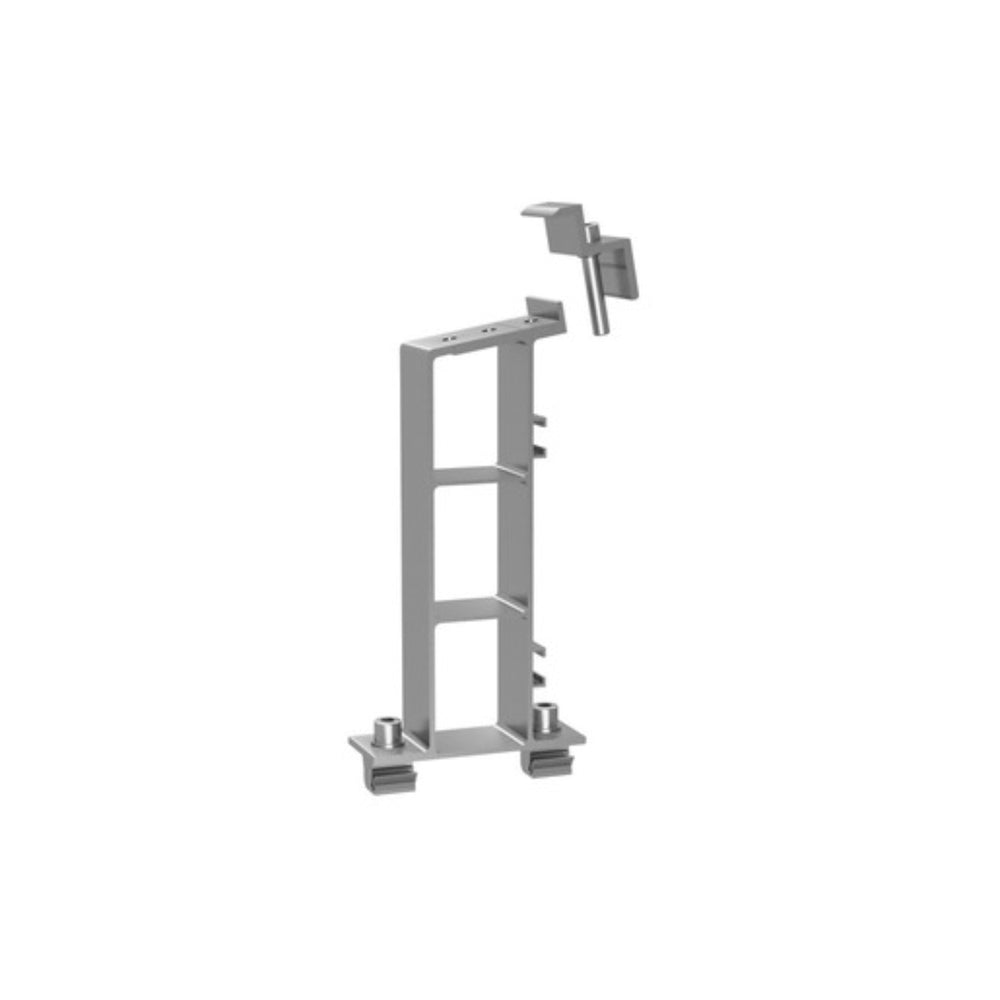

PV-ezRack ComT, Rear Leg Assembly, 10°, with Z-Module and Grounding Pins, version 2
PV-ezRack ComT, Rear Leg Assembly, 10°, with Z-Module and Grounding Pins, version 2

PV-ezRack ComT, Rear Leg Assembly, 10°, with Z-Module and Grounding Pins, version 2

SKU RL-COMT/Z/G/10V2
Call for availability
  • Description
  • Key Features
  • Technical Specifications

Built for the Clenergy PV-ezRack ComT 2.0 system, the RL-COMT/Z/G/10V2 is a 10-degree rear leg assembly featuring an integrated Z-Module and grounding pins. Crafted for commercial tin or flat roofs, it supports a tilt for optimized panel performance, provides reliable earthing, and includes all necessary hardware for secure mounting.

Carton 50

  • 10° tilt angle for optimized solar incidence in commercial tilt configurations.

  • Z-module + grounding pins built in to simplify installation and maintain electrical continuity.

  • Full hardware included: end clamp, M8 bolts (25 mm & 40 mm), washers, rubber O-rings.

  • Strong and durable materials: Aluminium body, stainless steel components; built to meet commercial durability and load standards.

Specification Details
Tilt Angle 10°
Compatible System ComT 2.0 rails (ECO rail / T50-T110 rails with Z-module)
Included Hardware

End clamp, M8 × 25 mm & M8 × 40 mm bolts, washers, O-rings 12×3
Dimensions (L × W × H) 350 mm × 105 mm × 85 mm
Weight ~ 1.45 kg packaged
