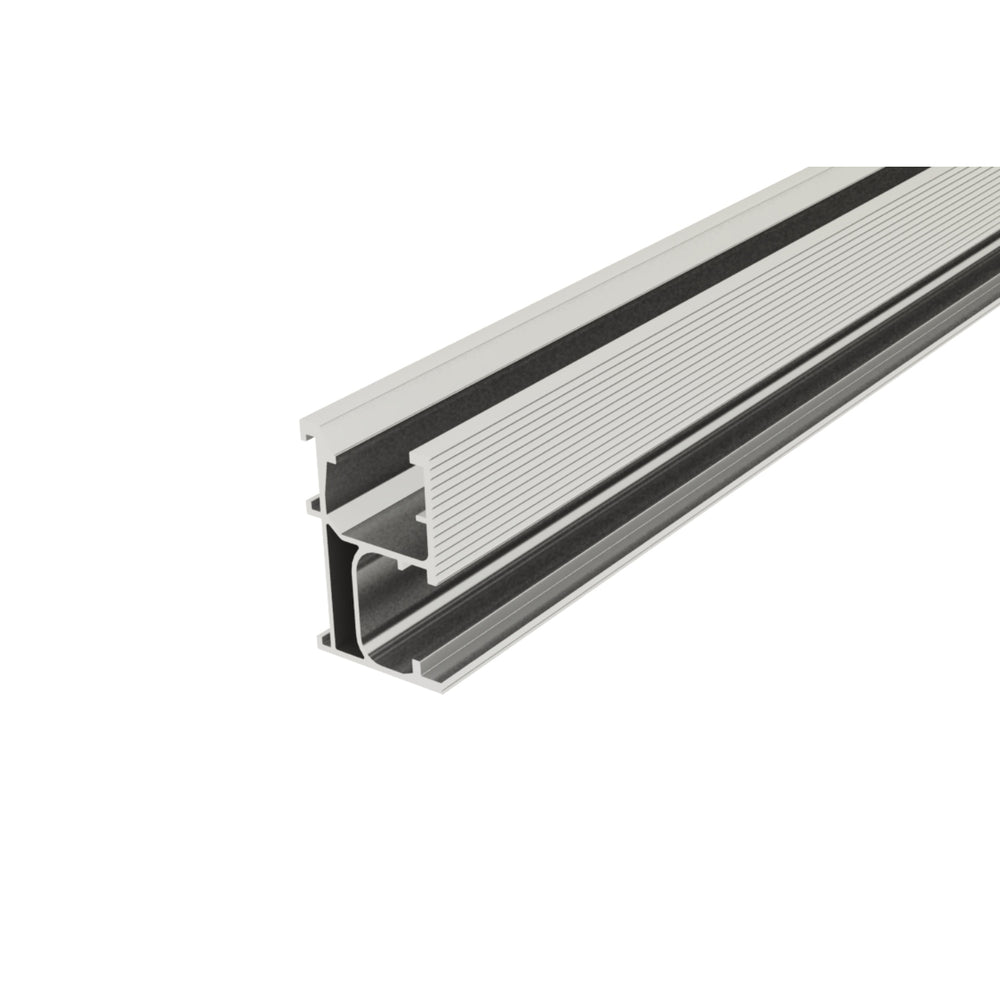

PV-ezRack ECO Rail, length 4700mm
- Description
- Key Features
- Technical Specifications
The ER-R-ECO/4700 ECO Rail is a structural aluminium rail designed for Clenergy’s PV-ezRack Solar mounting system. At a length of 4,700 mm, it provides longer spans and reduced joints, ideal for large rooftop or commercial solar arrays. With a cross-sectional profile of 32.6 mm × 50.7 mm, it balances strength, weight, and installation flexibility. The rail’s anodised aluminium finish and high load capacity make it suitable for residential, commercial, and industrial solar installations. Selected ECO Rail variants can be sourced upon request; lead times may apply depending on availability and configuration.
-
Extra-long 4,700 mm length reduces rail joins and simplifies layouts.
-
Cross-section width 32.6 mm, height 50.7 mm for optimal strength-to-weight ratio.
-
Made from AL6005-T5 aluminium — corrosion resistant, structurally strong.
-
Weight ~ 0.826 kg per metre, making handling efficient on site.
-
Silver anodised finish (≥10 μm) for durability and aesthetic integration.
-
Packaging: 90 rails per pack, 4 packs per pallet (360 units) for efficient shipping.
-
Fully compatible with the Clenergy PV-ezRack / SolarRoof system, including rail connectors, clamps, Z-modules, and components.
| Specification | Value / Notes |
|---|---|
| SKU / Model | ER-R-ECO/4700 |
| Product Type | ECO Rail (Structural Rail for PV mounting) |
| Length | 4,700 mm (4.7 m) |
| Cross-section | 32.6 mm (W) × 50.7 mm (H) |
| Material | AL6005-T5 aluminium alloy |
| Finish | Silver anodised (≥ 10 μm) |
| Weight per Metre | 0.826 kg/m |
| Pack / Pallet Quantities | 90 pcs per pack, 4 packs per pallet (360 pcs) |
| Application | Roof-mount or structural solar array rail in PV-ezRack / SolarRoof systems |
| Compatibility | Works with clamps, splice joiners, Z-modules, earthing components in Clenergy system |
