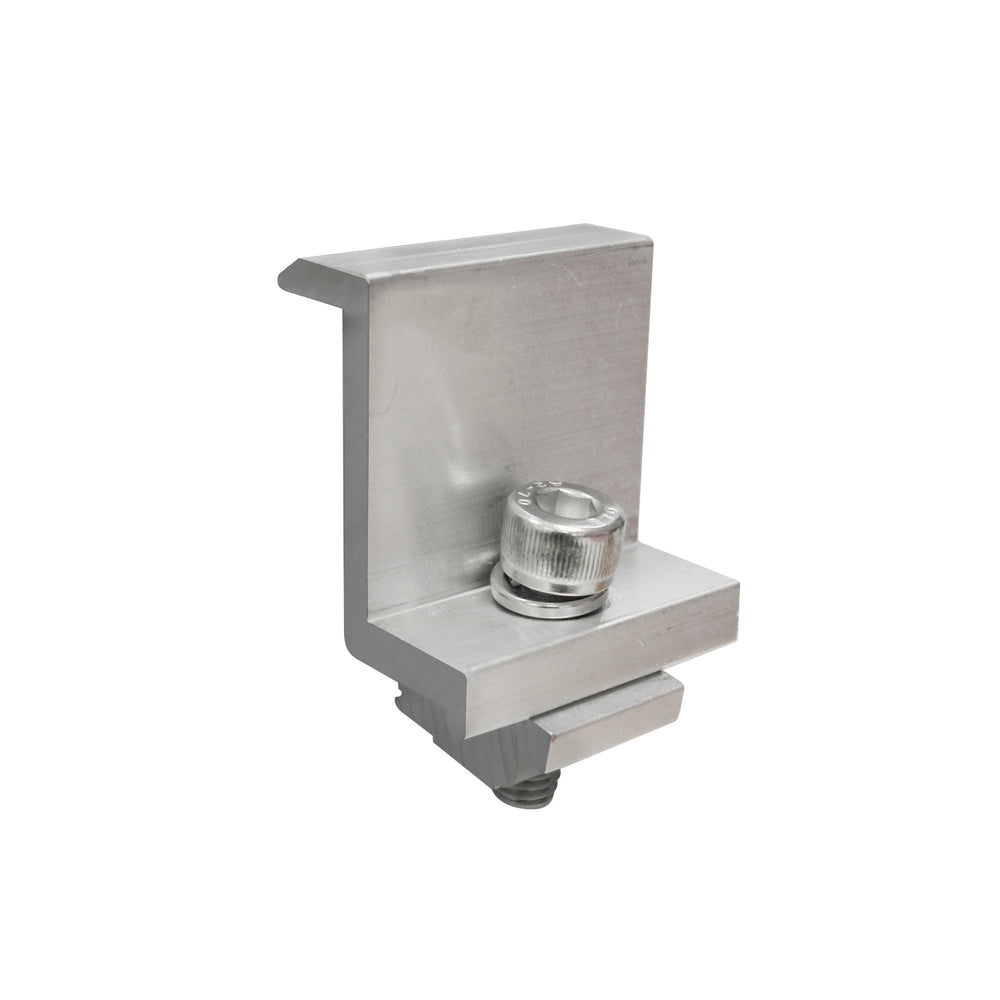

PV-ezRack End Clamp, Standard 35mm
PV-ezRack End Clamp, Standard 35mm

PV-ezRack End Clamp, Standard 35mm

SKU ER-EC-ST35
In stock: 100+
  • Description
  • Key Features
  • Technical Specifications

The ER-EC-ST35 is a standard end clamp designed for framed PV modules with frame heights between 35-37 mm, compatible with Clenergy’s ECO and T-Rails systems. Built with AL6005-T5 aluminium and SUS304 stainless steel fasteners, and finished in silver anodized coating (≥ 10 µm), it ensures strong clamping force, excellent corrosion resistance, and precise panel mounting.

Pack 100
Carton 400

  • Frame Compatibility: Suits panels with 35-37 mm frame height.

  • Material & Finish: Main body made of AL6005-T5 aluminium; fasteners are SUS304; colour is silver anodized ≥ 10 µm.

  • Structural Specs: Meets AS/NZS 1170.2 standards for wind and load; requires 20 mm minimum space either side of OE rail for installation.

  • Recommended Torque: 16-20 N·m for secure, reliable fastening.

Specification Details
Product Type End Clamp, Standard
Module Frame Height Range 35-37 mm
Material AL6005-T5 aluminium, SUS304 fasteners
Finish Silver anodised (≥ 10 µm)
Clamp Weight ~ 0.054 kg
Packaging 100 units/pack; 4 packs/carton (400 units)
