PV-ezRack Splice for ECO-Rail, (Black Anodized AA10)
PV-ezRack Splice for ECO-Rail, (Black Anodized AA10)

PV-ezRack Splice for ECO-Rail, (Black Anodized AA10)

SKU ER-SP-ECO/BA
Call for availability
  • Description
  • Key Features
  • Technical Specifications

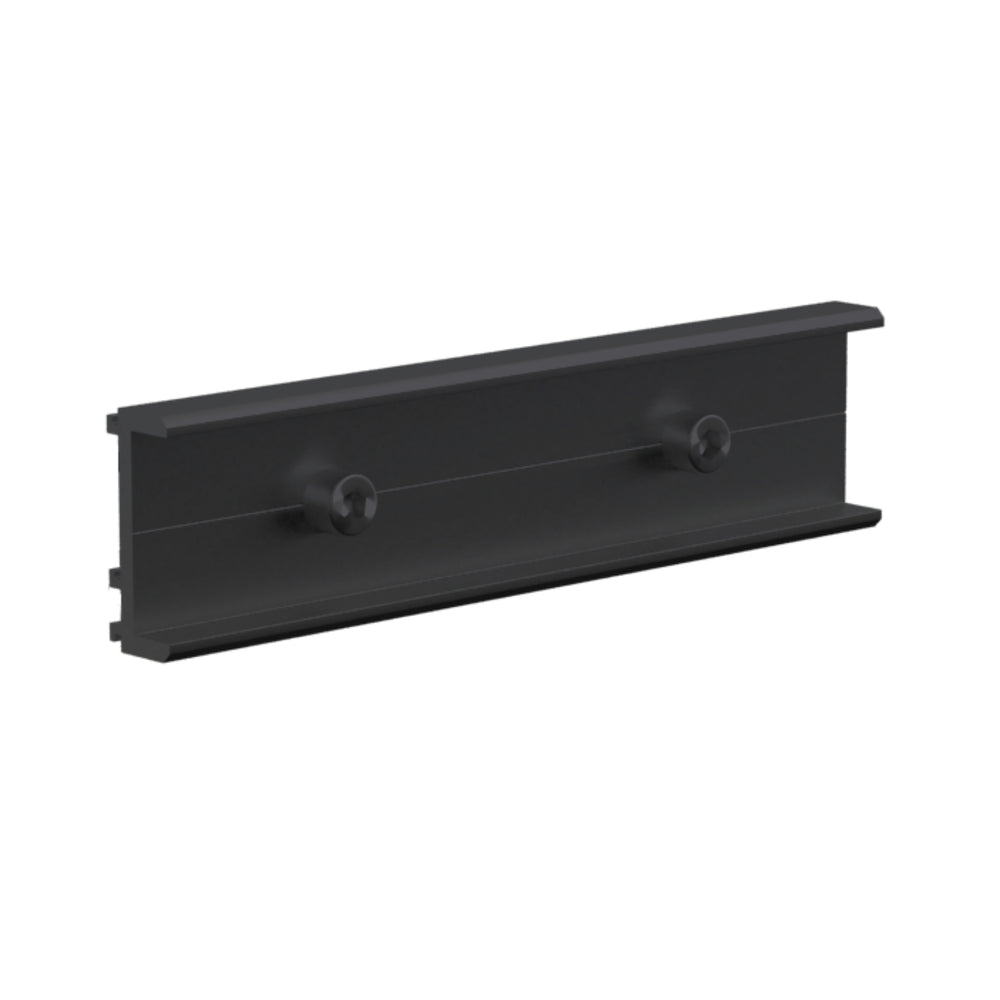

The ER-SP-ECO/BA Splice Joiner is a precision joiner designed to seamlessly connect two lengths of Clenergy ECO rail (PV-ezRack system), in a durable black anodized finish. Engineered for strength and alignment, it ensures your solar rack layout remains straight, structurally robust and visually clean. Available via Smiths NZ, part of the Clenergy racking ecosystem.

  • Black anodized finish for aesthetic integration with black rails and corrosion resistance.

  • Length 200 mm — standard splice length to bridge ECO rails precisely.

  • Aluminum 6005-T5 body with SUS 304 fasteners ensures strong mechanical properties and weather durability.

  • Includes M8 × 18 mm hex socket head bolt for secure, high-torque fastening.

  • Designed specifically for ECO rail + cutter rail systems, keeping alignment and structural integrity.

  • Compatible with the Clenergy PV-ezRack / SolarRoof Black mounting system.

Specification Value
SKU / Model ER-SP-ECO/BA
Product Type Splice Joiner / Rail Connector
Standard Length 200 mm
Height 50.7 mm
Weight ~ 0.190 kg
Material – Splice Body AL6005-T5 Aluminum
Fasteners SUS 304 stainless steel
Bolt Spec M8 × 18 mm hex socket head
Finish Black anodized (≥ 10 μm)
Application Splice two ECO rails or connect ECO to cutter rail segments
Packaging 24 units per pack (96 per carton)
Compliance / Standards NBC 2020, OBC 2012/2022 & 2024, BCBC, relevant structural codes
