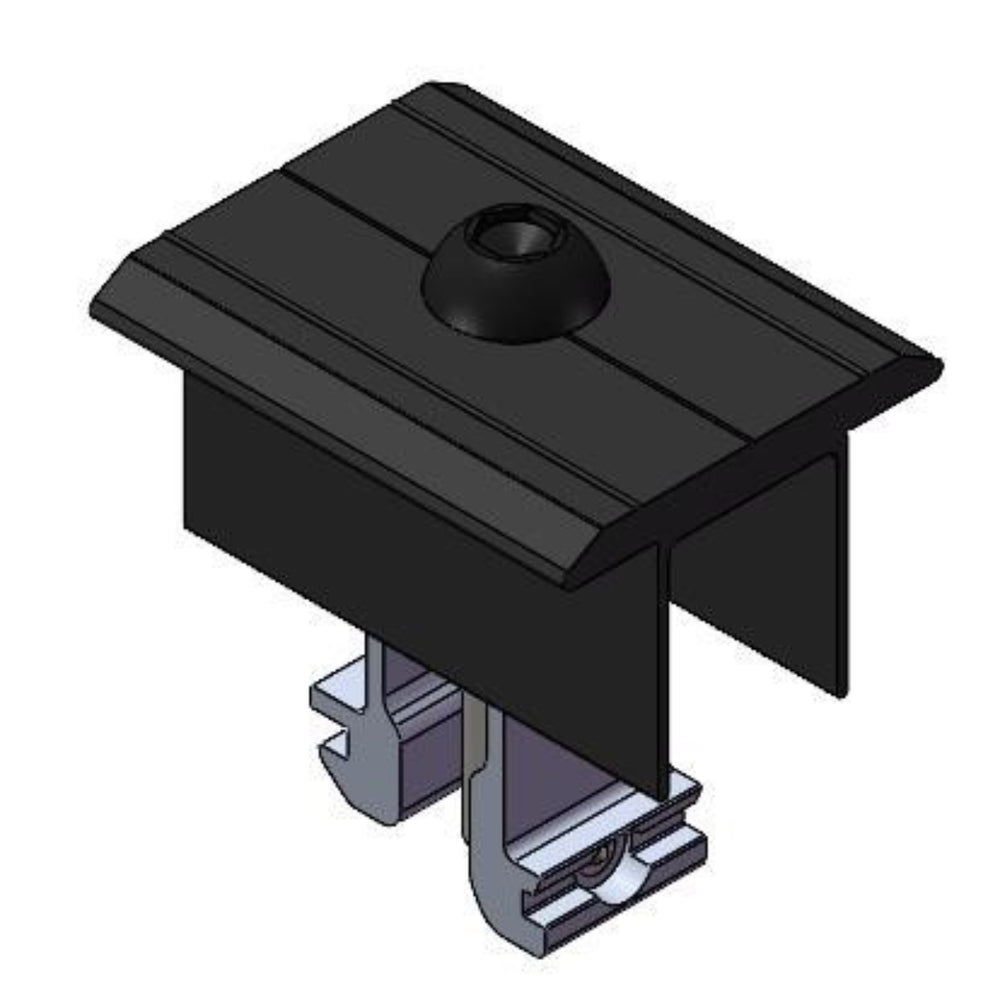

PV-ezRack, Zano Inter Clamp 28-42 mm, Length 50 mm with Grounding Pins, Black Anodized
PV-ezRack, Zano Inter Clamp 28-42 mm, Length 50 mm with Grounding Pins, Black Anodized

PV-ezRack, Zano Inter Clamp 28-42 mm, Length 50 mm with Grounding Pins, Black Anodized

SKU ER-IC-28/42/L50/G/BA
Call for availability
  • Description
  • Key Features
  • Technical Specifications

The ER-IC-28/42/L50/G/BA is a Zano Inter Clamp designed for framed PV modules with frame heights between 28 and 42 mm. With a 50 mm clamp length and integrated grounding pins, this black anodised aluminium clamp both secures panels and ensures electrical bonding, eliminating the need for separate grounding hardware. A smart choice for installers seeking sleek aesthetics and code-compliant earthing in Clenergy PV-ezRack systems.

  • Compatible with framed modules having 28–42 mm frame height.

  • Integrated grounding pins to maintain earthing continuity without extra components.

  • Black anodised finish (BA) for corrosion resistance and modern visual integration.

  • Made from AL6005-T5 aluminium with SUS 304 stainless steel fasteners for strength and durability.

  • Recommended clamping torque: 13–16 N·m to ensure secure fit without damaging module frames.

  • Requires 20 mm spacing between adjacent PV modules for proper installation clearance.

  • Weight approx 0.068 kg per clamp.

  • Packaging: 27 units per pack; 4 packs per carton (108 units) for bulk installs.

Specification Value / Notes
SKU / Model ER-IC-28/42/L50/G/BA
Product Type Zano Inter Clamp with grounding pins, black anodised
Compatible Module Frame Heights 28–42 mm
Clamp Length 50 mm
Material (Body) AL6005-T5 aluminium
Fasteners SUS 304 stainless steel
Finish Black anodised
Recommended Torque 13–16 N·m
Module Spacing Requirement 20 mm between modules
Weight ~ 0.068 kg
Packaging 27 per pack; 4 packs per carton
Grounding Feature Integrated grounding pins (no extra grounding clips needed)
