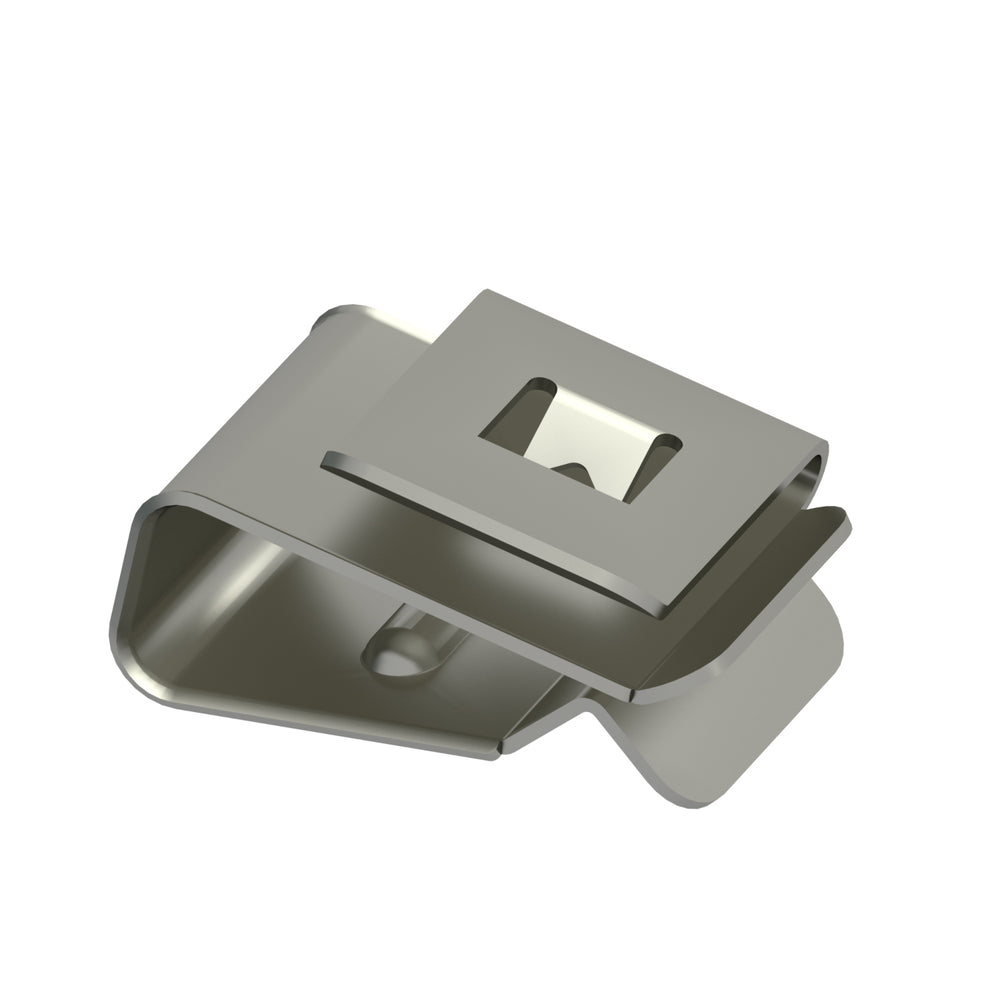

Clenergy RUNNUR, Universal Cable Clip for PV Panels for holding 2 cables, Landscape
SKU EZ-CC-PV/2/L
In stock: 100+
- Description
- Key Features
- Technical Specifications
Secure and tidy cable management made simple: the EZ-CC-PV/2/L is a landscape-oriented stainless-steel clip that holds two cables along the frame of framed PV modules. Built with SUS304 material, it delivers durability, corrosion resistance, and a clean silver finish. Ideal for situations where cable routing along the longer edge of modules is needed.
Pack 900
Carton 3600
-
Capacity: Holds up to 2 cables for efficient PV wiring.
-
Material: SUS304 3/4H stainless steel — strong and corrosion resistant
-
Frame Compatibility: Fits framed PV modules with frame thickness between 1.3 - 2.0 mm. Minimum frame width 12 mm.
-
Max Cable Size: Up to 10 mm² conductor.
-
Dimensions & Weight: Approx. 20.5 mm × 12 mm × 12 mm; weighs about 0.003 kg.
| Specification | Details |
|---|---|
| Material | SUS304 stainless steel (3/4H) |
| Cable Capacity | 2 cables |
| Frame Thickness | 1.3 - 2.0 mm |
| Min Frame Width | 12 mm |
| Max Conductor Size | 10 mm² |
| Dimensions (L × W × H) | ≈ 20.5 × 12 × 12 mm |
| Weight per piece | ≈ 0.003 kg |
| Colour / Finish | Silver |
| Packaging | 900 pcs per pack; 4 packs per carton (3600 pcs) |
