120°C Thermal Cutout (Normally Closed)
120°C Thermal Cutout (Normally Closed)

120°C Thermal Cutout (Normally Closed)

SKU SEP209*
Call for availability
  • Description
  • Key Features
  • Model Info

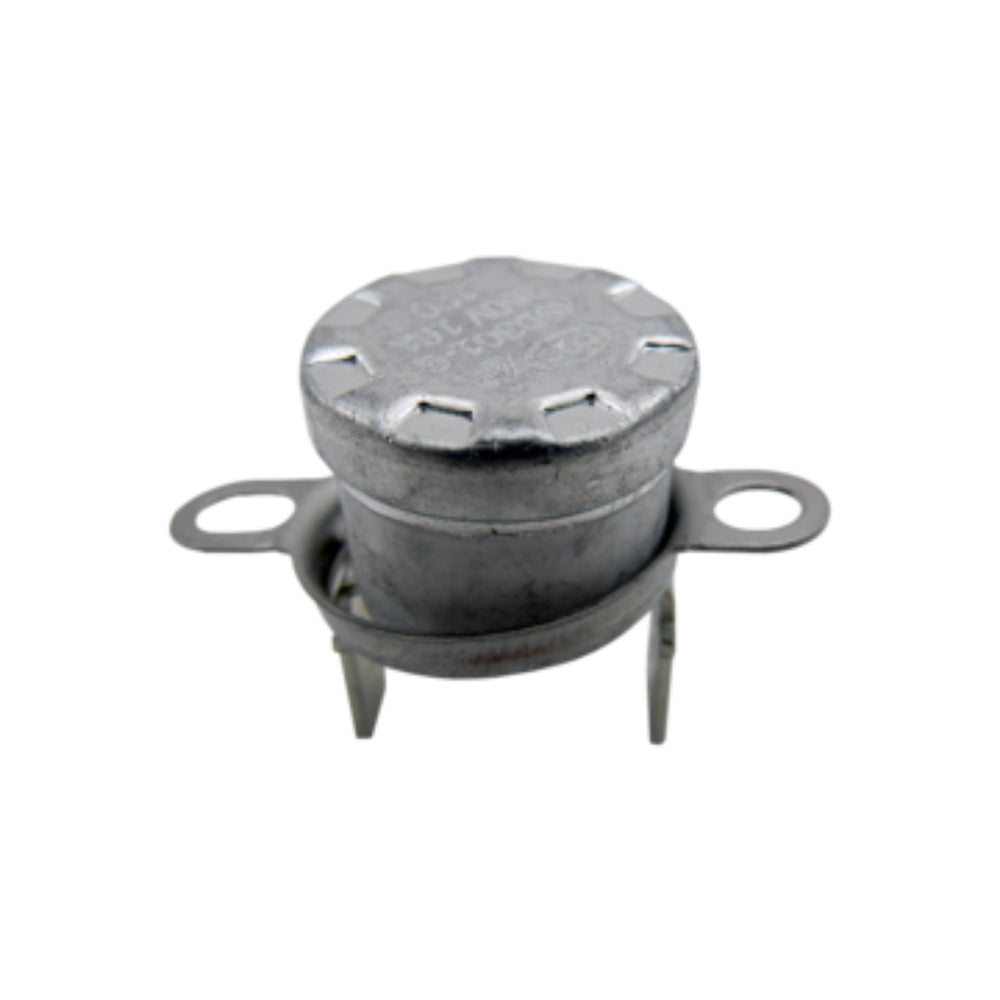

The SEP209 Thermal Cutout is a fixed over-temperature safety device rated at 120 °C, operating in a normally closed (NC) configuration. It is typically installed in ovens to cut power if internal temperatures exceed safe limits. It replaces Electrolux / Westinghouse part numbers 0541001269 and 4055549929, and is also commonly used in Simpson, Chef, and Westinghouse ovens for thermal safety.

  • Fixed trip temperature: 120 °C

  • Normally Closed at ambient (opens when temperature is reached)

  • Rated for 16 A, 250 VAC (typical NC cutout specifications)

  • Ceramic construction and two 6.4 mm spade terminals

  • Mounting hole spacing: 24 mm (centre to centre)

Equivalent: 0541001269 4055549929


Suitable for: CVE624SA, CVE662SA, CVE662WA, CVEP604SA, CVEP614SA, EVE607SC, EVEP604SC, EVEP606SC, EVEP611SA, EVEP611SB, EVEP613SA, EVEP613SB, EVEP614BA, EVEP614BB, EVEP614SC, EVEP615SB, EVEP616BA, EVEP616BB, EVEP616SC, CVE624SA, CVE662SA, CVE662WA, CVEP604SA, CVEP614SA, GSC6615SNG, WVE617S, WVE617W, EVEP618BB, EVEP618SC, EVEP623SB, EVEP626BB, EVEP626SC, SVE624SA, SVEP614SA, POR663S, POR663W, POR663WCC, POR667S, POR667SH, POR667W, POR668WH, POR668S, WVE617W, WVEP615S, WVEP615W, WVEP618S, WVEP618W
