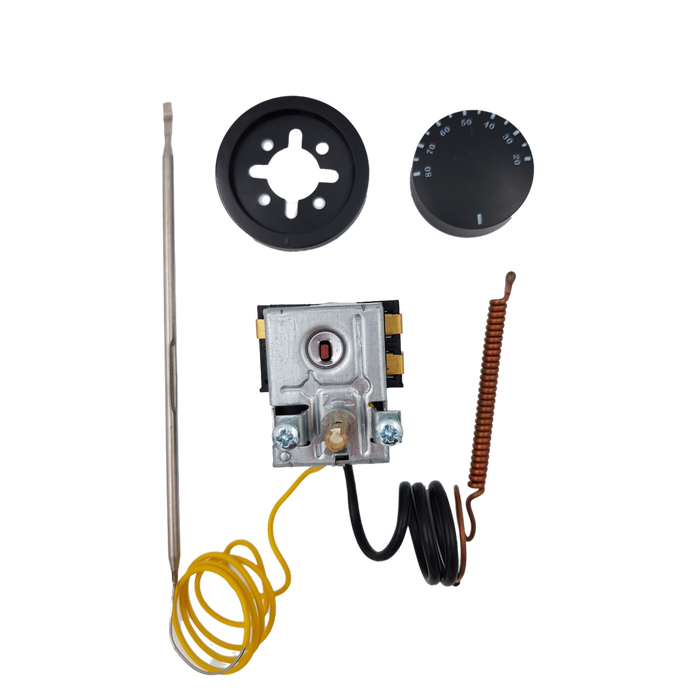

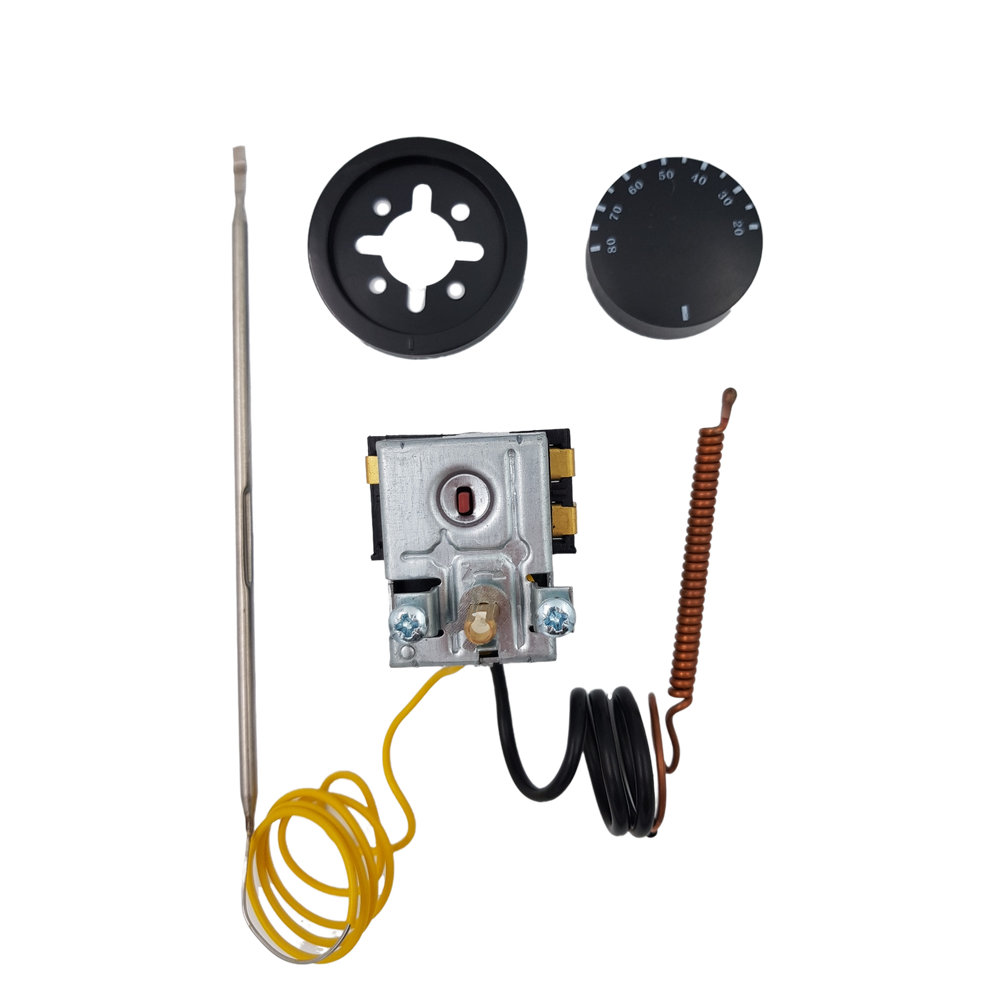

Domestic capillary thermostat 20°C-80°C with over-temp cut out
SKU SSRB-2080
In stock: 7
- Description
- Key Features
- Technical Specifications
The SSRB-2080 capillary Thermostat (20–80 °C) is a reliable hot water thermostat with calibrated control knob. It provides accurate temperature control in domestic and commercial water heating systems, with an operating range of 20–80 °C and an over-temperature cut-out at 88 °C for added safety.
- Adjustable operating range: 20–80 °C for flexible hot water control.
- Over-temperature cut-out at 88 °C to protect against overheating.
- Rated for 20 A, 240 V AC.
- Includes a calibrated control knob for temperature adjustment.
- Capillary thermostat design for domestic and commercial water heating applications.
| Specification | Details |
|---|---|
| SKU / Model | SSRB-2080 |
| Equivalent Models | BBSC0033 |
| Temperature Range | 20–80 °C |
| Over-Temperature Cut-Out (OTC) | 88 °C |
| Current / Voltage Rating | 20 A, 240 V AC |
| Cycling Capillary Length | 600 mm |
| OTC Capillary Length | 450 mm |
| Application | Domestic and commercial hot water heaters |
