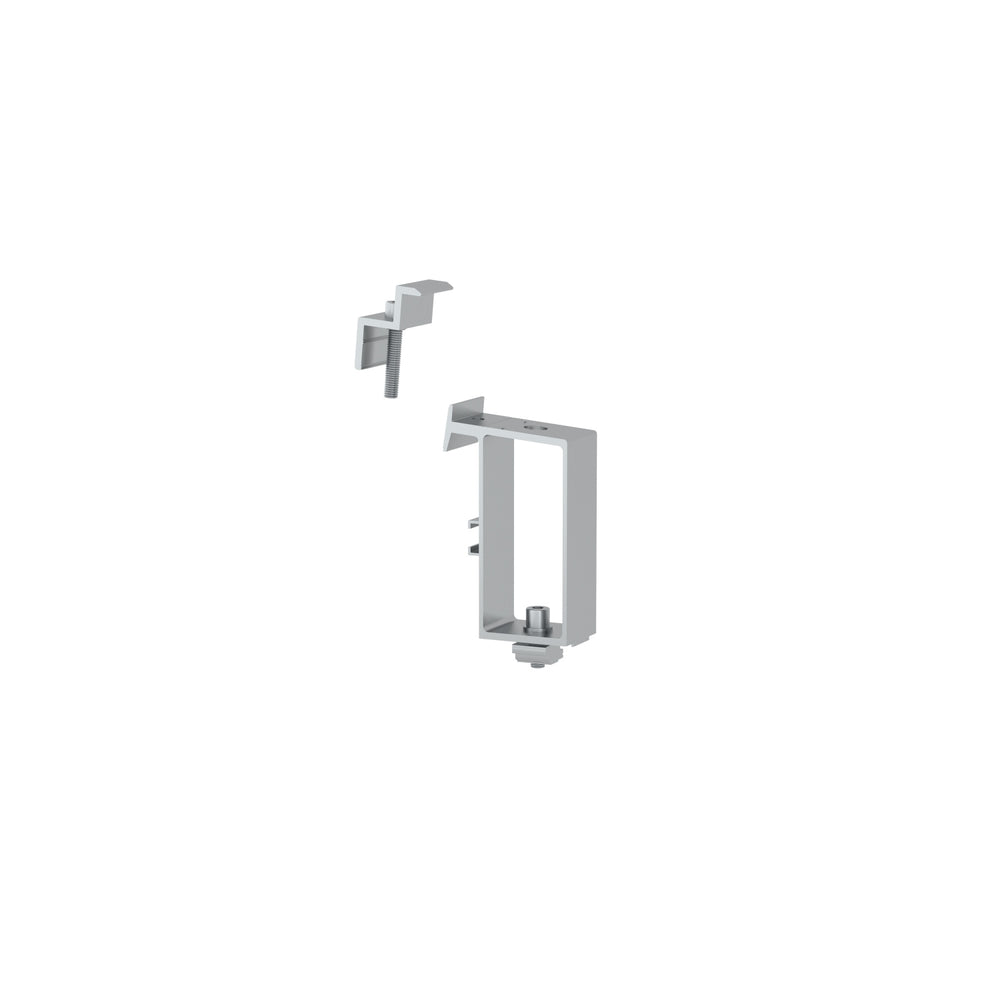

PV-ezRack Commercial Tilt, Rear Leg Assembly, 5°, with Z-Module and Grounding Pins
SKU RL-COMT/Z/G/5
In stock: 8
- Description
The Clenergy PV-ezRack RL-COMT/Z/G/5 is a 5° rear leg assembly for Commercial Tilt installations on compatible tin and flat roofs. It includes a Z-Module connection and grounding pins for compatible ECO-Rail, T50 and T110 rail arrangements.
Download the Clenergy 5° Commercial Tilt leg datasheet
Key Features
- 5° rear leg for Clenergy Commercial Tilt systems
- Suitable for compatible tin and flat roof installations
- Z-Module connection for ECO-Rail, T50 and T110 rails
- Designed for PV modules up to 2400 × 1200 mm
Technical Specifications
| Part number | RL-COMT/Z/G/5 |
| Component | Rear leg assembly |
| Tilt angle | 5° |
| Compatible rails | ECO-Rail, T50 and T110 |
| Maximum module size | 2400 × 1200 mm |
| Material | AL6005-T5 aluminium |
| Finish | Silver half-anodised, minimum 10 μm |
| Weight | 0.207 kg |
| Packaging | 70 per carton |
| Standard | AS/NZS 1170.2:2011 |
