PV-ezRack SolarRoof,Tilt Leg, Adjustable, 10-15 Degree, pre-assembled
SKU ER-TL-10/15/PS
Call for availability
- Description
- Key Features
- Technical Specifications

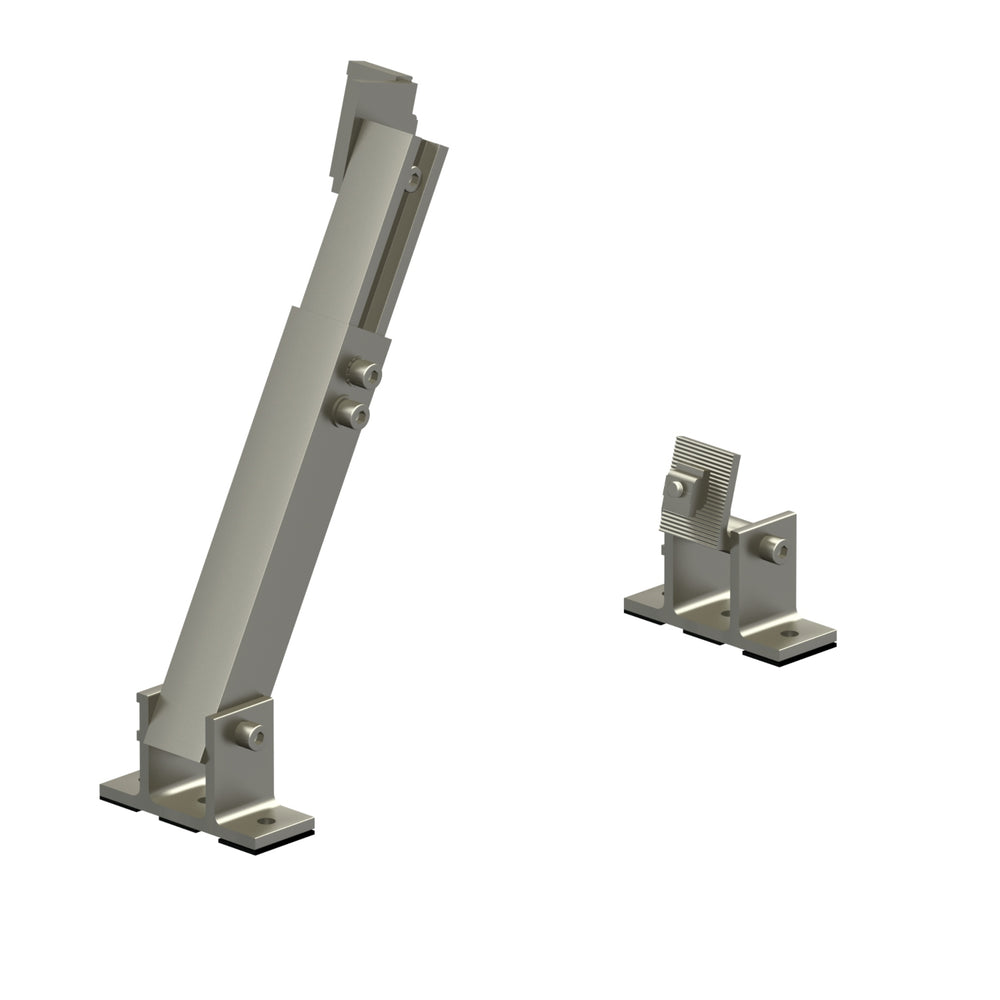

The Clenergy PV-ezRack ER-TL-10/15/PS is a pre-assembled adjustable tilt-leg set for installing PV modules between 10° and 15° on compatible SolarRoof systems.
- 10°–15° adjustment: The rear leg adjusts to provide a module tilt between 10° and 15°.
- Pre-assembled configuration: Supplied as Clenergy’s pre-assembled adjustable tilt-leg version.
- Earthing provision: Clenergy lists the assembly with earthing functionality.
| Specification | Details |
|---|---|
| Part Number | ER-TL-10/15/PS |
| Product Type | Adjustable tilt legs, pre-assembled |
| Tilt Range | 10°–15° |
| Rear-Leg Adjustment | 260–375 mm |
| Screw Specification | 4 × Buildex 14-11 × 70 Hex Head Zips screws |
| Weight | 1.056 kg |
| Tilt-Leg Material | AL6005-T5 aluminium |
| Fasteners | SUS304 stainless steel |
| Finish | Silver, half-anodised, no less than 10 μm |
| Earthing | Yes |
| Packaging | 14 units per carton |
