PV-ezRack SolarRoof,Tilt Leg, Adjustable 15 to 30 degree
SKU ER-TL-15/30
Call for availability
- Description
- Key Features
- Technical Specifications

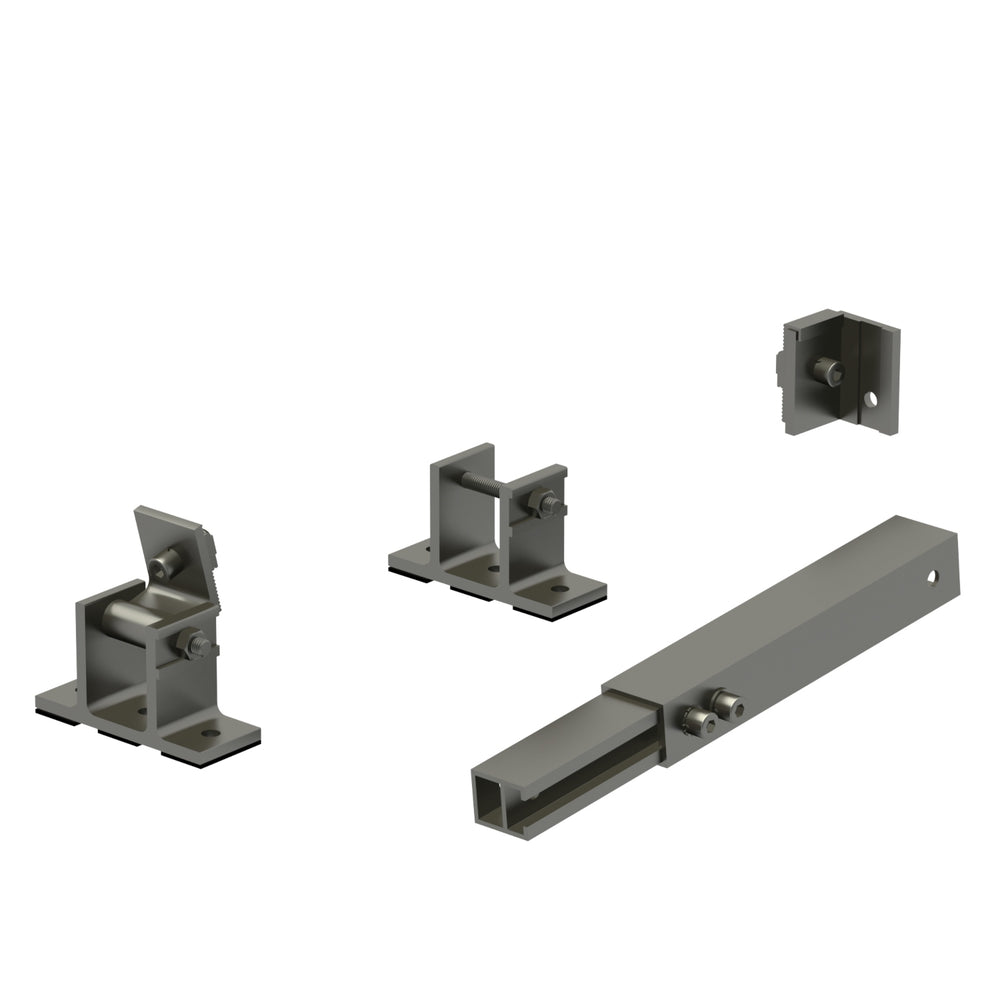

The Clenergy PV-ezRack ER-TL-15/30 is a non-preassembled adjustable tilt-leg set for installing PV modules between 15° and 30° on compatible SolarRoof systems.
- Adjustable 15° to 30° module tilt
- Rear leg adjusts from 390 to 635 mm
- Supplied as a non-preassembled tilt-leg set
- Includes two Buildex 14-11 × 70 hex-head Zips screws
- Designed for compatible PV-ezRack SolarRoof installations
| Part number | ER-TL-15/30 |
| Tilt range | 15° to 30° |
| Rear-leg adjustment | 390 to 635 mm |
| Assembly | Non-preassembled |
| Materials | AL6005-T5 aluminium; SUS304 fasteners |
| Finish | Silver, half-anodised, minimum 10 μm |
| Weight | 1.277 kg |
| Packaging | 20 per carton |
| Earthing | Yes |
| Standard | AS/NZS 1170.2:2011 |
