PV-ezRackSolarRoof,Tilt legs, adjustable 10-15 degree
SKU ER-TL-10/15
Call for availability
- Description
- Key Features
- Technical Specifications

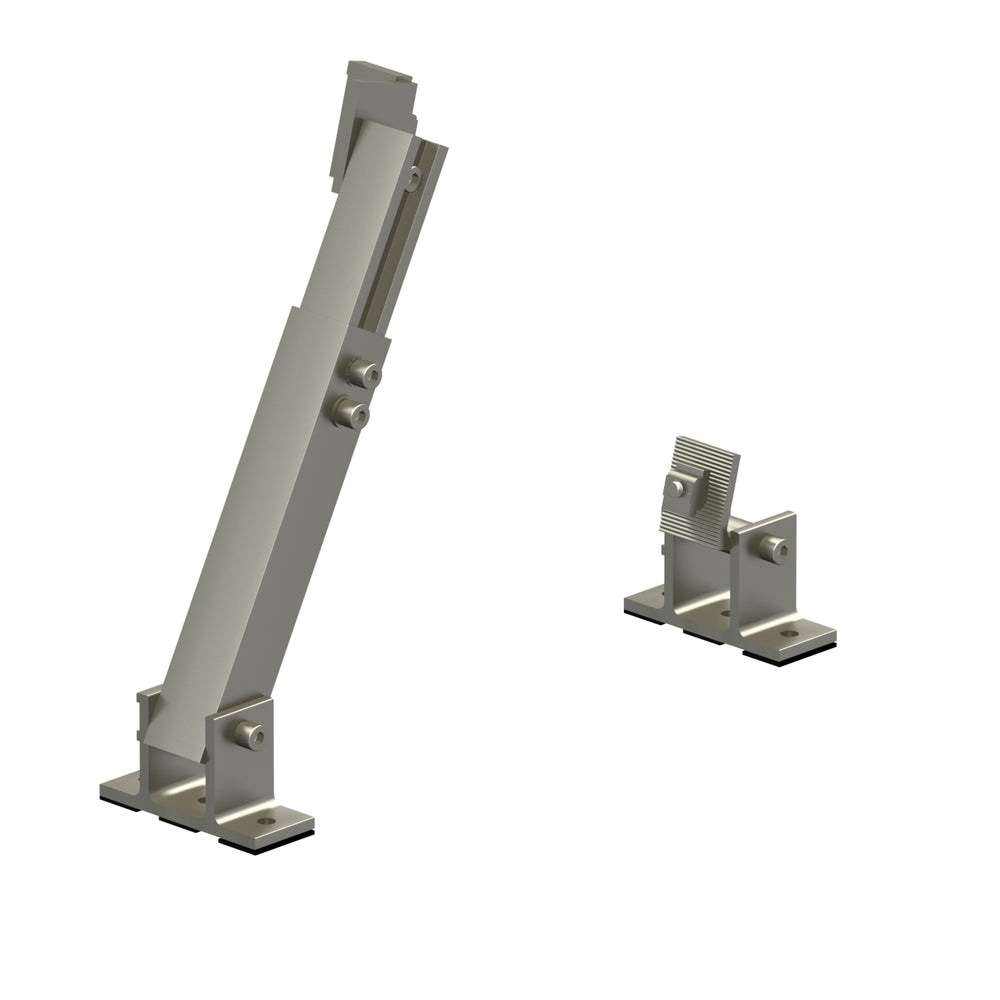

The Clenergy PV-ezRack ER-TL-10/15 is a non-preassembled adjustable tilt-leg set for installing PV modules between 10° and 15° on compatible SolarRoof systems.
- Adjustable 10° to 15° module tilt
- Rear leg adjusts from 260 to 375 mm
- Supplied as a non-preassembled tilt-leg set
- Includes two Buildex 14-11 × 70 hex-head Zips screws
- Earthing-compatible assembly
| Part number | ER-TL-10/15 |
| Tilt range | 10° to 15° |
| Rear-leg adjustment | 260 to 375 mm |
| Assembly | Non-preassembled |
| Materials | AL6005-T5 aluminium; SUS304 fasteners |
| Finish | Silver, half-anodised, minimum 10 μm |
| Weight | 1.056 kg |
| Packaging | 5 per pack; 4 packs (20 units) per carton |
| Earthing | Yes |
| Standard | AS/NZS 1170.2:2011 |
