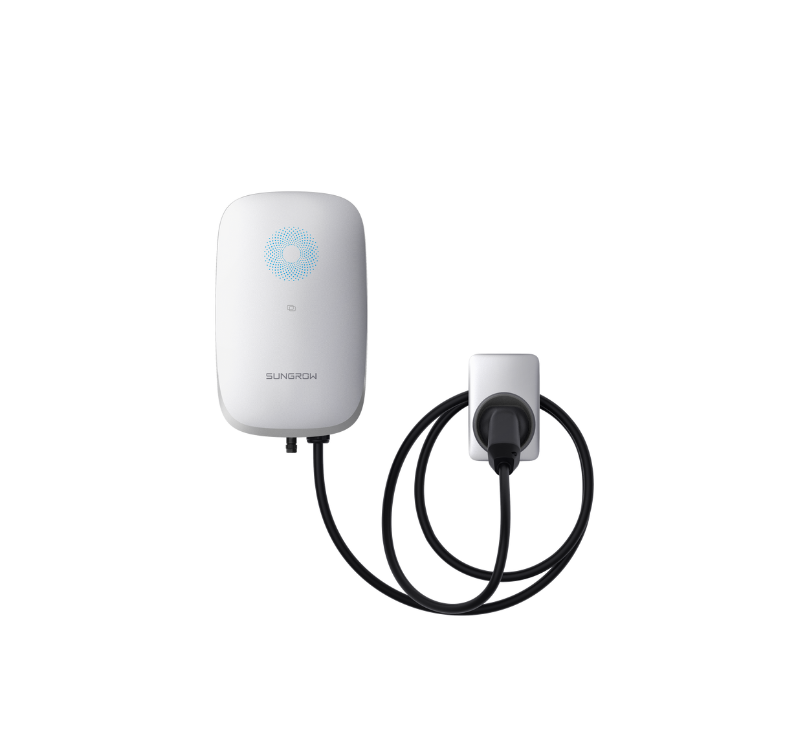

22 kW AC Charger for Electric Vehicles, ( work on both single & three phases)
22 kW AC Charger for Electric Vehicles, ( work on both single & three phases)

22 kW AC Charger for Electric Vehicles, ( work on both single & three phases)

SKU SUNGROW-AC22E-01
Call for availability
  • Description
  • Key Features
  • Technical Specifications

The Sungrow AC22E is a smart AC electric vehicle charger designed for reliable, safe, and flexible EV charging in residential and commercial environments. With configurable charging power up to 22 kW, integrated DC fault current detection, and advanced load management, it delivers efficient charging while protecting the electrical installation. Seamless connectivity, multiple authentication options, and compatibility with Sungrow hybrid systems make the AC22E a future-ready EV charging solution.

AC22E Data Sheet

  • Configurable AC charging power up to 22 kW

  • Integrated 6 mA DC fault current detection for enhanced safety

  • IP65-rated enclosure suitable for indoor and outdoor installation

  • Supports load management and balancing to prevent overload

  • Multiple charging modes including eco, fast, scheduled, and customised charging

  • Smart monitoring and control via app

  • OCPP 1.6J communication for backend integration

  • Optional MID-certified energy meter for accurate energy measurement

  • Type 2 charging connector with 5 m or 7 m cable options

Specification Value
Product Type AC EV Charger
Model AC22E
Grid Voltage 3 / N / PE, 230 V / 400 V
Nominal Grid Frequency 50 / 60 Hz
Earthing System TT / TN
Max. Input Current 32 A
Standby Power Consumption < 6.5 W
Max. Charging Power 22 kW or 11 kW (3-phase, configurable); 7.4 kW (1-phase)
Max. Charging Voltage 230 V / 400 V
Max. Charging Current 32 A / 16 A (configurable)
Fault Current Detection DC 6 mA (integrated)
Residual Current Protection External RCBO required (Type A or Type B)
Charging Connector Type 2
Charging Cable Length 5 m / 7 m (optional)
Display LED indicator and app
Authentication Plug & Play, RFID card, app
Firmware Update Over-the-air (OTA)
Energy Metering MID-certified meter (optional)
Communication Interfaces RS485, WLAN, Ethernet, 4G
Communication Protocol OCPP 1.6J
Enclosure Rating IP65
Mechanical Impact Protection IK10
Operating Temperature Range −30 °C to +50 °C
Relative Humidity 5% – 95% (non-condensing)
Max. Operating Altitude 3000 m
Cooling Method Natural convection
Dimensions (W × H × D) 214 × 346 × 125 mm
Weight < 6.65 kg
Installation Method Wall-mount (standard); stand column (optional)
Compliance CE, CB, UKCA, RCM, EN IEC 61851 series
