Black Anodised End Clamp = clamp + Z-Module + bolt (35mm)
SKU ER-EC-ST35B
Call for availability
- Description

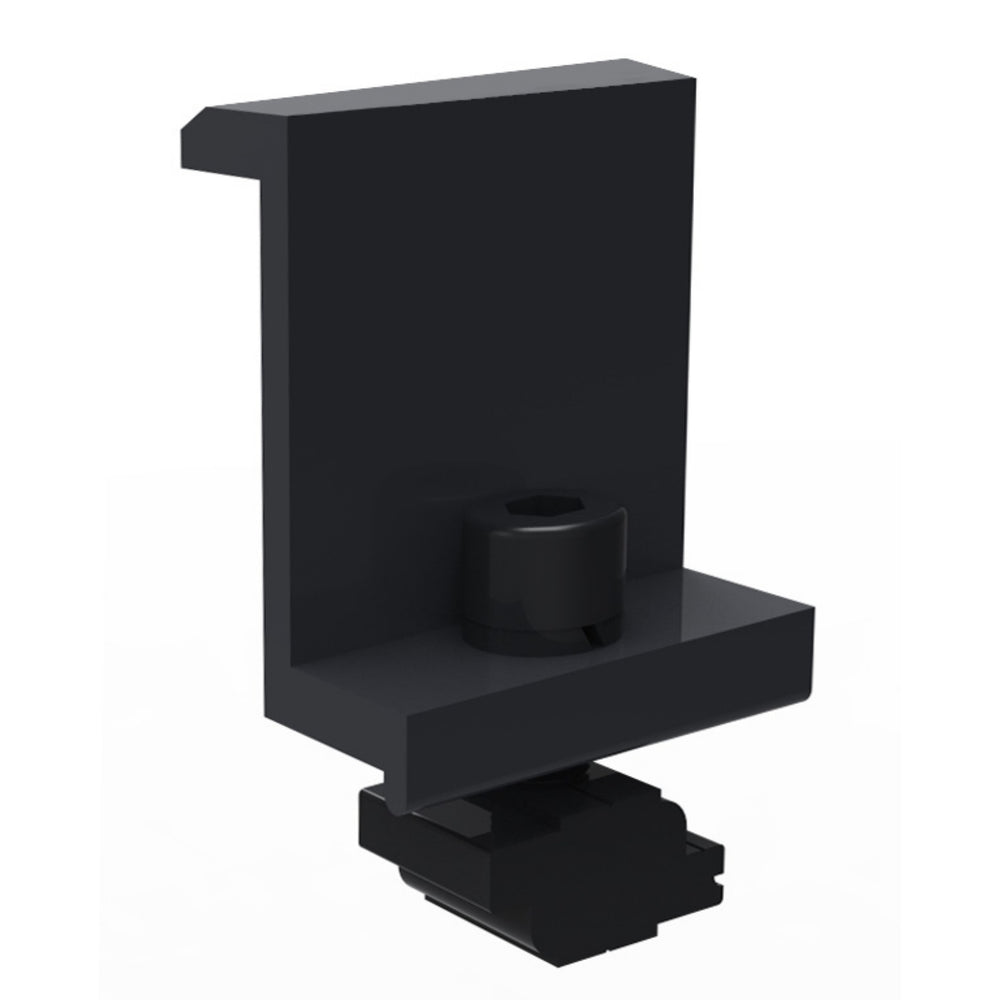

The Clenergy PV-ezRack ER-EC-ST35B is a black-anodised standard end clamp for securing framed PV modules to compatible ECO-Rail and T-Rail systems.
View the current Clenergy standard clamp datasheet download
Key Features
- Suitable for 35–37 mm framed PV modules on ECO-Rail or T-Rail
- Black-anodised finish
- AL6005-T5 aluminium body with SUS304 stainless steel fasteners
- Recommended tightening torque of 16–20 N·m
Technical Specifications
| Part number | ER-EC-ST35B |
| Product type | Standard end clamp |
| Module frame range | 35–37 mm |
| Required rail-side clearance | 20 mm |
| Weight | 0.054 kg |
| Main material | AL6005-T5 aluminium |
| Fasteners | SUS304 stainless steel |
| Finish | Black anodised, minimum 10 μm |
| Recommended torque | 16–20 N·m |
| Packaging | 100 per pack; 400 per carton |
| Standard | AS/NZS 1170.2:2011 |
