Double Tripod 30 degree Base Support 3000mm
SKU ER-S-TRI30-D3000
Call for availability
- Description

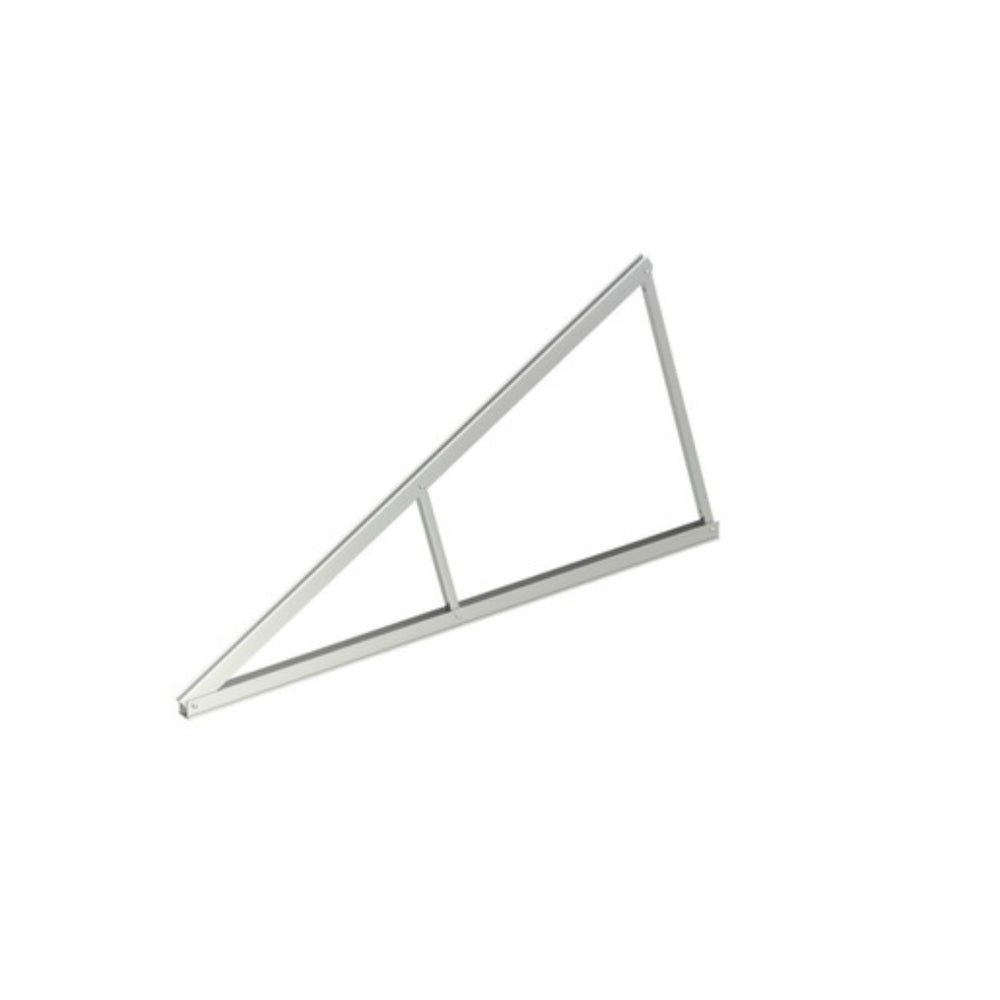

The Clenergy PV-ezRack ER-S-TRI30-D3000 is a 30° double SolarTripod support with a 3000 mm base for compatible PV module mounting installations.
Download the Clenergy SolarTripod installation guide
Key Features
- Fixed 30° double-tripod support
- 3000 mm base and upper support
- Purpose-built for the Clenergy PV-ezRack SolarTripod system
- Aluminium structural components with supplied mounting hardware
Technical Specifications
| Part number | ER-S-TRI30-D3000 |
| Support type | Double tripod |
| Tilt angle | 30° |
| Base support | 70 × 3000 mm |
| Upper support | 75 × 3000 mm |
| Aluminium tubes | 35.5 × 35.5 × 801 mm and 35.5 × 35.5 × 1562 mm |
| Bushing | Ø18.5 × 35.5 mm |
| Primary fastener | M10 × 65 socket cap screw |
