Hinge Assembly - Includes LH & RH Hinges/Pins/Tracks/Springs
Hinge Assembly - Includes LH & RH Hinges/Pins/Tracks/Springs

Hinge Assembly - Includes LH & RH Hinges/Pins/Tracks/Springs

SKU SFP682S
In stock: 44
  • Description
  • Key Features
  • Model Info

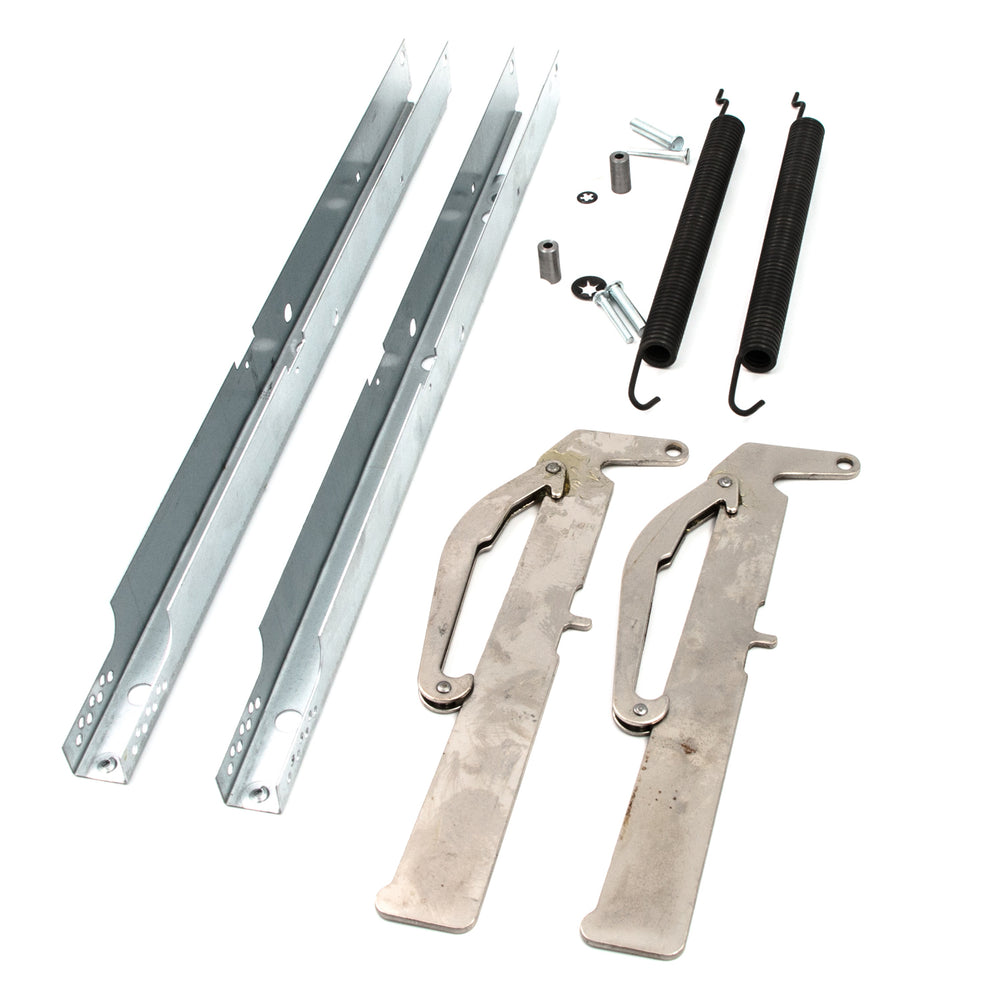

The SFP682S is a complete oven door hinge service assembly for selected Fisher & Paykel, ELBA and older Shacklock freestanding ranges. The kit includes the main hinge components required to service both sides of the oven door.

  • Includes left- and right-hand hinges
  • Includes hinge pin kit
  • Includes hinge tracks
  • Includes door springs
  • Complete service option for selected older Fisher & Paykel, ELBA and Shacklock ranges

Cross-reference / related service part numbers: 577415, 471009P, 573476, 471043P, 471150P.

Fisher & Paykel parts information identifies these references across the hinge assembly, including hinge tracks, hinge slide arms, hinge pins/rollers and door springs.

Common applications include: RA6102 and RA6103 ranges; Saffron, Pepper, Oregano, Sage, Paprika, Tamarind, Thyme, Cinnamon and Coriander models; selected ELBA OR61 series; RA535 series; and older Shacklock/Fisher & Paykel ranges.

Selected OR61 / RA references: OR61S2CEWW2, OR61S2CEWW3, OR61S2CEWW4, OR61S4CEWW2, OR61S4CEWW3, OR61S4CEWW4, OR61S8CEWSW1, OR61S8CEWSW2, OR61S8CEWSW3, OR61S8CEWSW4, RA6102AW, RA6102B, RA6102MAW, RA6102MEDS, RA6102MEWC, RA6102AWC, RA6102BC, RA6102MAWS, RA6102MEW, RA6102MEWS, RA6103AW, RA6103AWC, RA6103AWP, RA6103B, RA6103BC, RA6103FAW, RA6103MAW, RA6103MAWS, RA6103MEDS, RA6103MEW, RA6103MEWC, RA6103MEWS.

Selected product codes: 85464-A, 85463-A, 85465-A, 85262-A/B, 85261-A/B, 85260-A/B, 89185-A, 89186-A, 89187-A, 80550-A, 80551-A, 80552-A, 80553-A, 80554-A, 80555-A, 80743-A, 80744-A, 80745-A, 80510-A, 80511-A, 80512-A, 80513-A, 80514-A, 80515-A, 80516-A, 80517-A, 80518-A, 80519-A.

Other legacy model references: 610MTDS, 610MTWS, 661TW, 662XD, 663TWS, 664XDS, M6106ADR, M6106AWR, M6106ADS, M6106AWS, M6106EWS, M6106EDS, M6106EDR, M6106EWR, 651MAW, 652AD, 653AWS, 654ADS, 655EW, 656ED, 657EWS, 658EDS, 6106TR, 6106WAR, 640H, 641WA, 643MWA, M570A, M570AD, M570E, TM570, TM570D, TM620, TM620D, TCM570, TCM620, WO570T, WO570TC, WO570TD, WO570X, WO570XD, XM570, XM570D, XM570X, 751E, 752A, 754AD, 755T, 757TD, 758TC, 761X, 763XD and 767XX.

Compatibility check: Use the appliance model and existing hinge arrangement to confirm suitability before ordering.
