PGK 4P WP Enclosure IP65
- Description
- Key Features
- Technical Specifications

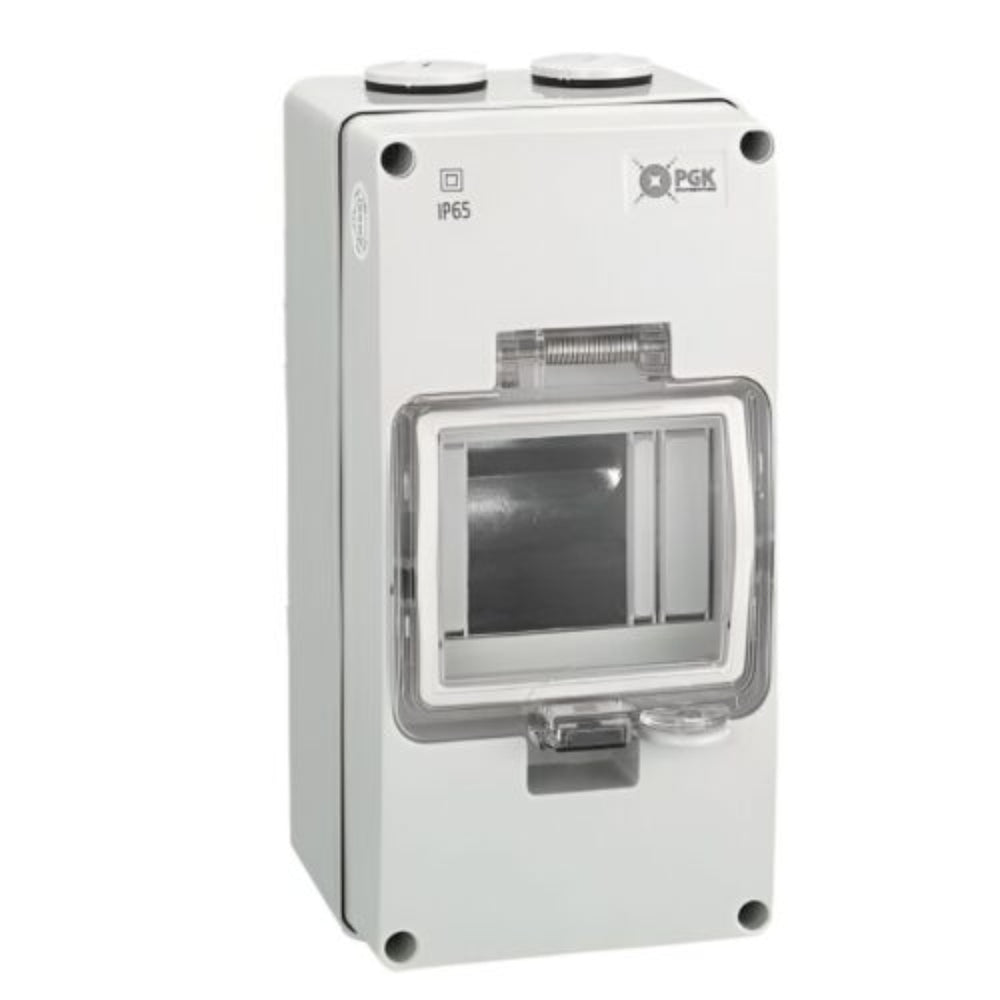

This 4-Pole Weatherproof Circuit Breaker Enclosure is an outdoor-grade, rugged housing designed to protect up to four miniature circuit breakers. With IP65/IP66 rated protection, UV-stabilised polycarbonate construction, and versatile DIN-rail mounting, this enclosure is perfect for solar installations, switchboards, or any electrical system requiring durable protection from weather and dust.
-
IP65/IP66 weatherproof rating — protects internal components from dust and water.
-
Four-pole layout to house up to 4 breakers or circuits.
-
DIN-rail mounting inside enclosure for secure installation of breakers.
-
Constructed of UV-resistant polycarbonate, with a grey finish suited for outdoor exposure.
-
Gland entries (4 × M25) for cable entry and clean installation.
-
Padlockable lid and screw caps to maintain IP rating; robust screws included.
| Specification | Value |
|---|---|
| Model / SKU | ENCLOSURE4PWP / PGK SE008A |
| Poles | 4-pole layout for circuit breakers |
| Protection Rating (Ingress) | IP65 / IP66 (weatherproof) |
| Material | UV-resistant polycarbonate; grey colour |
| Mounting Method | DIN-rail inside; surface mount enclosure |
| Gland / Cable Entry | 4 × M25 glands for cable entry |
| Dimensions (L × W × H) | ~ 205 × 99.5 × 110 mm (for the enclosure body) |
| Colour | Grey |
| Weight | ~ 0.70 kg packaging weight |
| Warranty | 5 years (domestic & commercial) from install |
