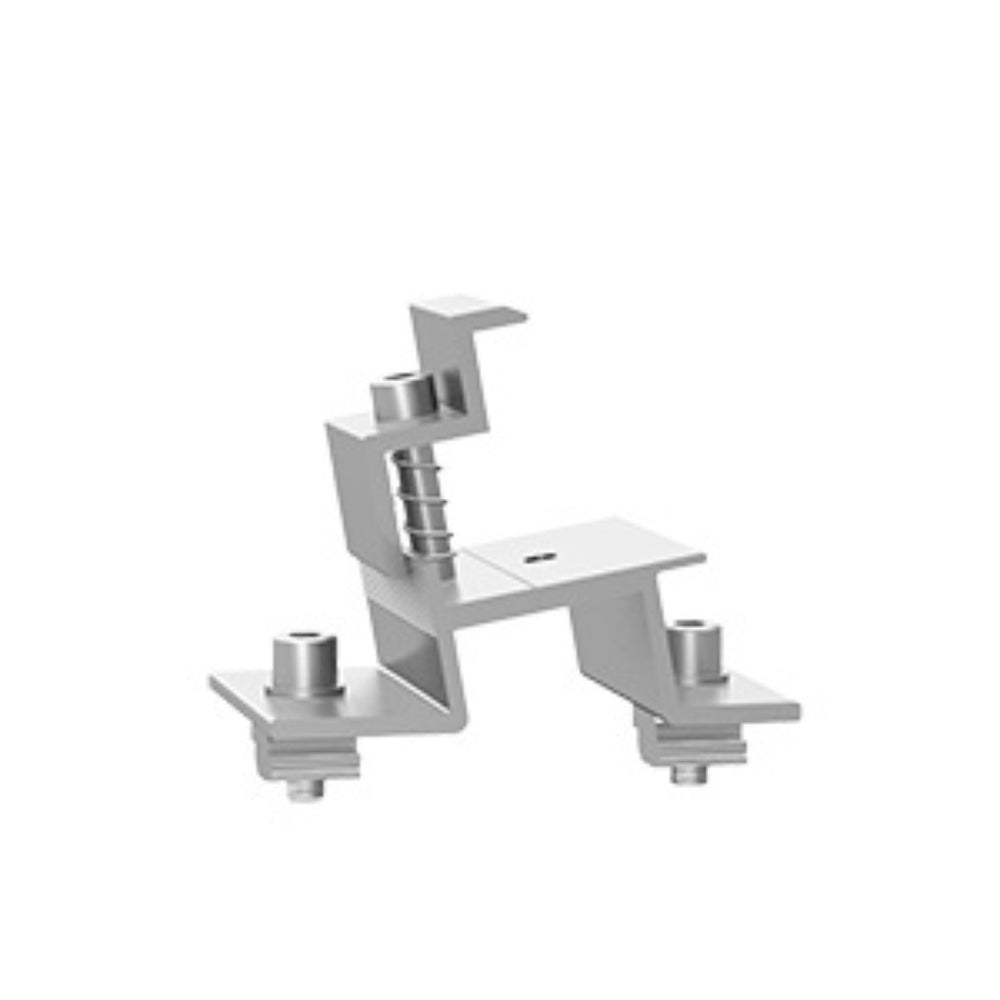

PV-ezRack ComT, Front Leg Assembly, 15°, with Z-Module and Grounding Pins
SKU FL-COMT/Z/G/15
In stock: 9
- Description
- Key Features
- Technical Specifications
The Clenergy PV-ezRack FL-COMT/Z/G/15 is a 15° front-leg assembly for the ComT 2.0 system. It includes a Z-module and grounding pins for connection to compatible T50/110 rails or top channel B50.
Download the Clenergy ComT 15° front and rear legs data sheet
- 15° front-leg assembly for PV-ezRack ComT 2.0
- Supplied with Z-module and grounding pins
- Connects to compatible T50/110 rails or top channel B50
- Suitable for compatible trapezoidal, corrugated metal and flat-roof installations
| Part number | FL-COMT/Z/G/15 |
| Product type | ComT front-leg assembly |
| Tilt angle | 15° |
| Compatible rail/channel | T50/110 rail or top channel B50 |
| Maximum PV module dimensions | 2400 × 1200 mm |
| Material | AL6005-T5 aluminium |
| Finish | Silver anodised, minimum 10 μm excluding machined surfaces |
| Weight | 0.146 kg |
| Packaging | 30 per pack; 4 packs (120 units) per carton |
