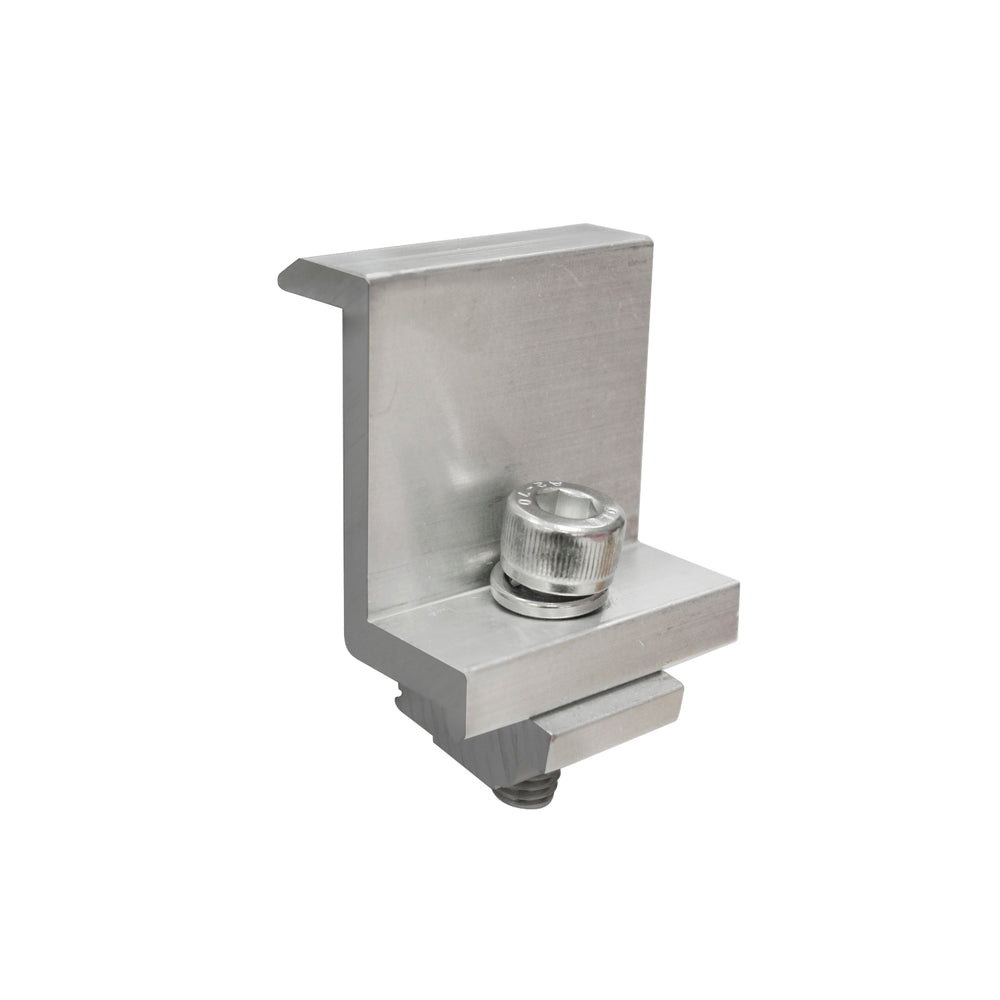

PV-ezRack End Clamp, Standard 40mm
PV-ezRack End Clamp, Standard 40mm

PV-ezRack End Clamp, Standard 40mm

SKU ER-EC-ST40
Call for availability
  • Description
  • Key Features
  • Technical Specifications

The Clenergy PV-ezRack ER-EC-ST40 is a standard end clamp for framed PV modules 40–42 mm high when used with Clenergy ECO-Rail or T-Rail.

Clenergy Standard Inter and End Clamp Data Sheet

  • 40 mm end clamp: Suitable for framed PV modules 40–42 mm high with ECO-Rail or T-Rail.
  • Recommended torque: 16–20 N·m.
  • Silver anodised finish: Anodised to no less than 10 μm.
Specification Details
Part Number ER-EC-ST40
Product Type Standard end clamp
Module Height 40–42 mm with ECO-Rail or T-Rail
Required Rail Space 20 mm on each side of the rail
Recommended Torque 16–20 N·m
Weight 0.057 kg
Main Structure AL6005-T5 aluminium
Fasteners SUS304 stainless steel
Finish Silver anodised, no less than 10 μm
Packaging 100 units per pack; 4 packs (400 units) per carton
